Shift Control Components

WARNING: This page is about a different car, the 2003 Nissan Altima and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

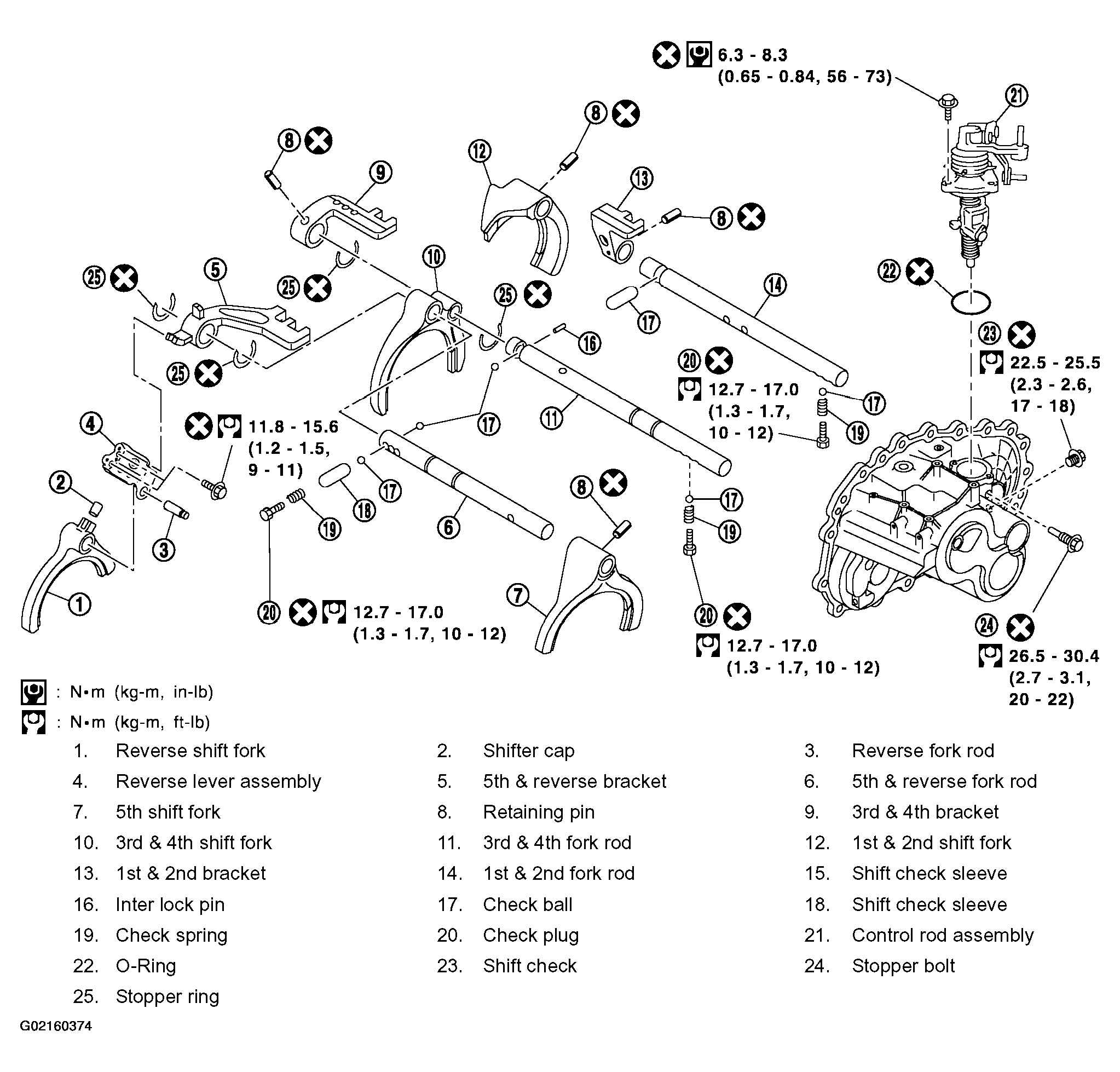

Fig 1: Exploded View Of Shift Control Components And Torque Specifications
G02160374Courtesy of NISSAN MOTOR CO., U.S.A.
