Cross-sectional View: Notes

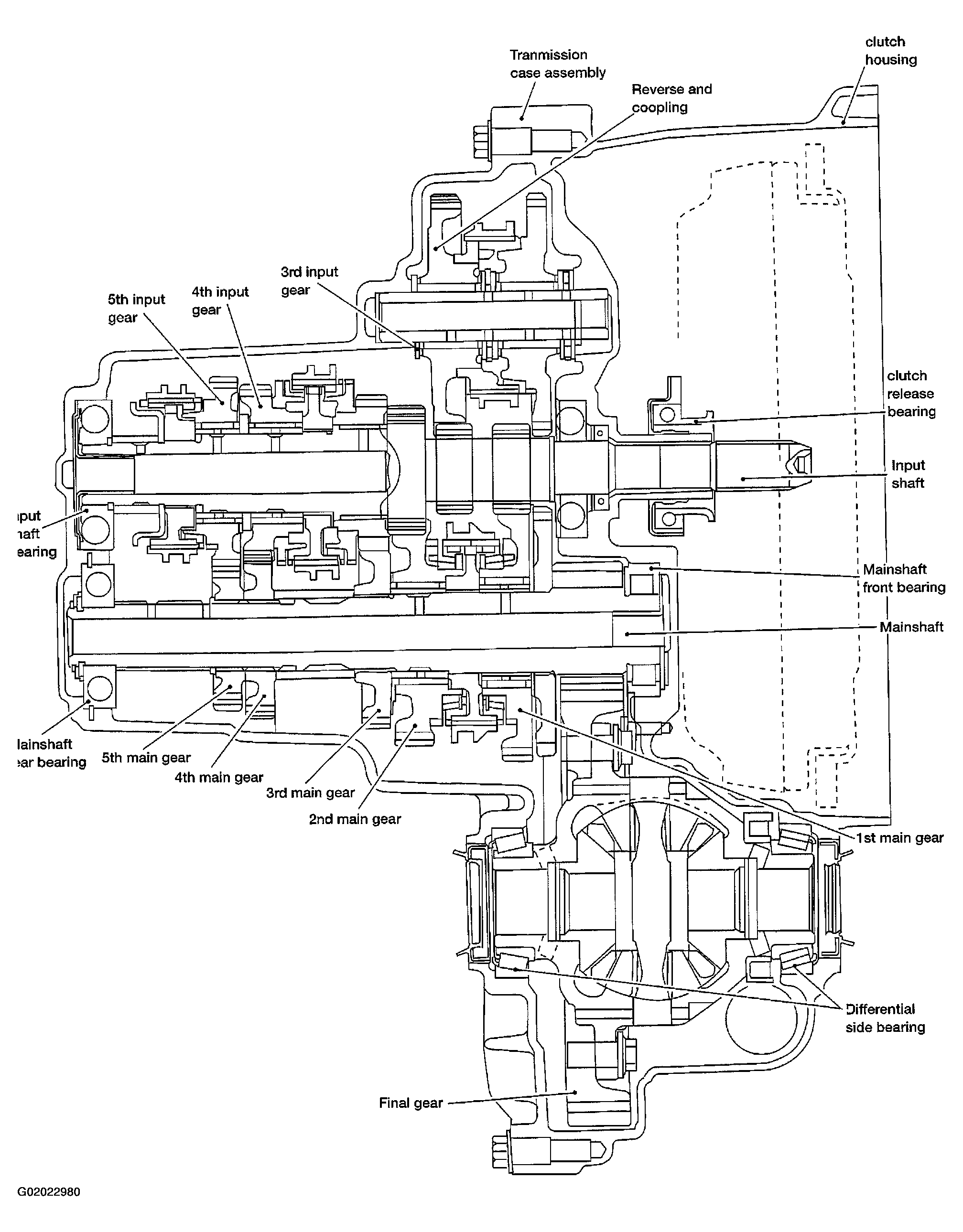

Fig 1: Cross-Sectional View RS5F51A Manual Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
