Shift Fork

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

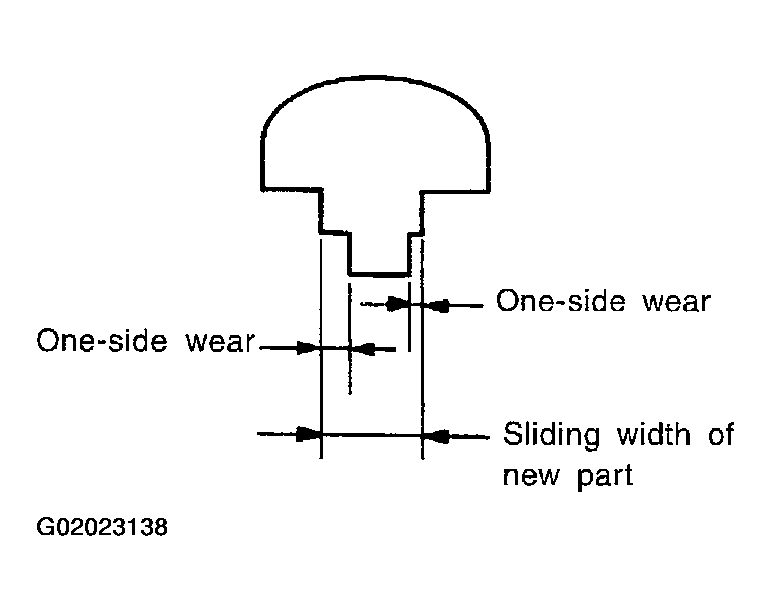

Fig 1: Checking Shift Fork For Side Wear
Courtesy of NISSAN MOTOR CO., U.S.A.

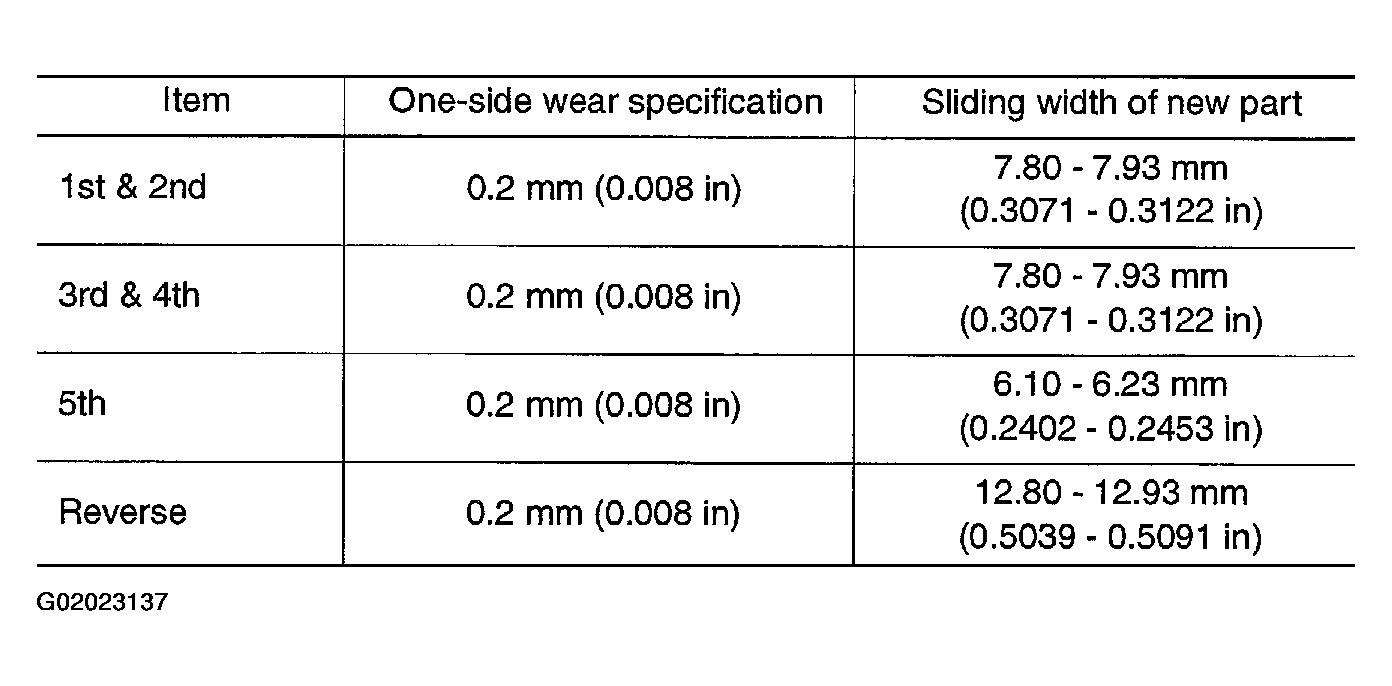

Fig 2: Identifying Shift Fork Wear Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
