Case And Housing Components

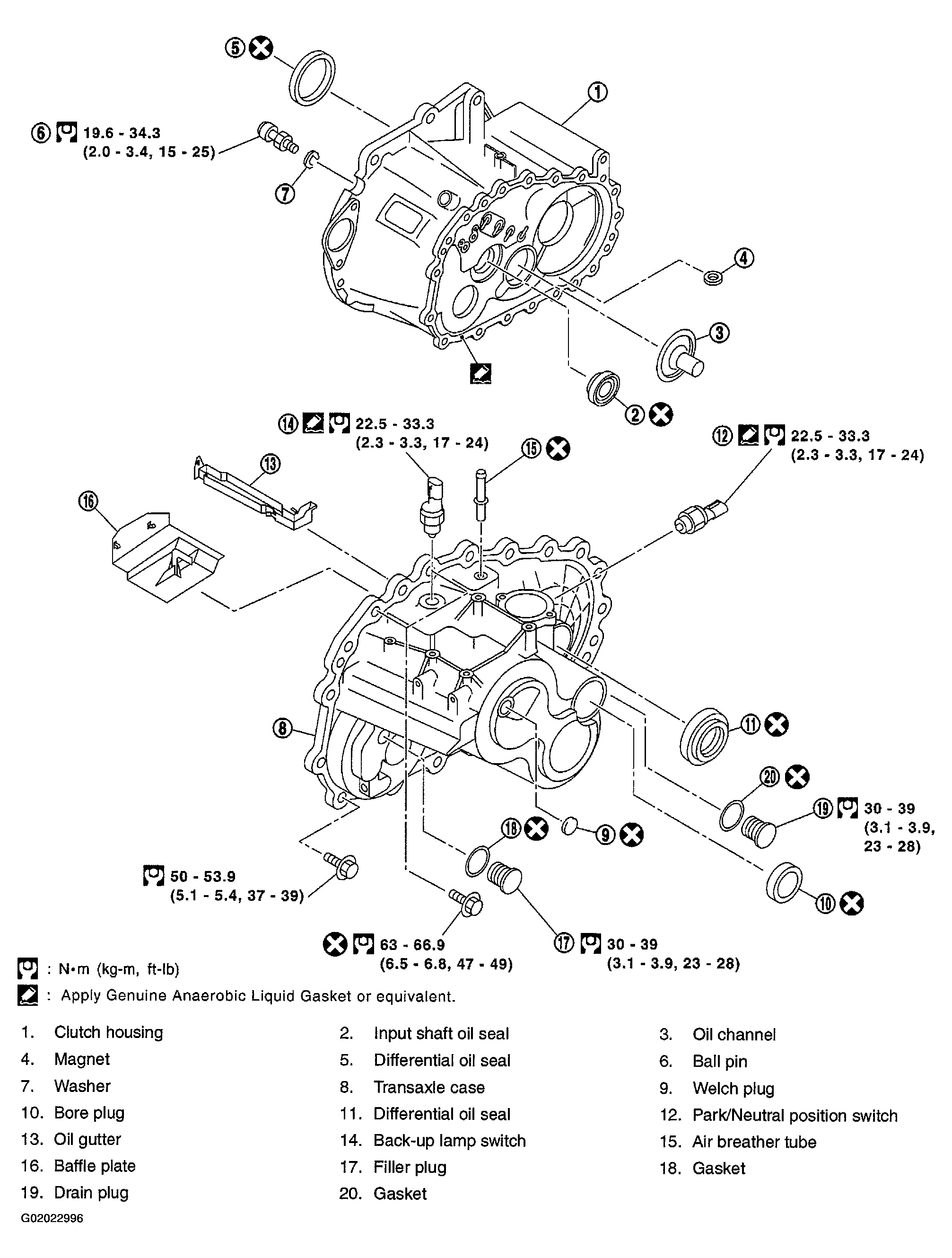

Fig 1: Transaxle RS5F51A Case, Housing Replacement Components With Torque Specifications
G02022996Courtesy of NISSAN MOTOR CO., U.S.A.
