Final Drive Components

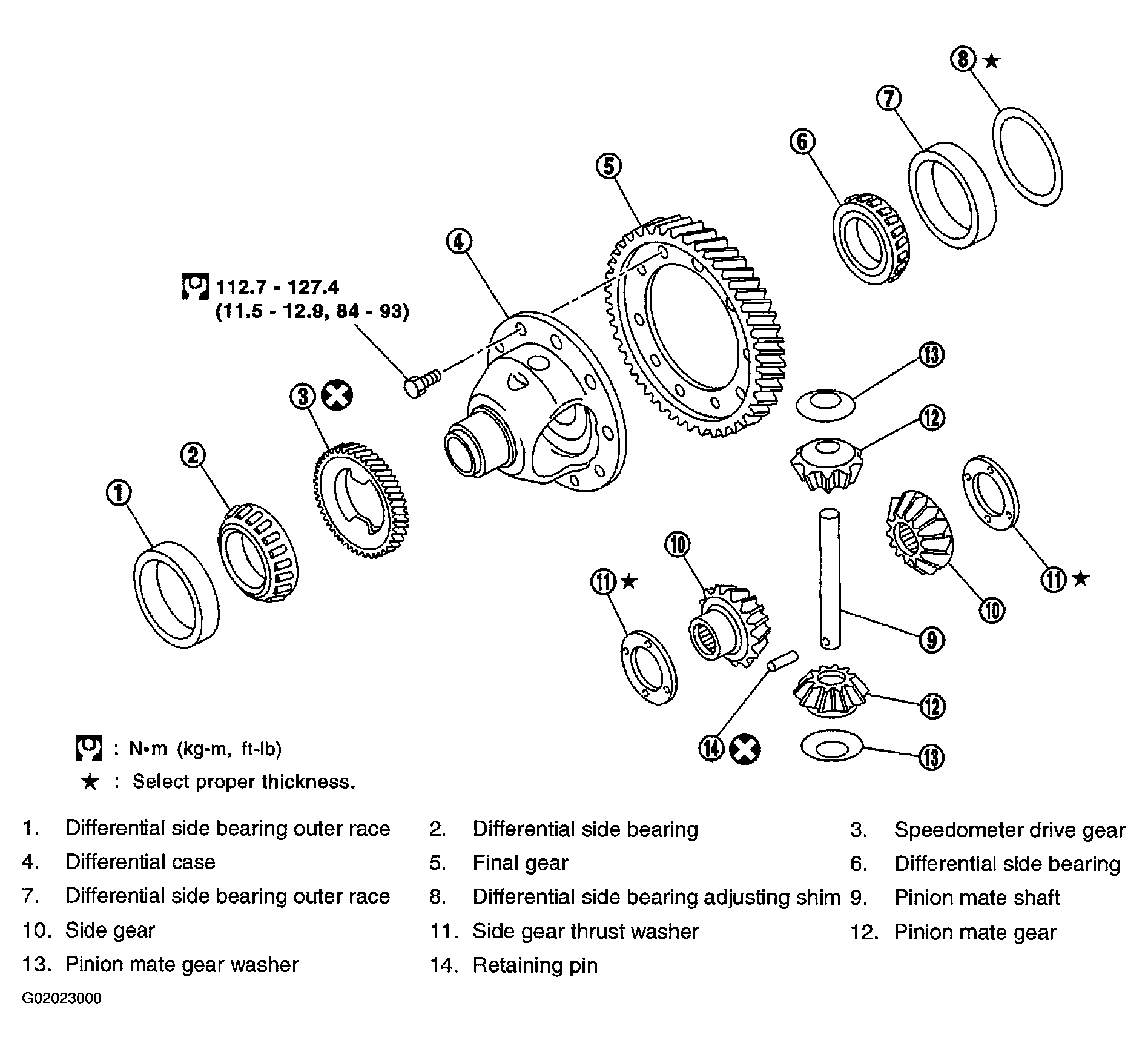

Fig 1: Identifying Transaxle Assembly Final Drive Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
