DTC P0452: EVAP Control System Pressure Sensor Low Input

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic and component testing procedures, see Fig 1 -Fig 7 .

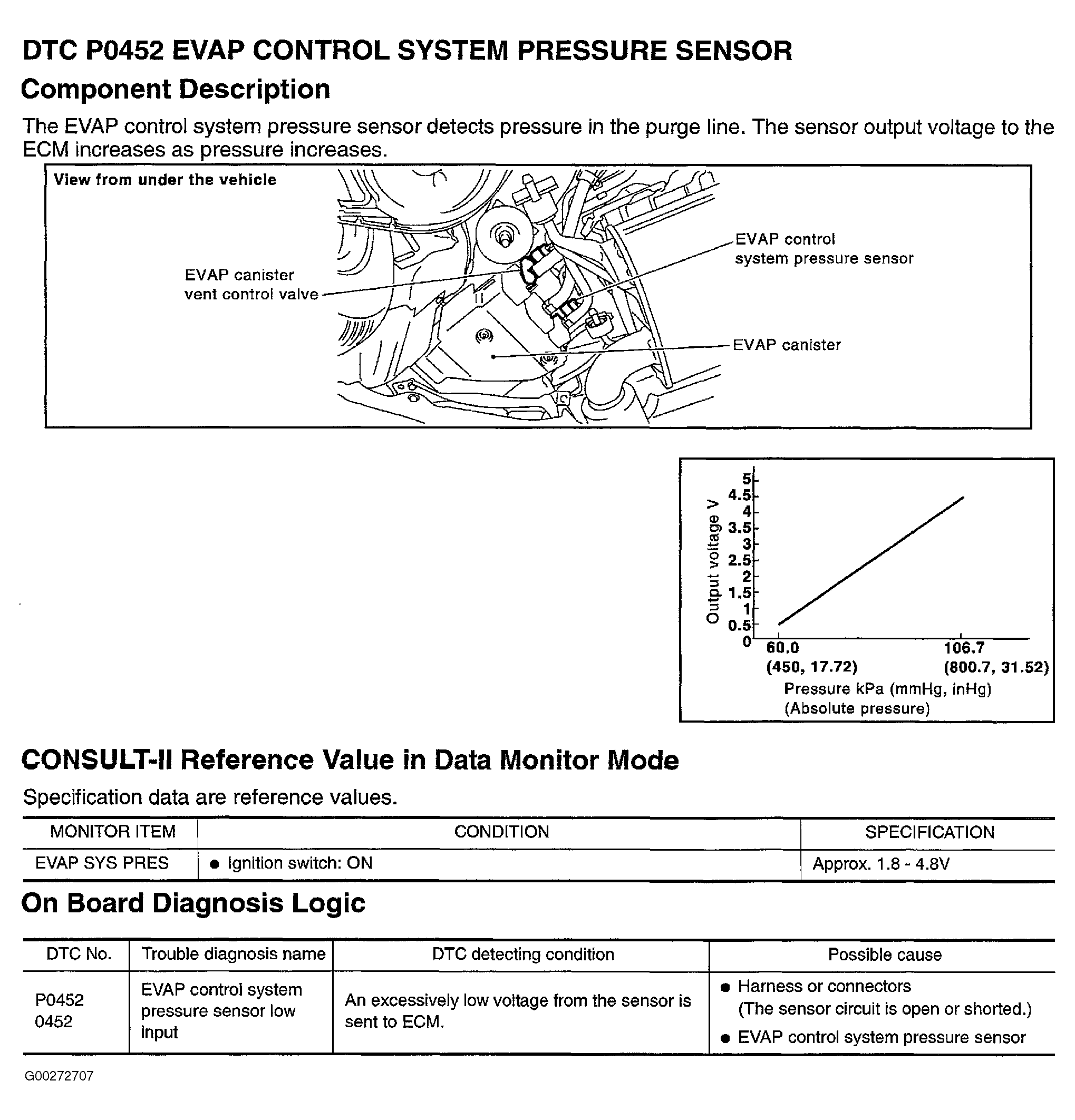

Fig 1: DTC P0452 (1 Of 6)

G00272707

Courtesy of NISSAN MOTOR CO., U.S.A.

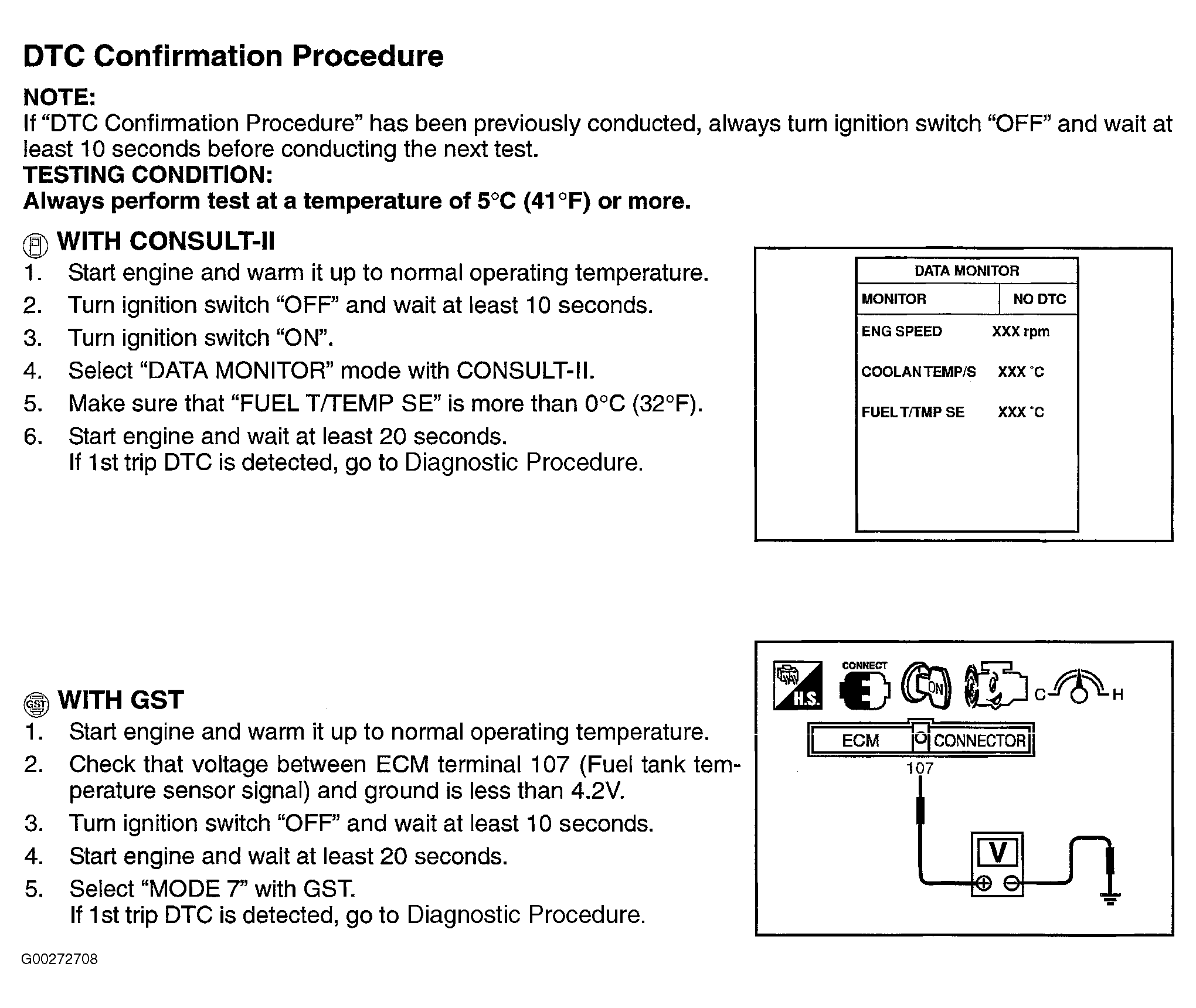

Fig 2: DTC P0452 (2 Of 6)

G00272708

Courtesy of NISSAN MOTOR CO., U.S.A.

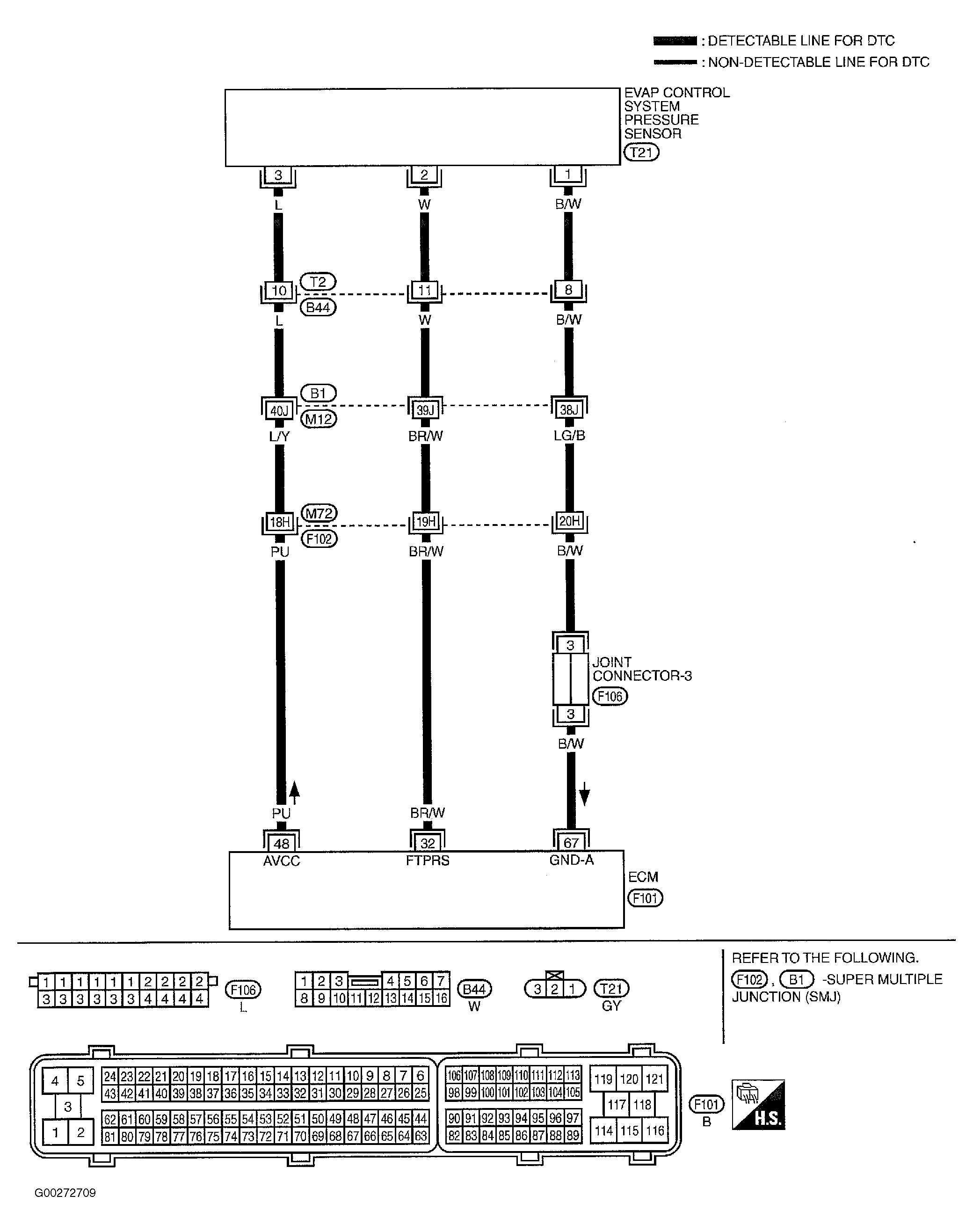

Fig 3: DTC P0452 (3 Of 6)

G00272709

Courtesy of NISSAN MOTOR CO., U.S.A.

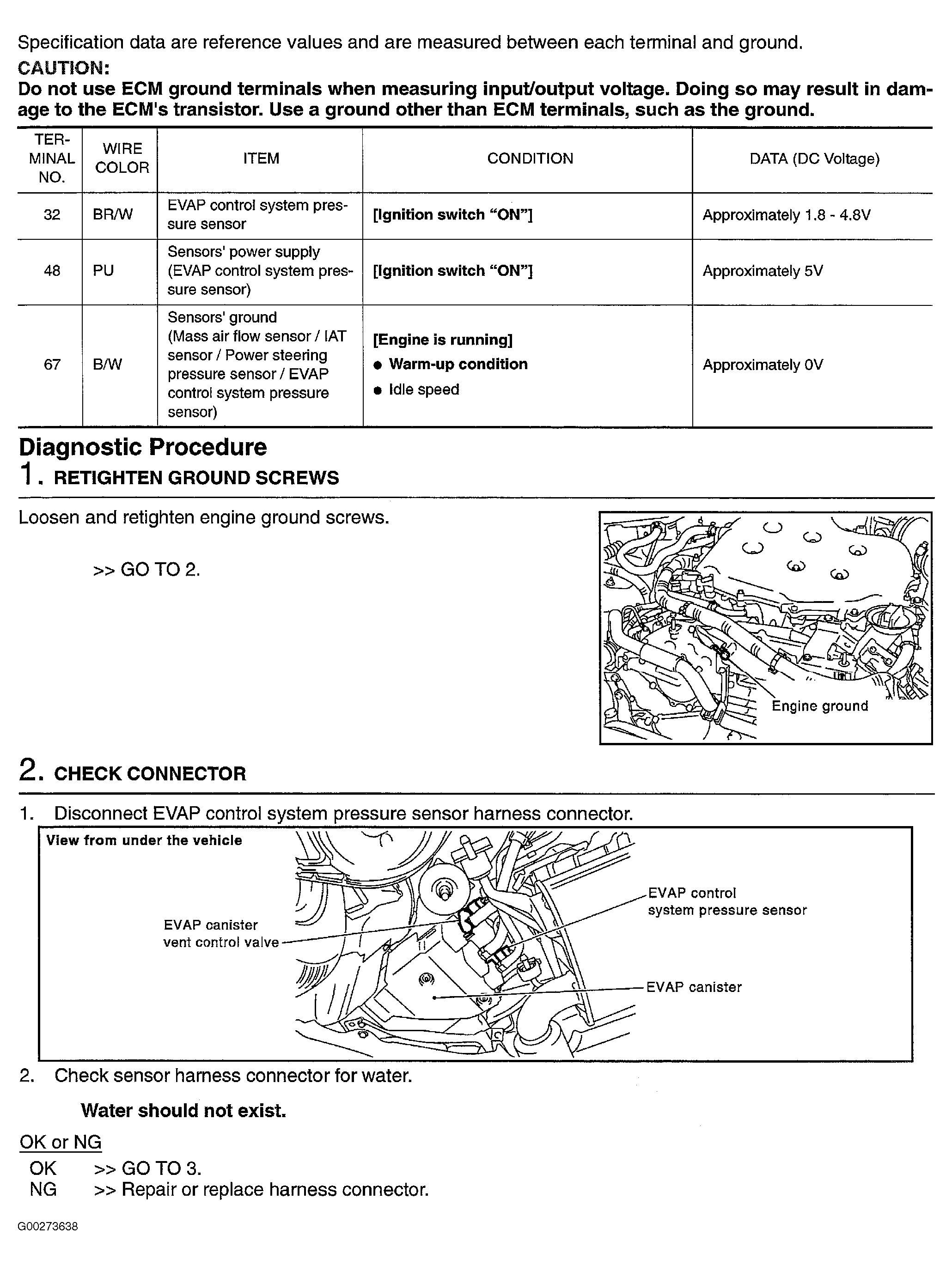

Fig 4: DTC P0452 (4 Of 6)

G00273638

Courtesy of NISSAN MOTOR CO., U.S.A.

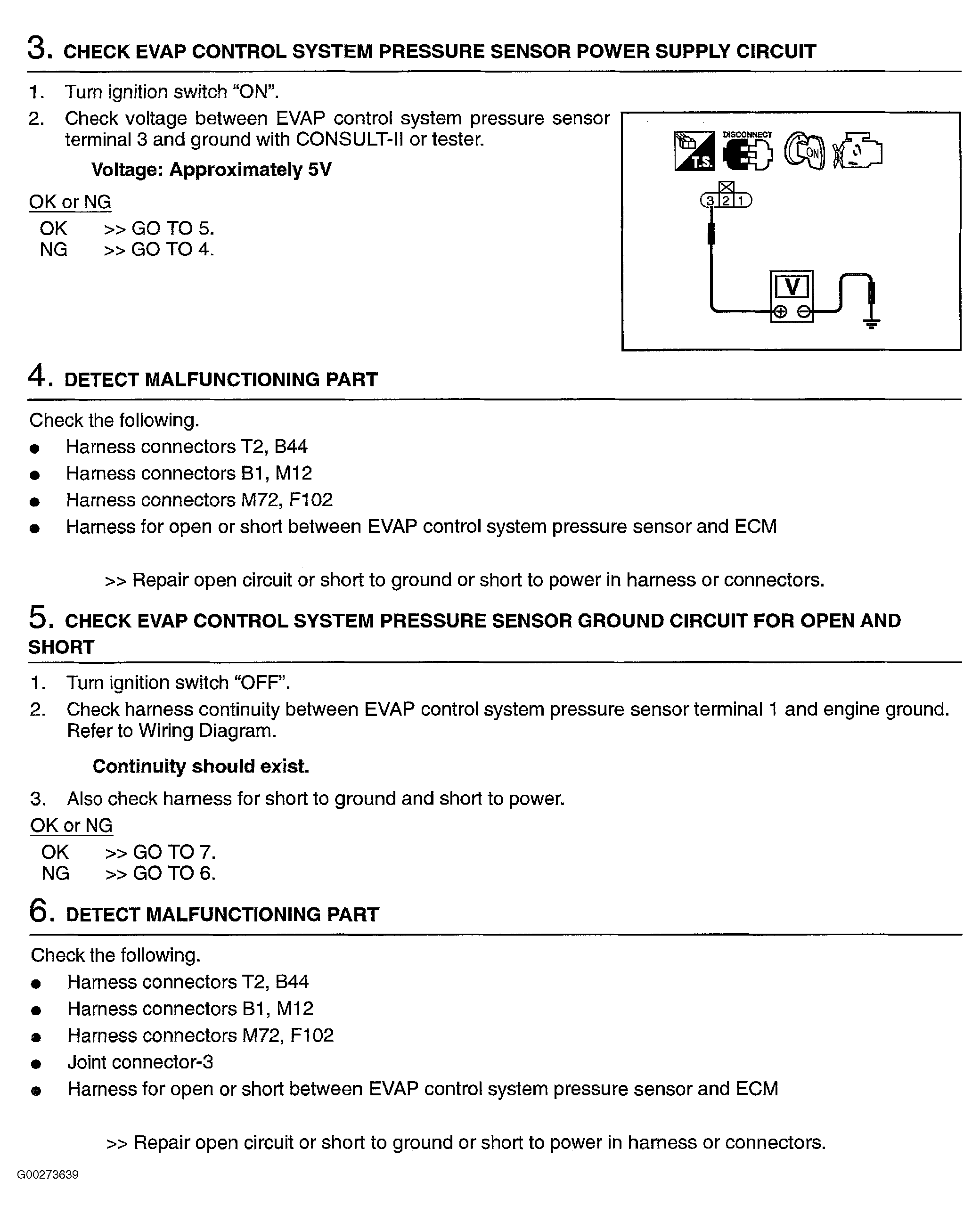

Fig 5: DTC P0452 (5 Of 6)

G00273639

Courtesy of NISSAN MOTOR CO., U.S.A.

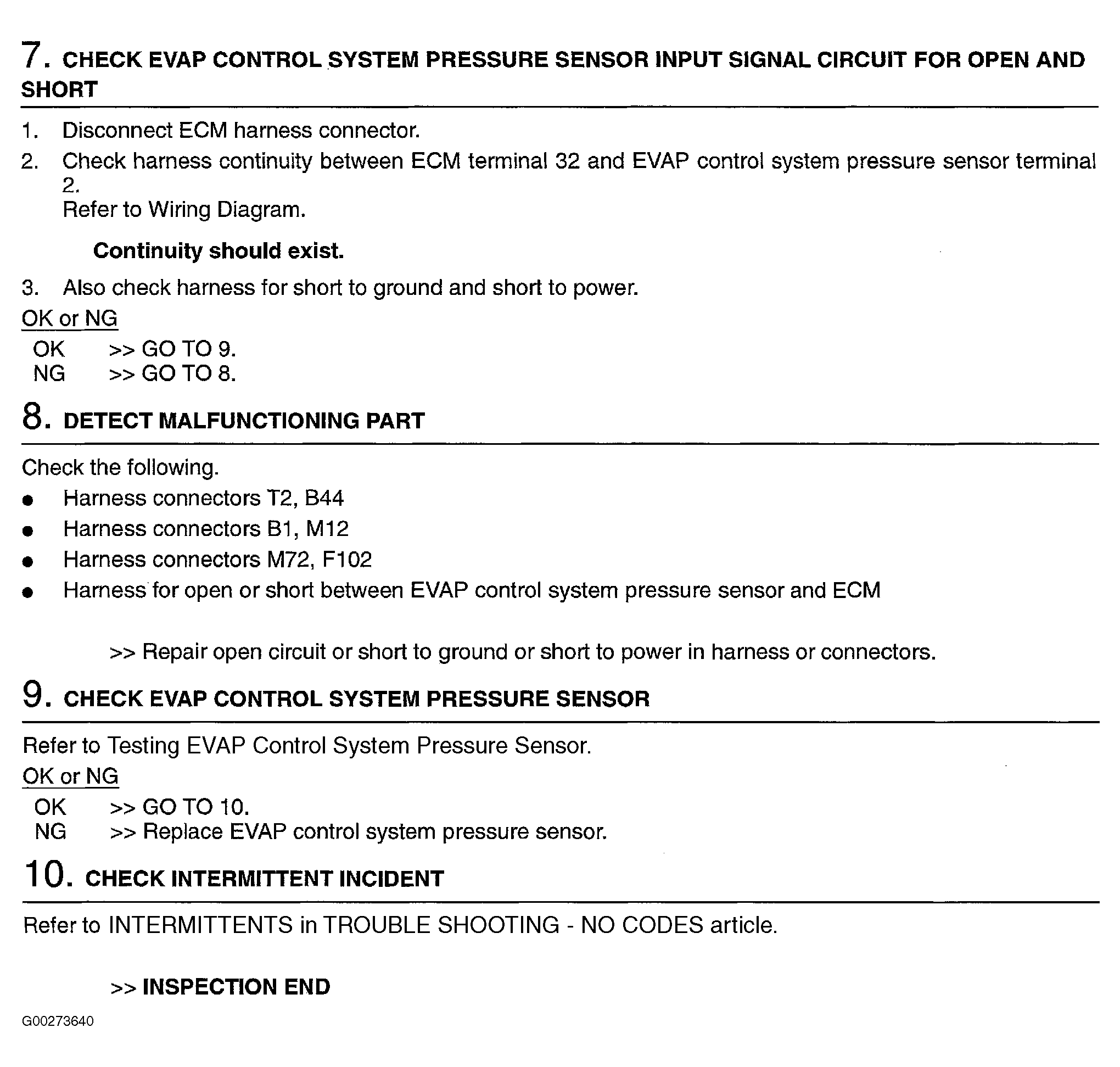

Fig 6: DTC P0452 (6 Of 6)

G00273640

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Testing EVAP Control System Pressure Sensor

G00259902

Courtesy of NISSAN MOTOR CO., U.S.A.
