Engine Compartment Harness

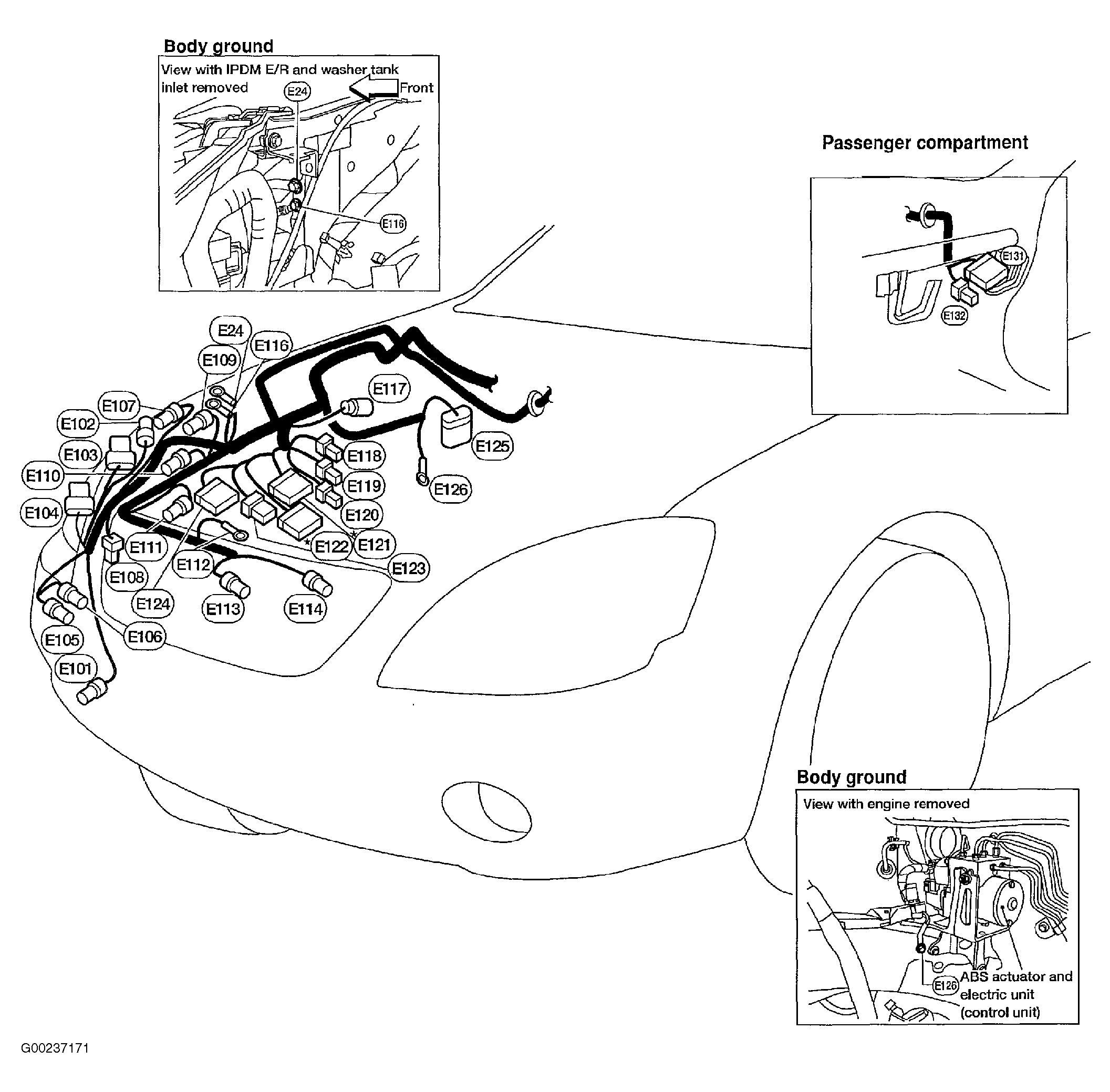

Fig 1: Identifying Engine Compartment Harness Routing (Right Side)
G00237171Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE COMPARTMENT HARNESS CONNECTOR IDENTIFICATION

Connector Name (1) Color Number Of Pins Description
E24 ..... ..... Body Ground
E101 Brown 2 Right Front Fog Lamp
E102 Gray 4 Daytime Light Control Unit (For Canada)
E103 Gray 6 Daytime Light Control Unit (For Canada)
E104 Gray 8 Daytime Light Control Unit (For Canada)
E105 Gray 2 Front Washer Motor
E106 Brown 2 Washer Fluid Level Sensor
E107 Black 2 Right Headlight (Low Beam) (Conventional Type)
E107 Brown 2 Right Headlight (Low Beam) (Xenon Type)
E108 Black 1 Horn (High)
E109 Black 3 Right Combination Lamp
E110 Black 2 Right Headlight (High Beam)
E111 Black 3 Refrigerant Pressure Sensor
E112 ..... ..... Generator (Ground)
E113 Gray 4 Cooling Fan Motor No. 1
E114 Gray 4 Cooling Fan Motor No. 2
E116 ..... ..... Body Ground
E117 Gray 2 Right Front Wheel Sensor
E118 Black 4 Intelligent Power Distribution Module
E119 White 4 Intelligent Power Distribution Module
E120 Black 2 Intelligent Power Distribution Module
E121 White 12 Intelligent Power Distribution Module
E122 Gray 16 Intelligent Power Distribution Module
E123 White 6 Intelligent Power Distribution Module
E124 White 12 Intelligent Power Distribution Module
E125 Black 31 ABS Actuator & Electric Unit (With ABS Or TCS)
E126 ..... ..... Body Ground
E131 White 8 To M67 (With ABS Or TCS)
E132 White 4 To B101 (With ABS Or TCS)
(1) For locations, see Fig 1.
