Overall Function Check

CAUTION: Never use compressed air, doing so may damage the EVAP system. Do not start engine. Do not exceeded 0.6 psi (4.12 kPa).
NOTE: Use this procedure to check the overall function of the EVAP very small leak function. During this check, a 1st trip DTC might not be confirmed.
NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

For overall function check, see Fig 1.

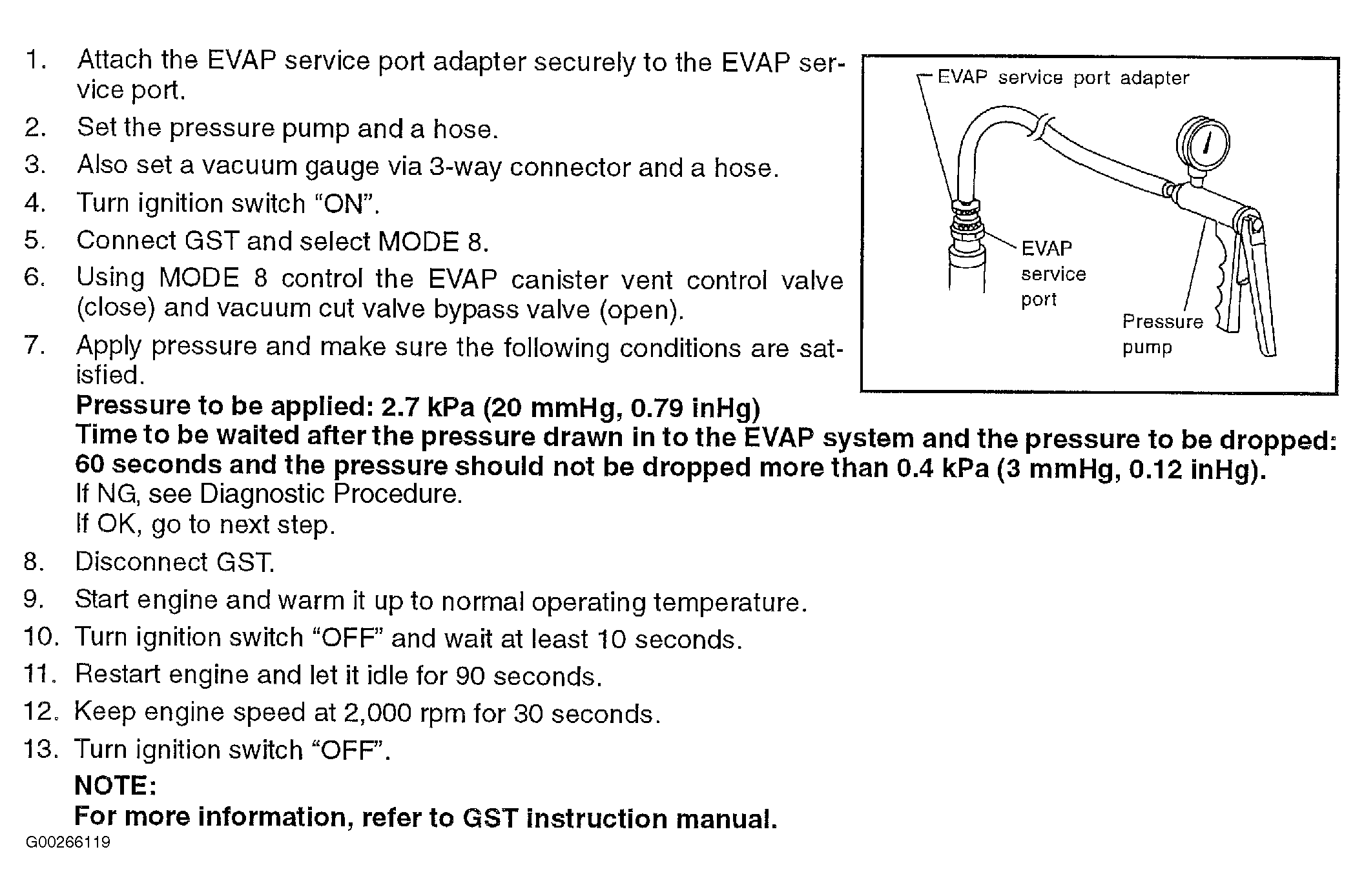

Fig 1: Identifying Overall Function Check For DTC P1456: EVAP Control System
G00266119Courtesy of NISSAN MOTOR CO., U.S.A.
