Setting SRT Codes

To set all SRT codes, self-diagnosis for the items indicated must be performed 1 or more times. Each diagnosis may require a long period of actual driving under various conditions.

1. With Consult-II

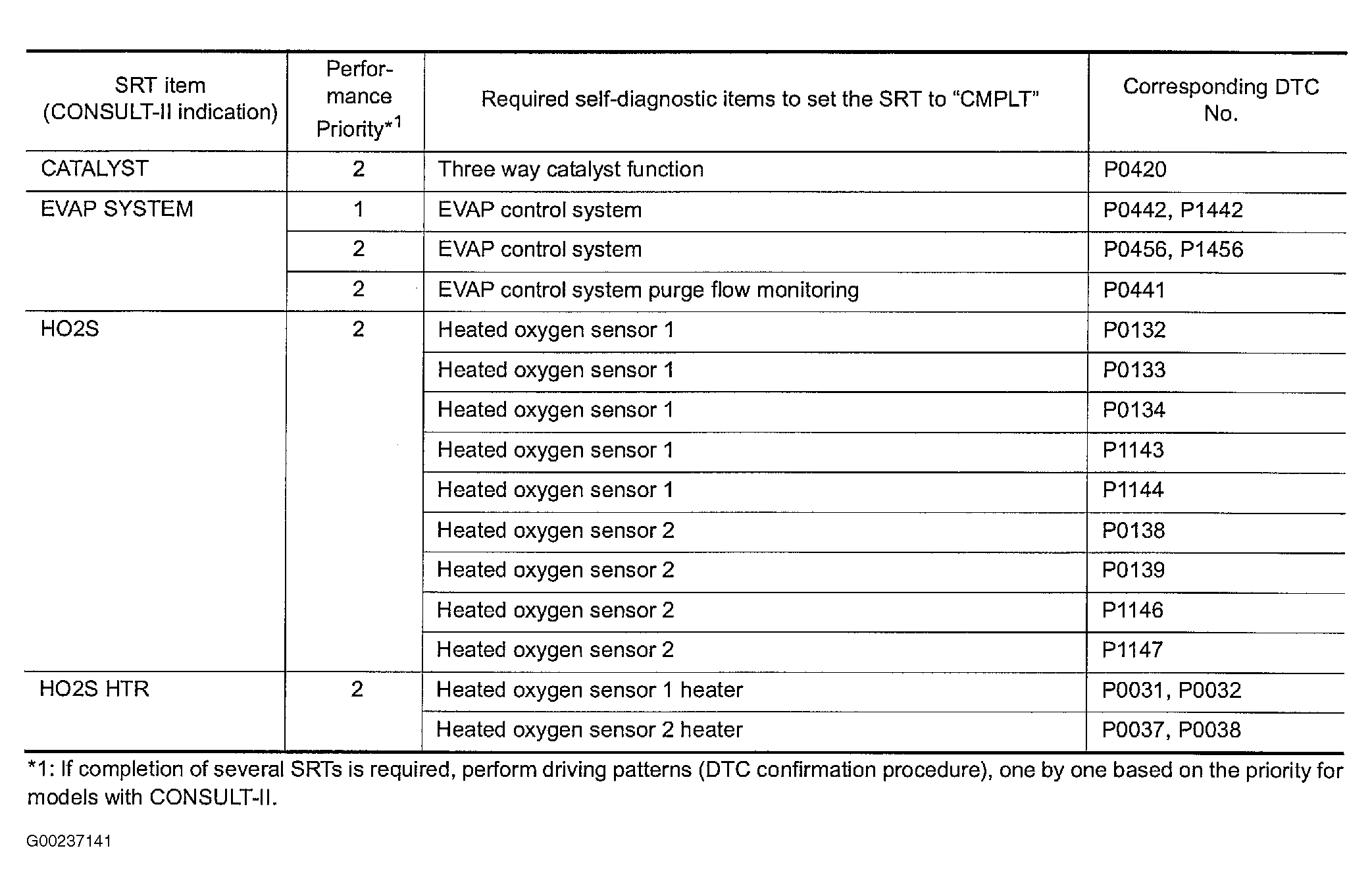

   Perform corresponding DTC confirmation procedure one by one based on performance priority. See Figure.
2. Without Consult-II

   The most efficient driving pattern in which SRT codes can be properly set is explained. See Fig 1 - Fig 4 . The driving pattern should be performed 1 or more times to set all SRT codes.

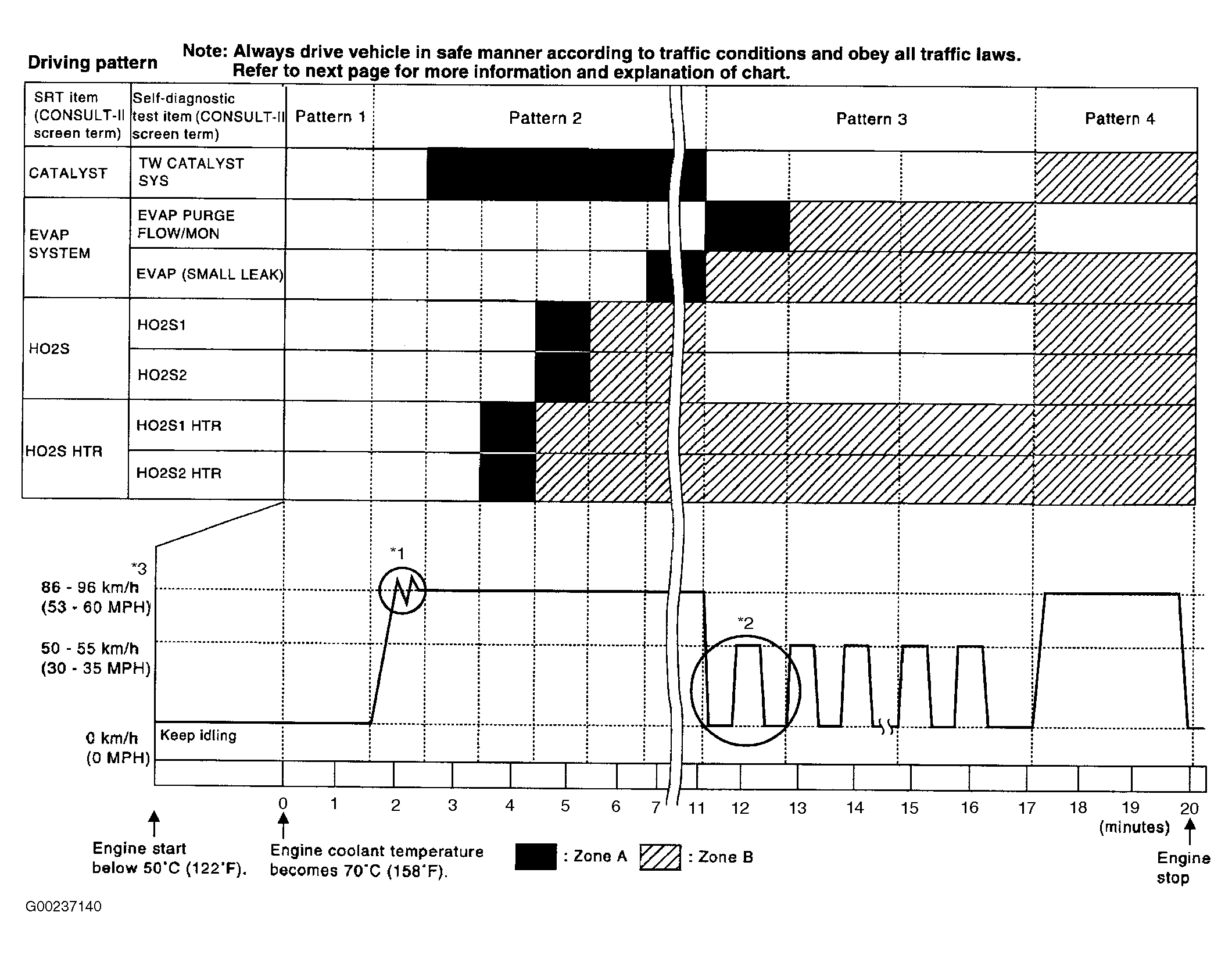

Fig 1: Setting SRT Codes Without Consult-II (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Setting SRT Codes Without Consult-II (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

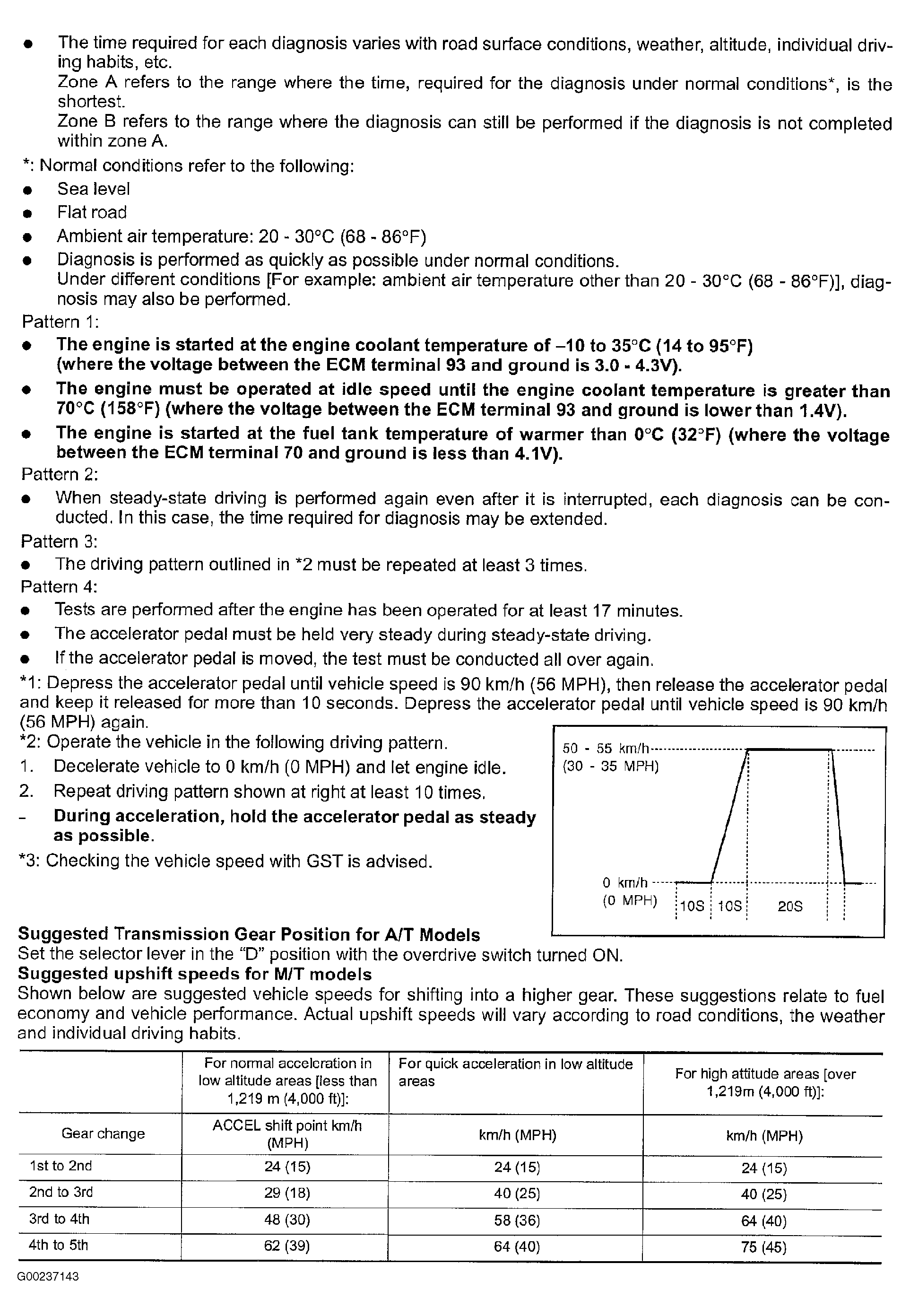

Fig 3: Setting SRT Codes Without Consult-II (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

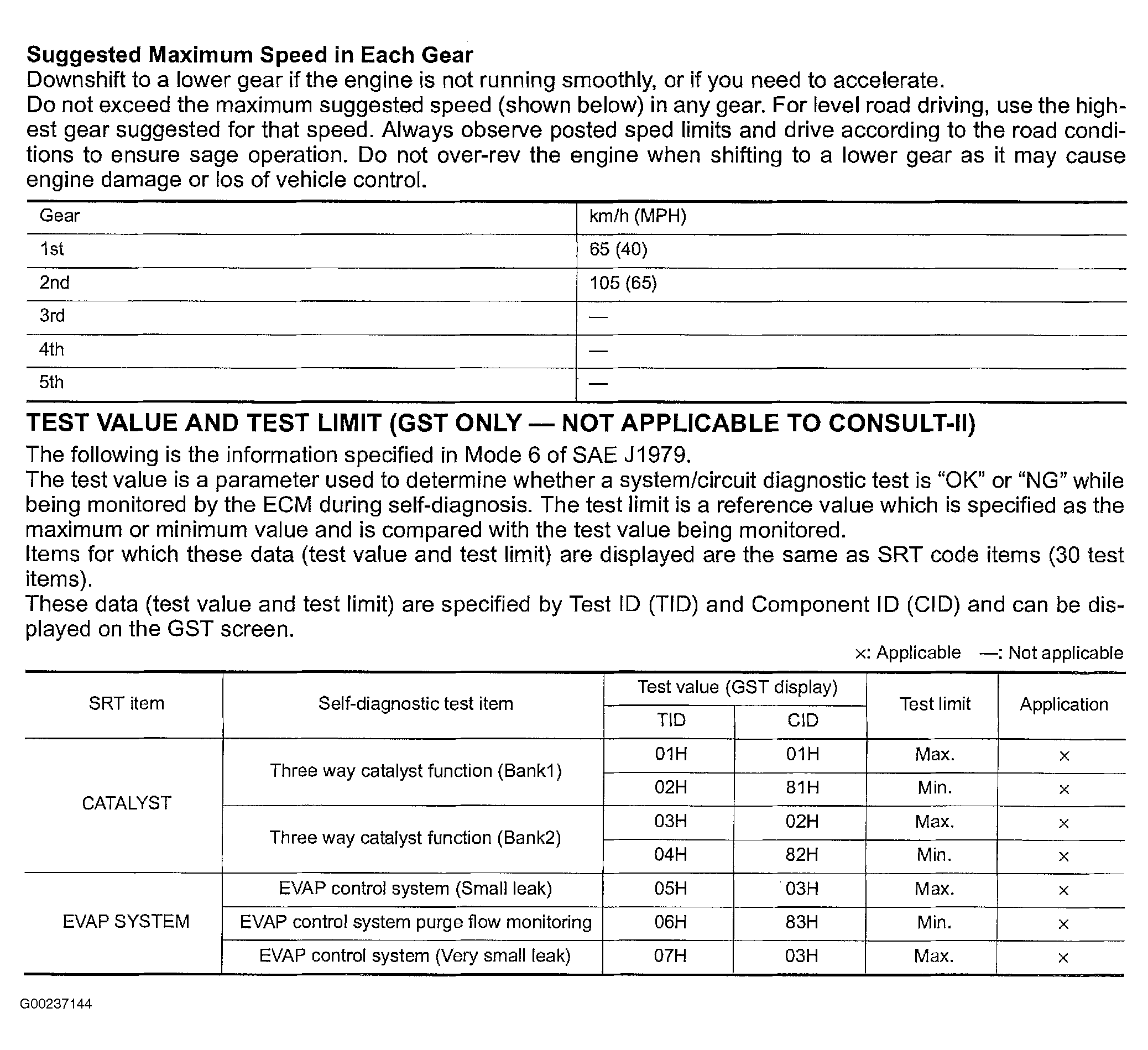

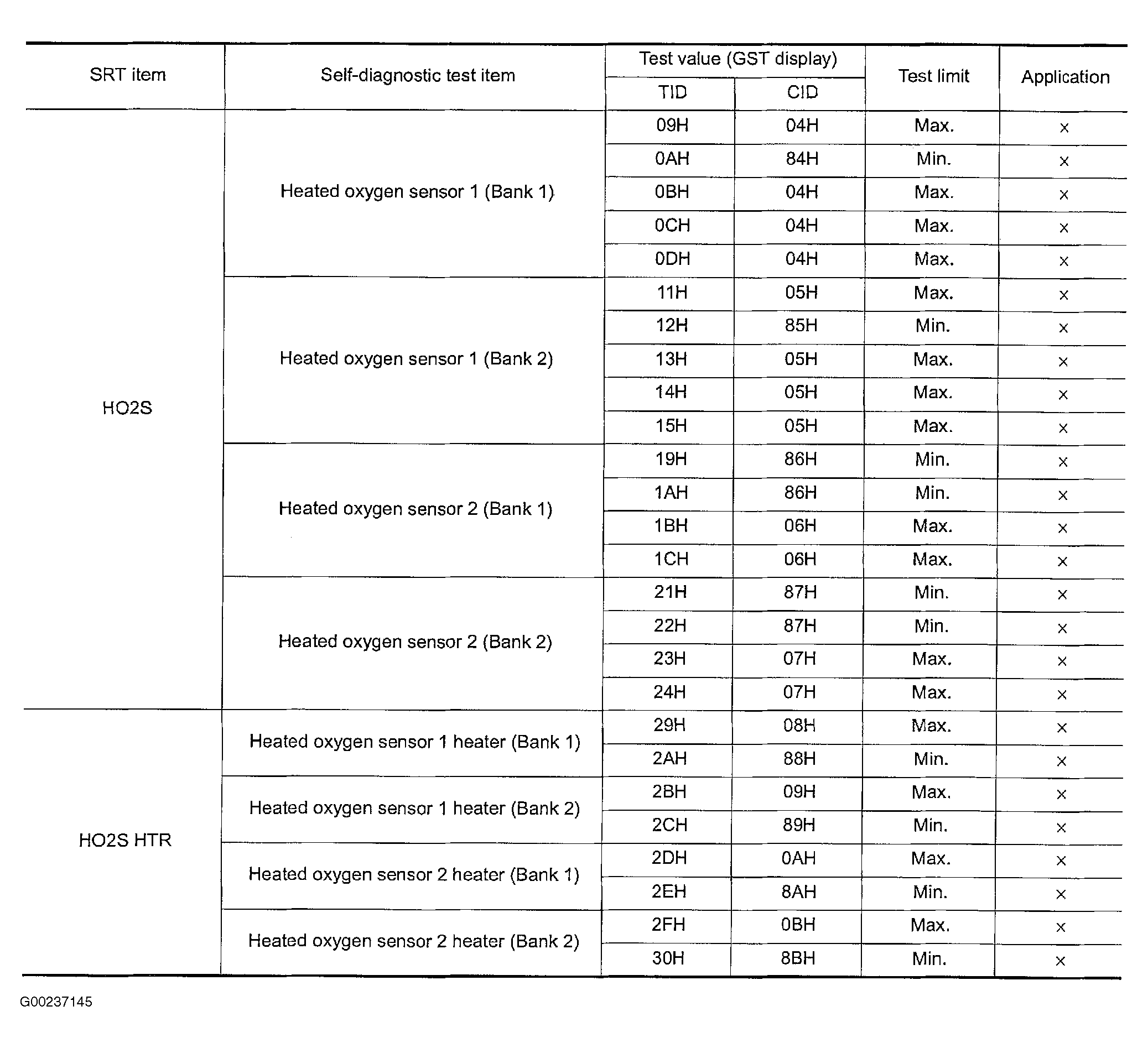

Fig 4: Setting SRT Codes Without Consult-II (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
