Smart Entrance Control Unit Inspection Table

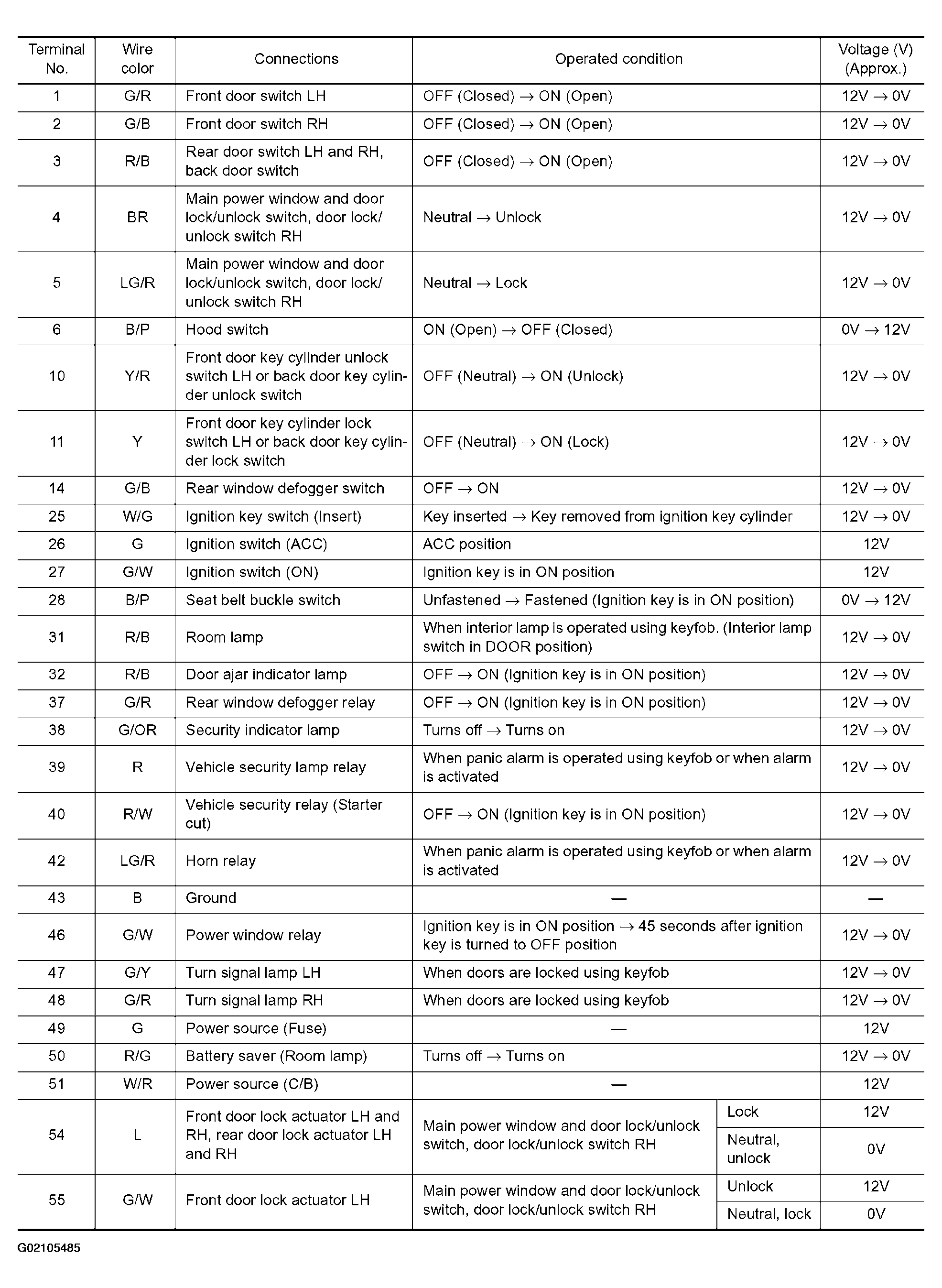

Fig 1: Smart Entrance Control Unit Inspection Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

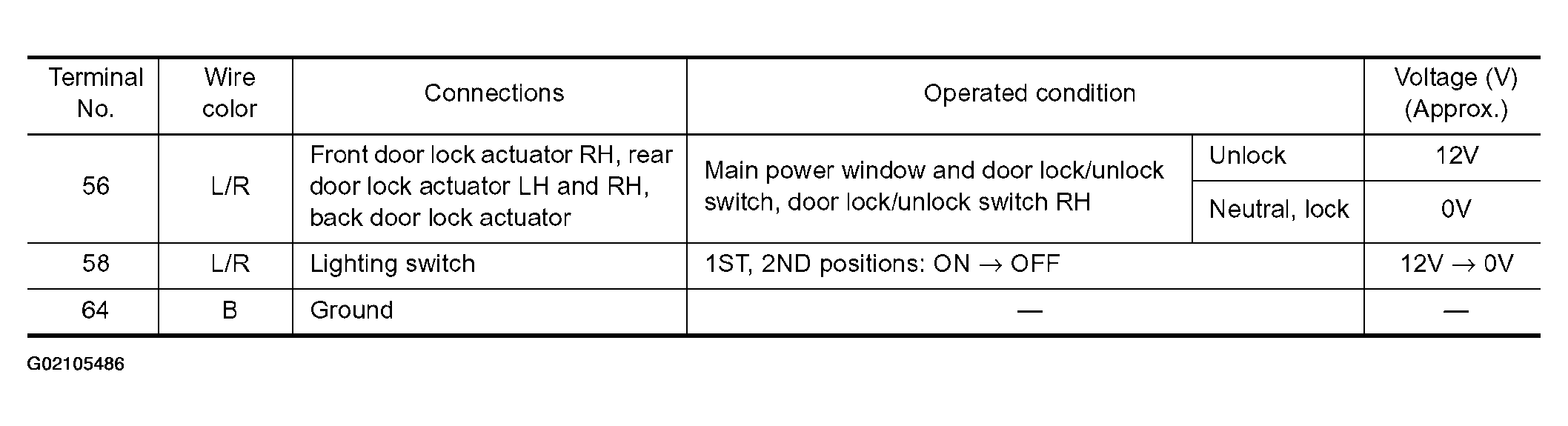

Fig 2: Smart Entrance Control Unit Inspection Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
