Component Locations

COMPONENT LOCATIONS

Component	Location
Door Key Cylinder Switch	Mounted In Each Door, See Fig 1
Door Switch (Left Front, Right Is Similar)	Bottom Of Front Left Door Post, See Fig 2
Door Switch (Left Rear, Right Is Similar)	Bottom Of Rear Left Door Post, See Fig 3
Fuse Block (J/B)	Behind Left Side Of Dash, See Fig 4
Fuse & Fusible Link Box (KA24DE)	Under Hood, Next To Battery, See Fig 5
Fuse & Fusible Link Box (VG33E)	Under Hood, Next To Battery, See Fig 6
Fuse & Fusible Link Box (VG33ER)	Under Hood, Next To Battery, See Fig 7
Smart Entrance Control Unit (SECU)	Behind Left Side Of Dash, Next To Parking Brake Release Handle, See Fig 8
Vehicle Security Lamp Relay (KA24DE)	In Fuse Block, See Fig 9
Vehicle Security Lamp Relay (VG33E & VG33ER)	In Fuse Block, See Fig 10 & Fig 11
Vehicle Security Relay	Behind Left Side Of Dash, See Fig 12

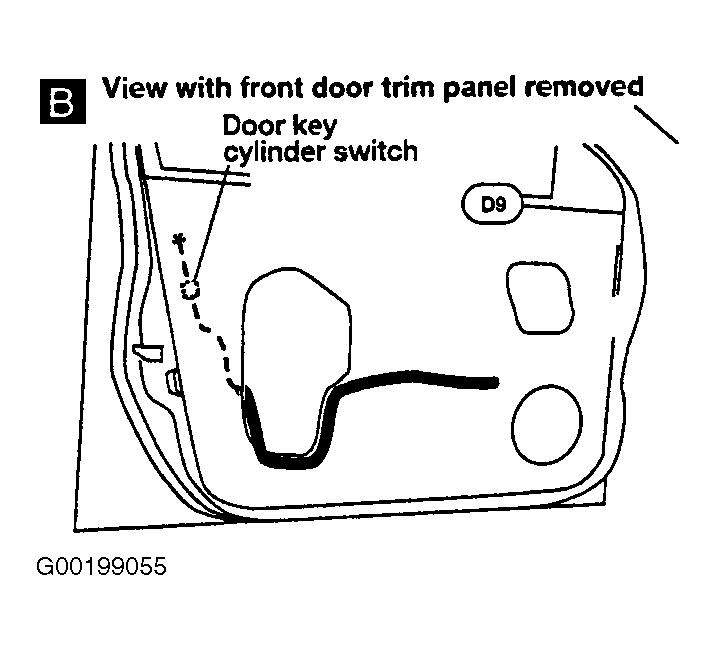

Fig 1: Locating Door Key Cylinder Switch

G00199055

Courtesy of NISSAN MOTOR CO., U.S.A.

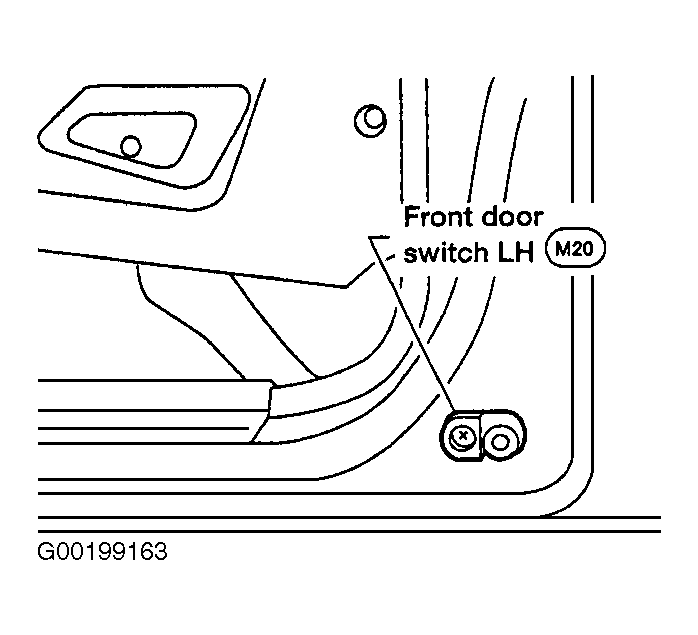

Fig 2: Locating Door Switch (Left Front, Right Is Similar)

G00199163

Courtesy of NISSAN MOTOR CO., U.S.A.

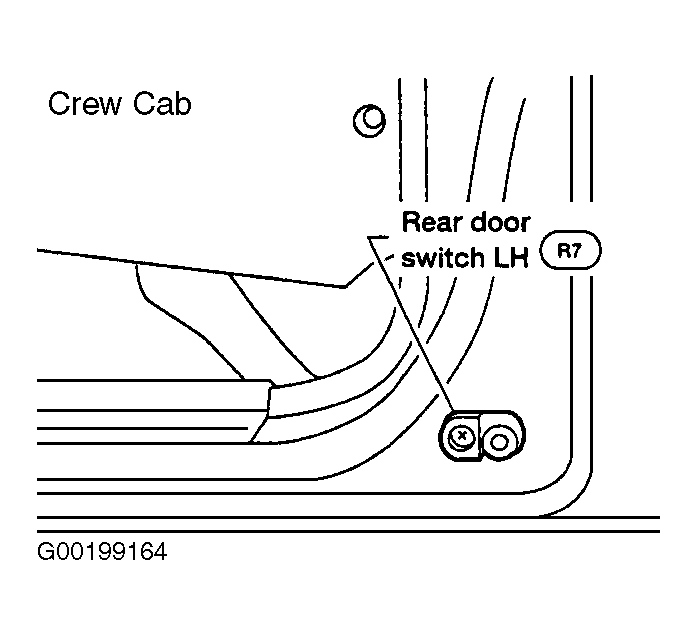

Fig 3: Locating Door Switch (Left Rear, Right Is Similar)

G00199164

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying & Locating Fuse Block (J/B) Fuses

G00195061

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (KA24DE)

G00199165

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (VG33E)

G00199166

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying & Locating Fuse & Fusible Link Box Fuses & Fusible Links (VG33ER)

G00199007

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Locating Smart Entrance Control Unit

G00195086

Courtesy of NISSAN MOTOR CO., U.S.A.

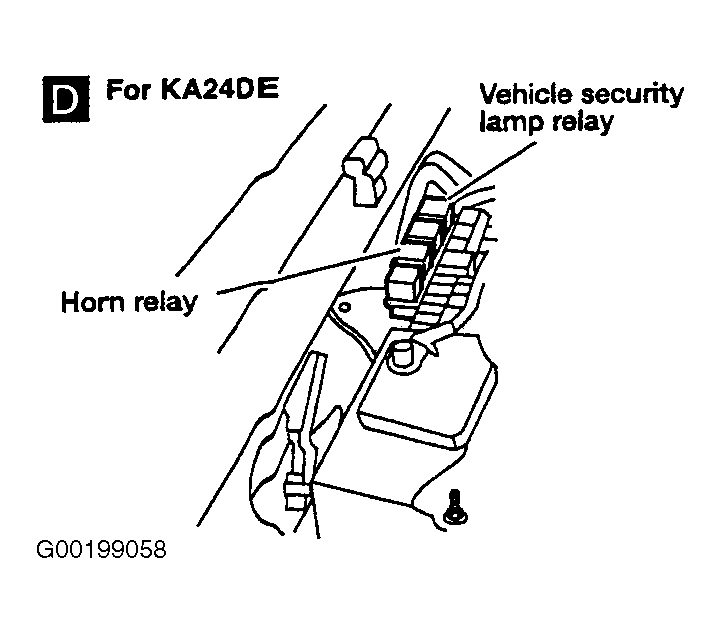

Fig 9: Locating Vehicle Security Lamp Relay (KA24DE, 2002-03 Frontier)

G00199058

Courtesy of NISSAN MOTOR CO., U.S.A.

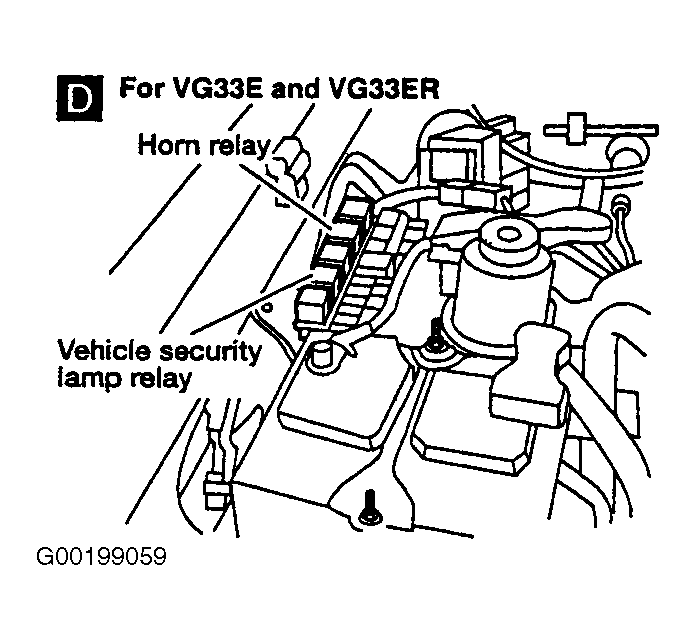

Fig 10: Locating Vehicle Security Lamp Relay (VG33E & VG33ER, 2002-03 Frontier)

G00199059

Courtesy of NISSAN MOTOR CO., U.S.A.

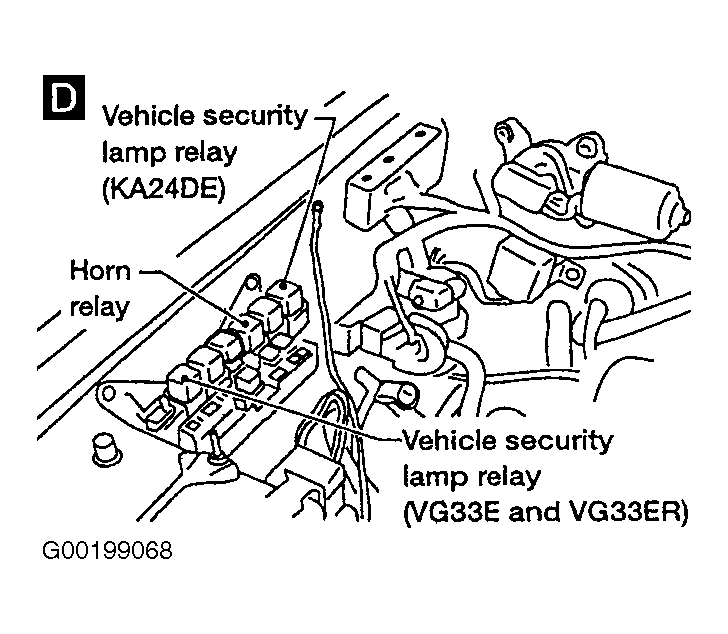

Fig 11: Locating Vehicle Security Lamp Relay (KA24DE, VG33E & VG33ER, 2002-03 Xterra)

G00199068

Courtesy of NISSAN MOTOR CO., U.S.A.

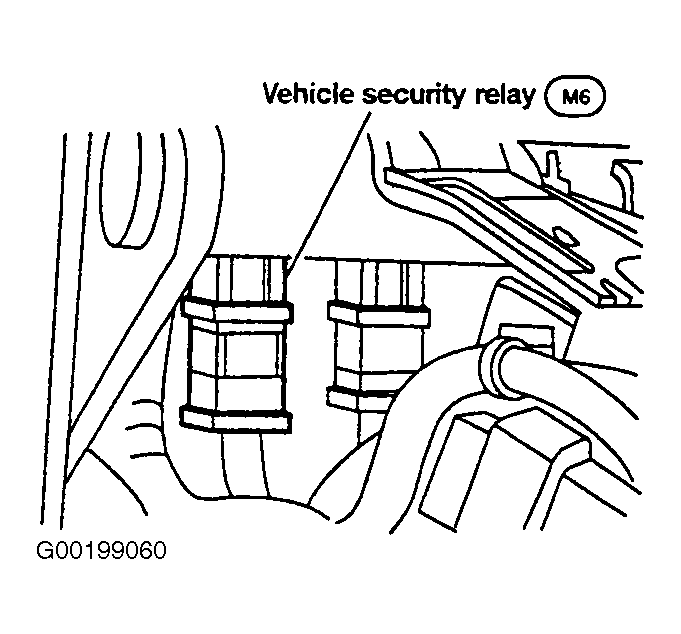

Fig 12: Locating Vehicle Security Relay

G00199060

Courtesy of NISSAN MOTOR CO., U.S.A.
