Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

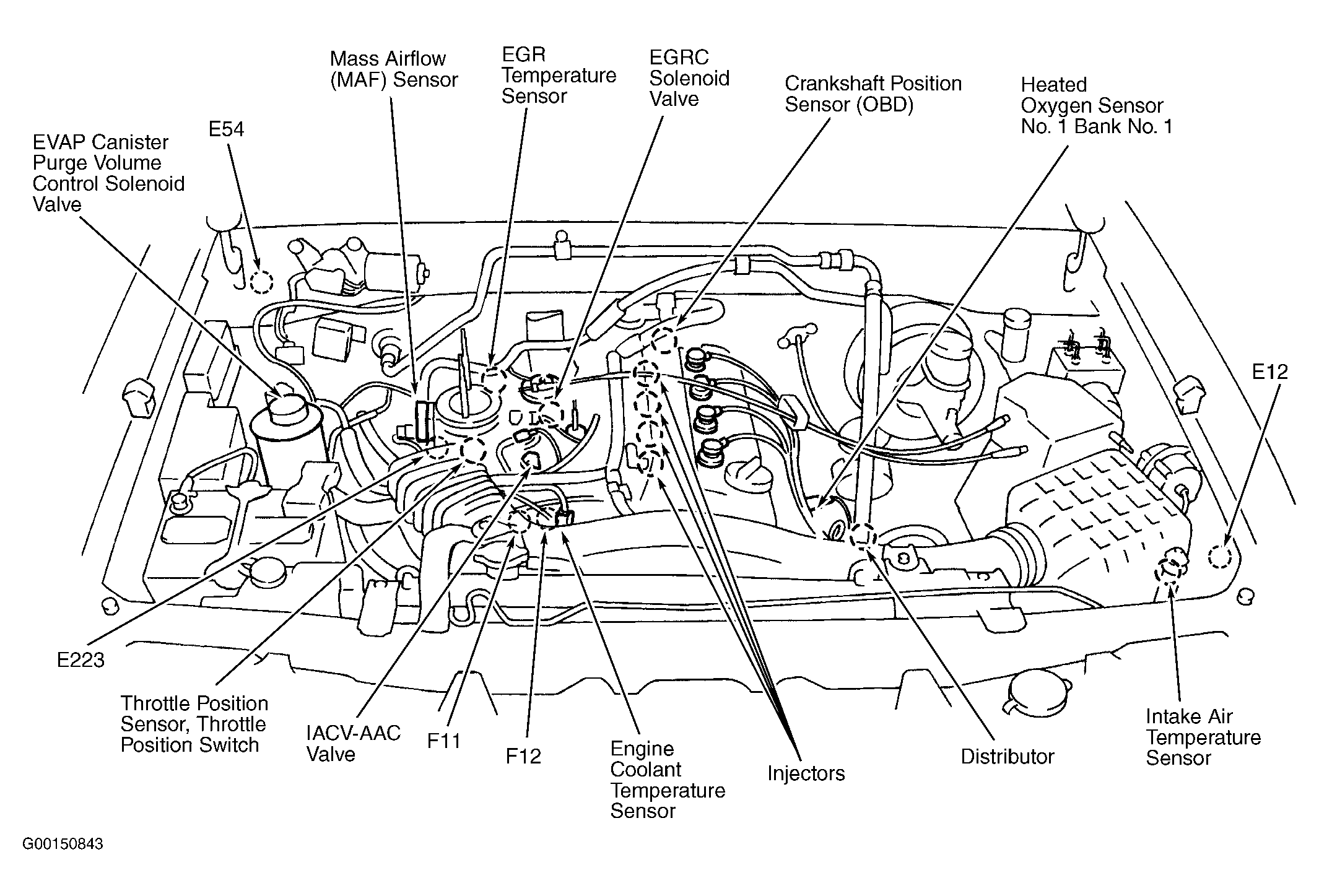

Fig 1: Engine Compartment (2.4L VIN D)

Courtesy of NISSAN MOTOR CO., U.S.A.

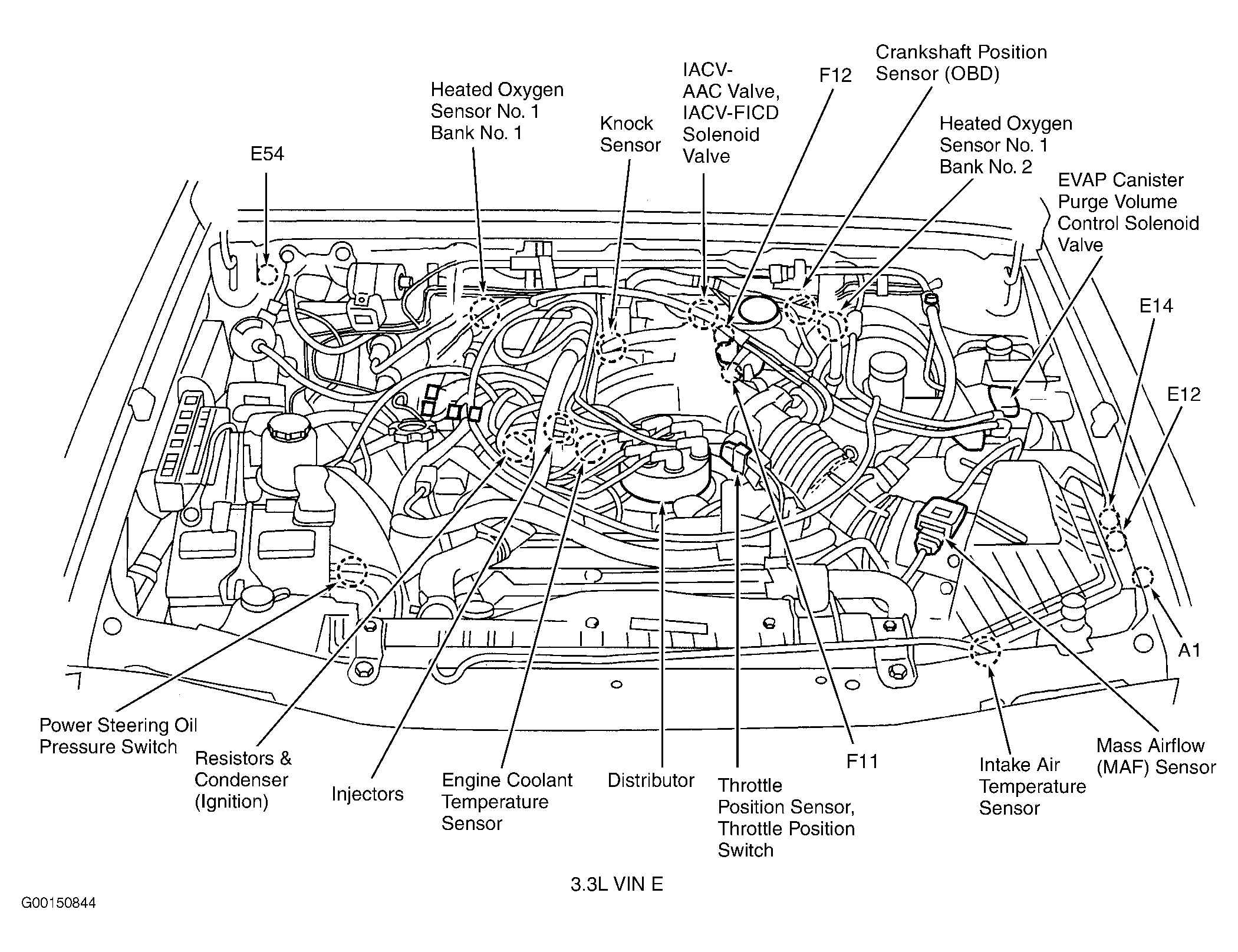

Fig 2: Engine Compartment (3.3L VIN E)

Courtesy of NISSAN MOTOR CO., U.S.A.

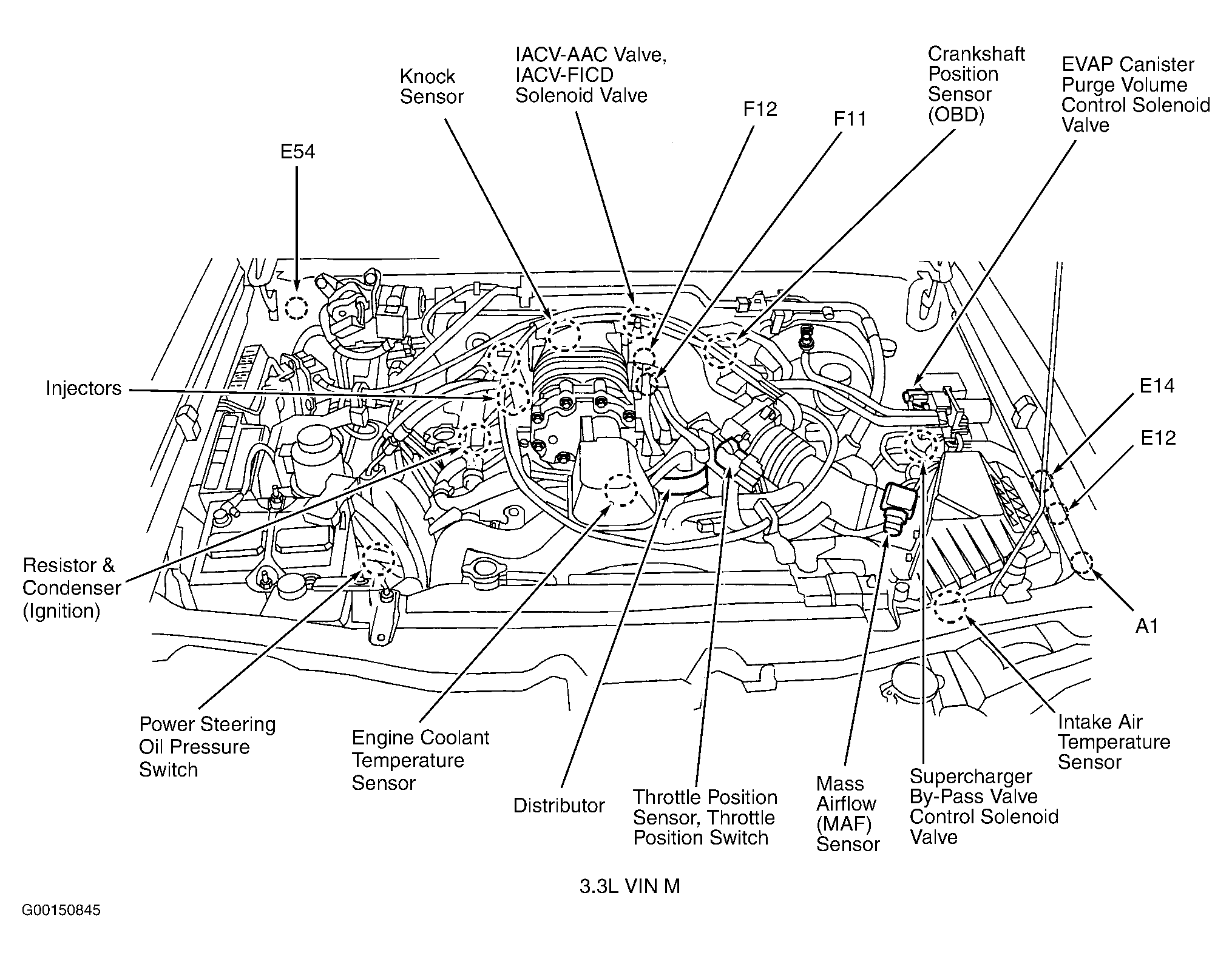

Fig 3: Engine Compartment (3.3L VIN M)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Front Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

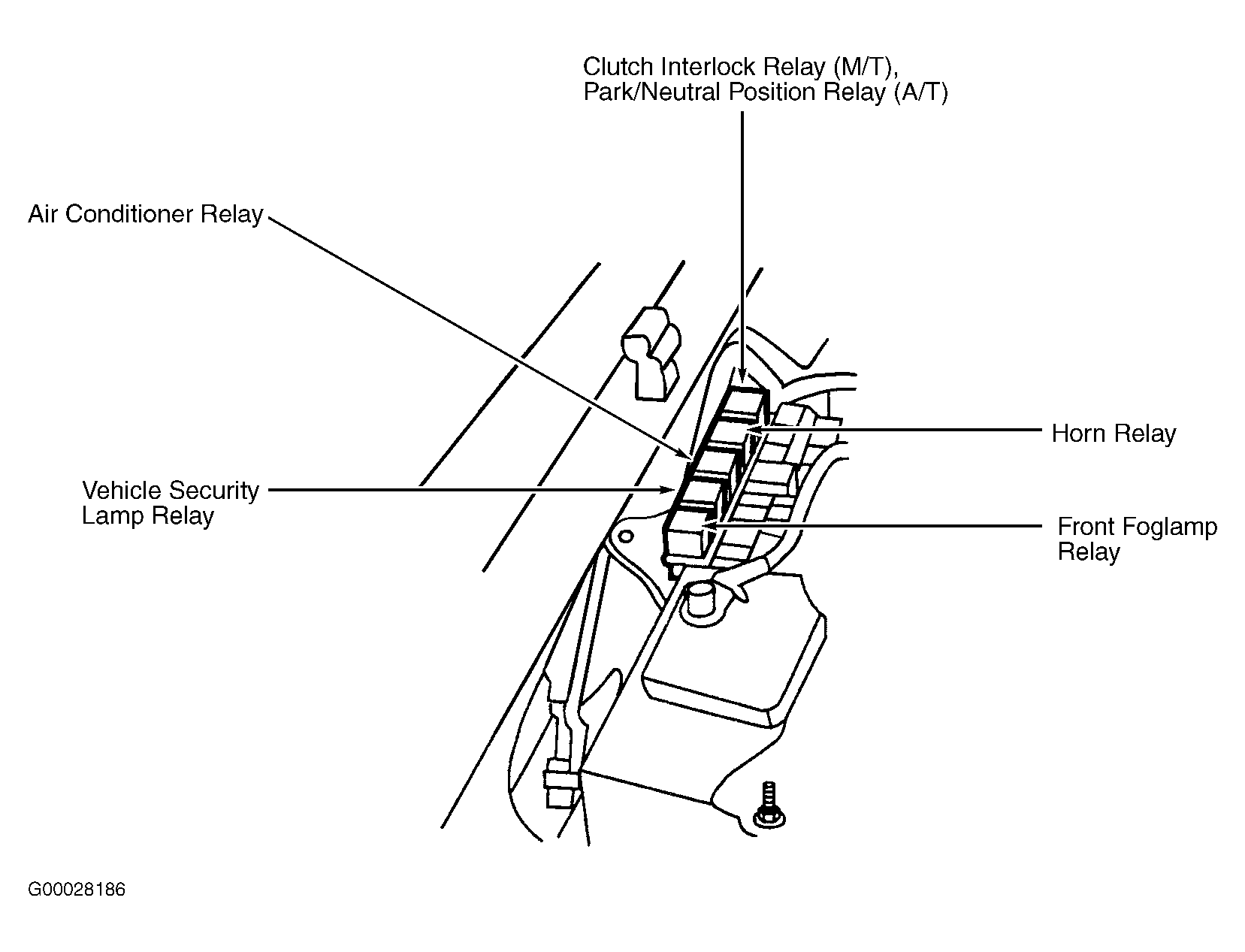

Fig 5: Relay Box (2.4L VIN D)

Courtesy of NISSAN MOTOR CO., U.S.A.

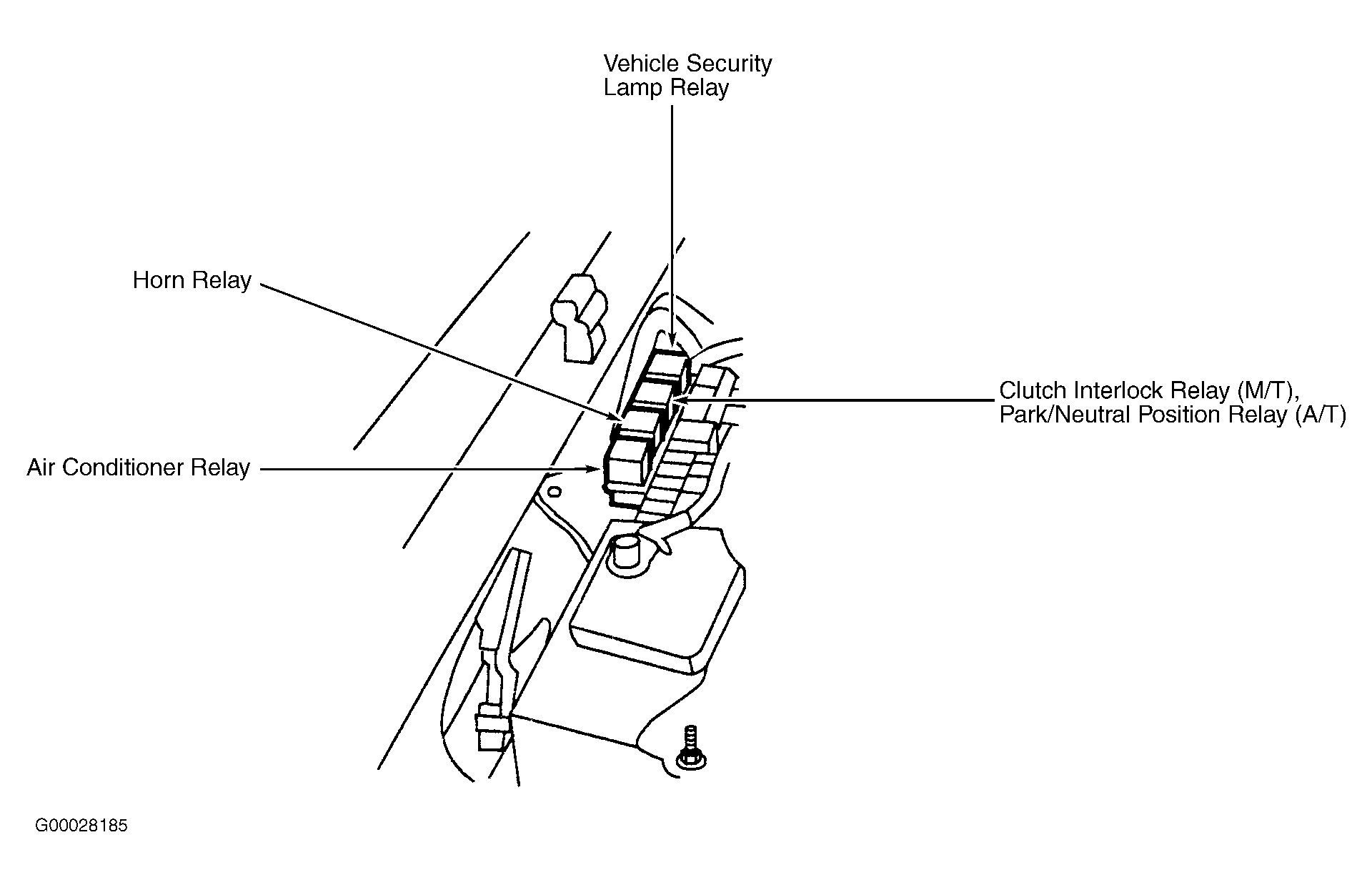

Fig 6: Relay Box (3.3L VIN E & 3.3L VIN M)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
