Operating Cylinder: Components

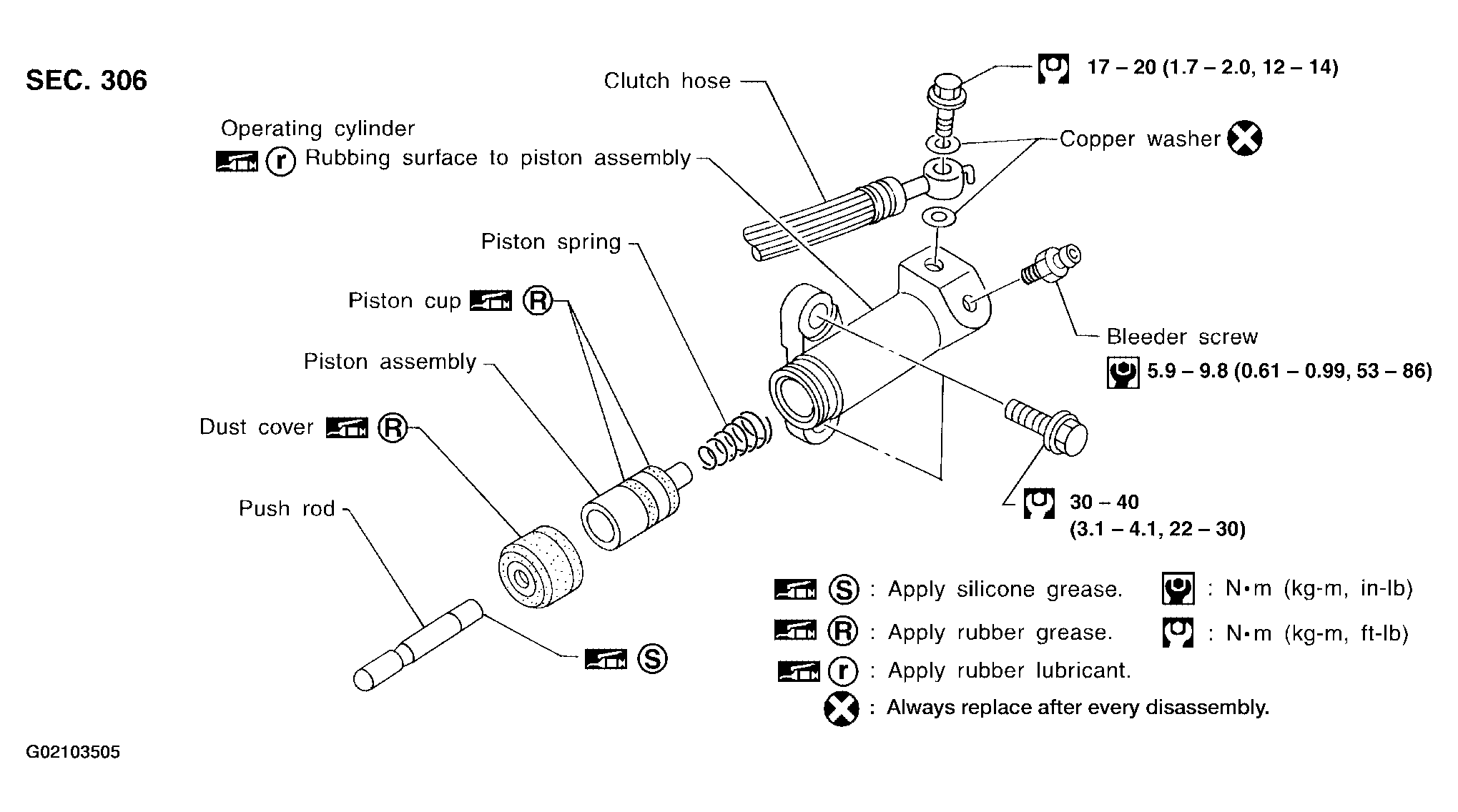

Fig 1: Exploded View And Torque Specification Of Operating Cylinder
G02103505Courtesy of NISSAN MOTOR CO., U.S.A.
