Description & Operation: Input/Output

For input/output, see Fig 1 .

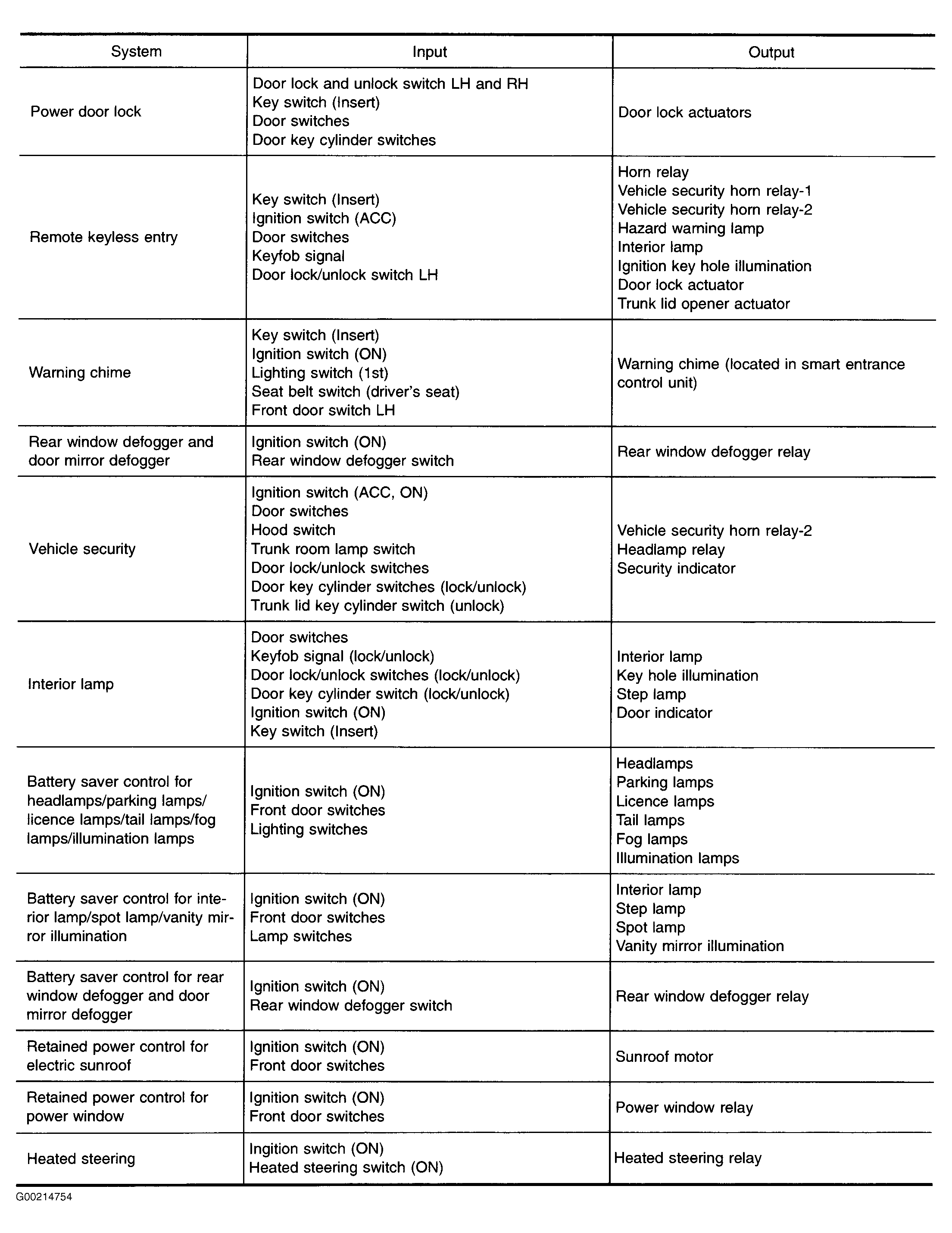

Fig 1: Identifying Inputs & Outputs
G00214754Courtesy of NISSAN MOTOR CO., U.S.A.
