Consult-II Inspection Procedure: Notes

NOTE: For diagnostic items application, see DIAGNOSTIC ITEMS APPLICATION  .

For CONSULT-II inspection procedure, see Fig 1 .

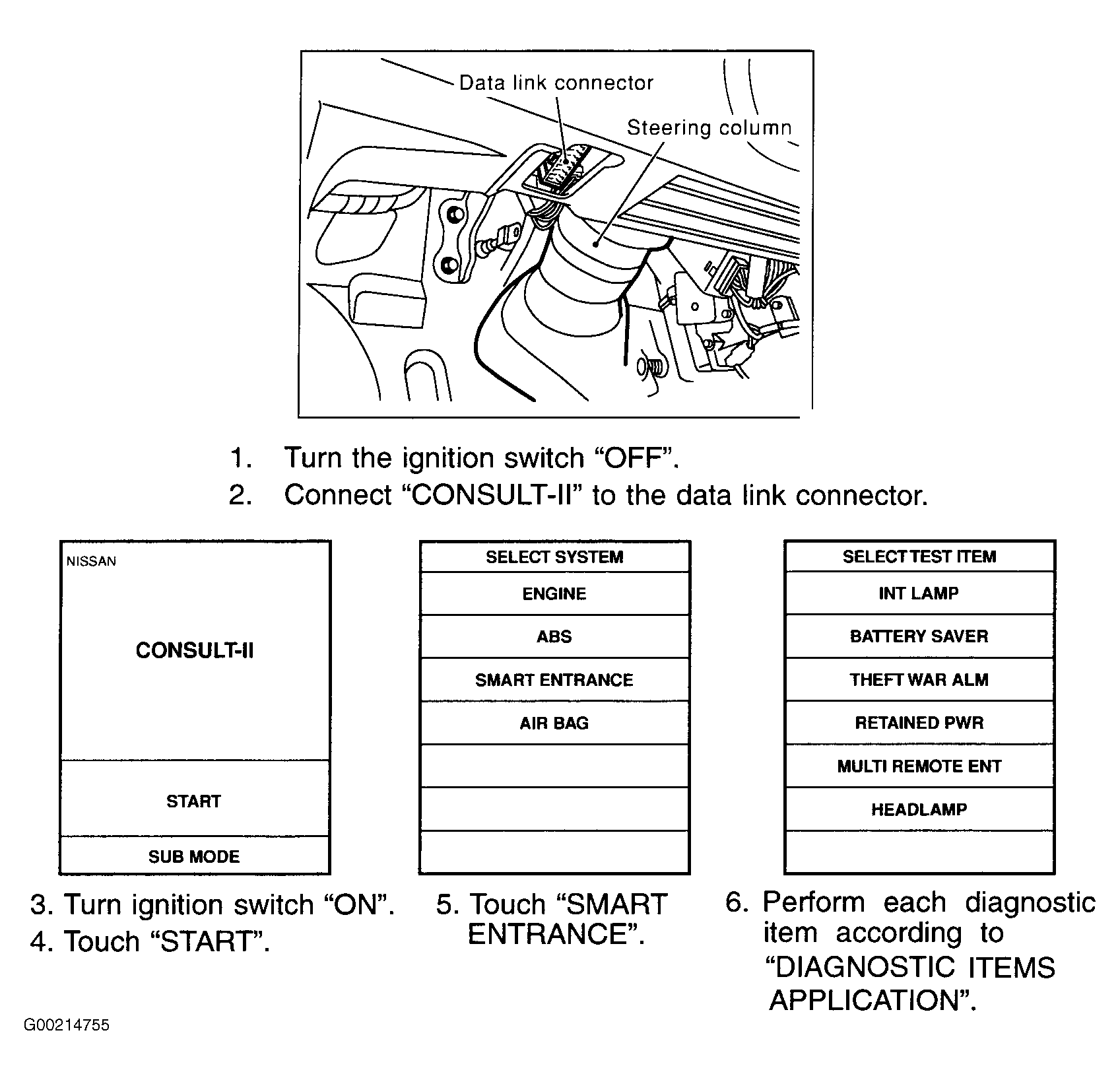

Fig 1: CONSULT-II Inspection Procedure
G00214755Courtesy of NISSAN MOTOR CO., U.S.A.
