Component Locations

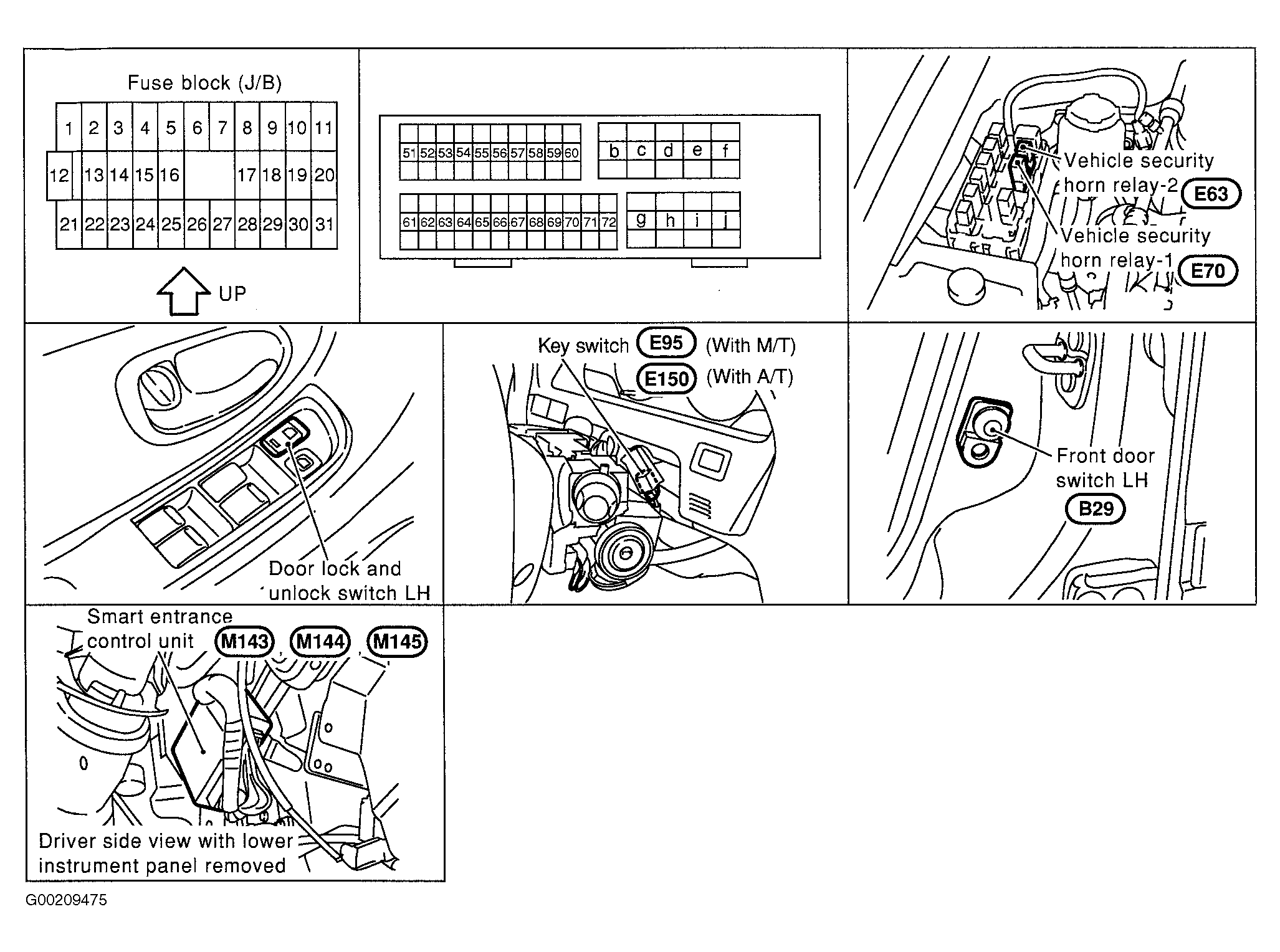

COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Door Lock/Unlock Switch | On Left & Right Front Door Trim Panels | ||
| Door Switch | On Door Posts, Below Door Strikers | ||
| Fuse Block (J/B) | Behind Left Side Of Dash | ||
| Fusible Link & Fuse Box | Under Hood, In Front Of Left Strut Pillar | ||
| Key Switch | On Steering Column, Under Steering Column Covers | ||
| Smart Entrance Control Unit | Behind Center Console, Left Of Steering Column | ||
| Vehicle Security Horn Relays 1 & 2 | In Relay Box No. 1, In Front Of Right Strut Pillar | ||
|
|
|||
