Interior Lamp Operation Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For interior lamp operation check, see Fig 1 -Fig 2 .

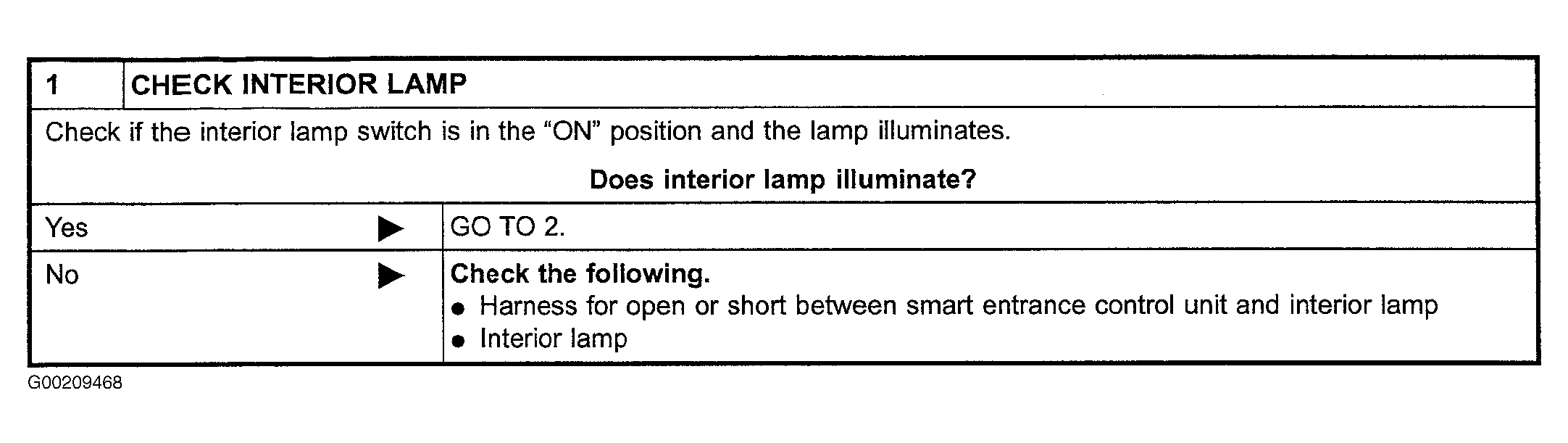

Fig 1: Identifying Interior Lamp Operation Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

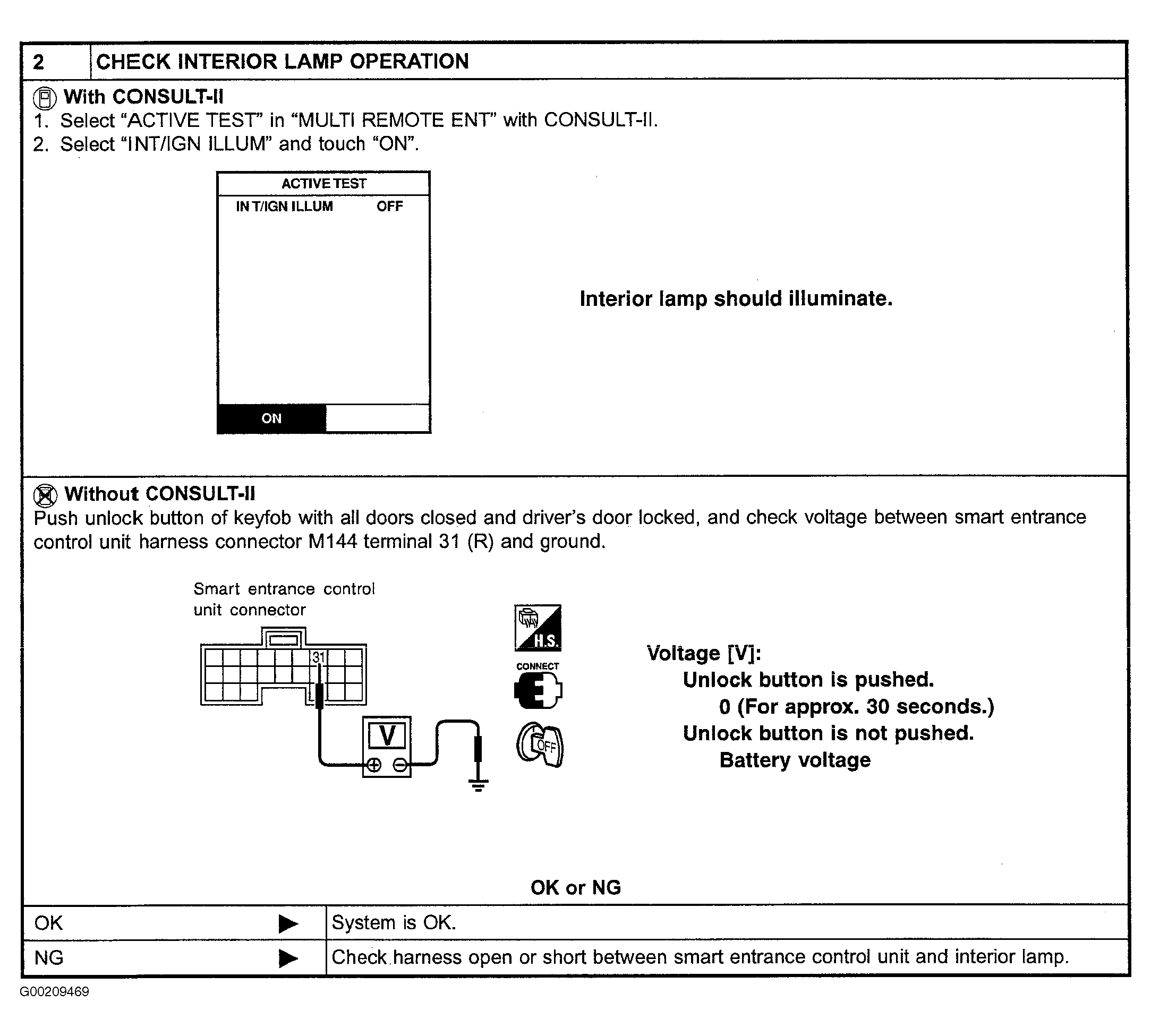

Fig 2: Identifying Interior Lamp Operation Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
