KEYFOB Battery & Function Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For symptom chart, see Figure , for ID code entry procedure, see ID CODE ENTRY PROCEDURE .

For keyfob battery and function check, see Fig 1 -Fig 2 .

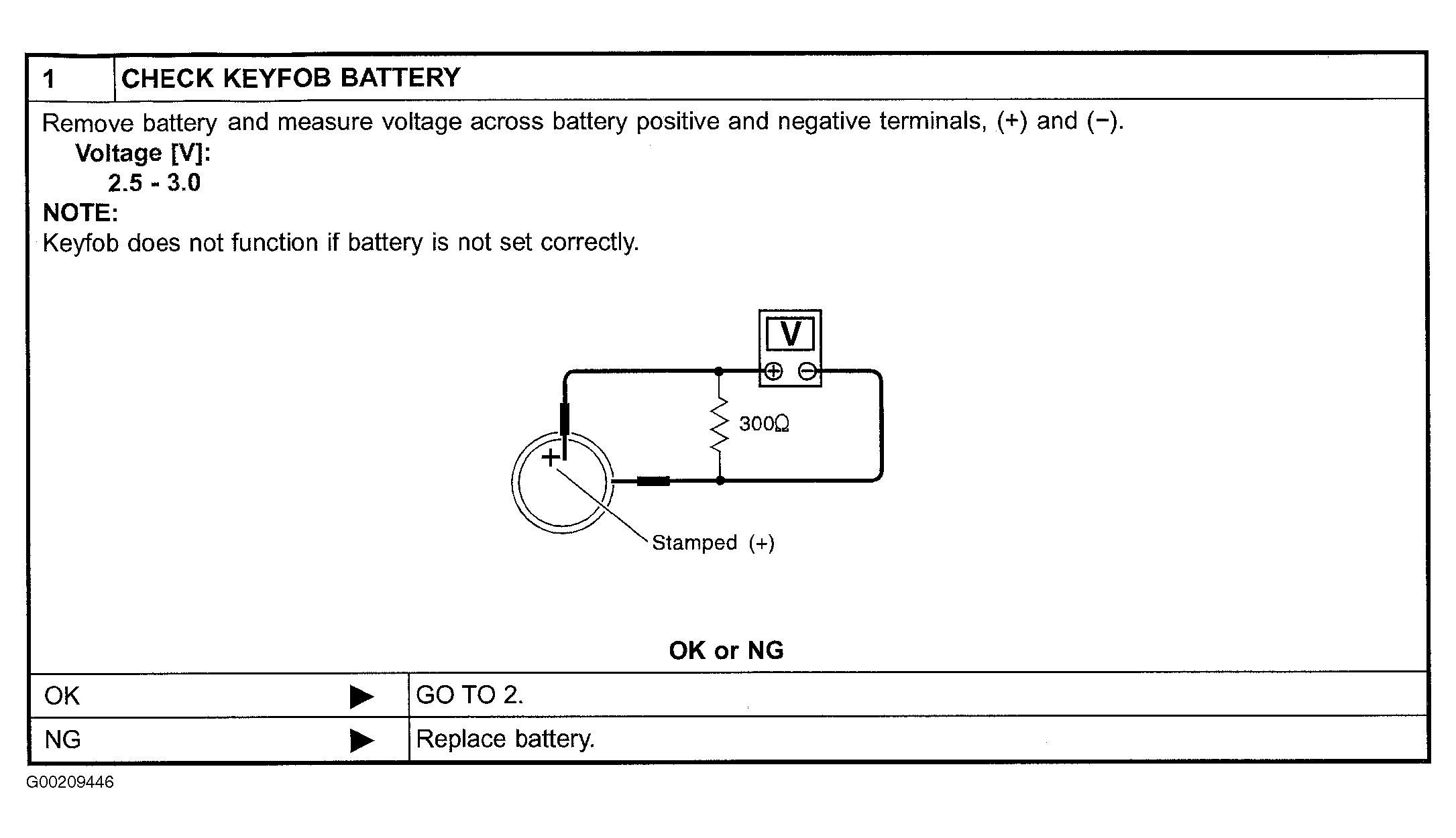

Fig 1: Identifying Key Fob Battery & Function Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

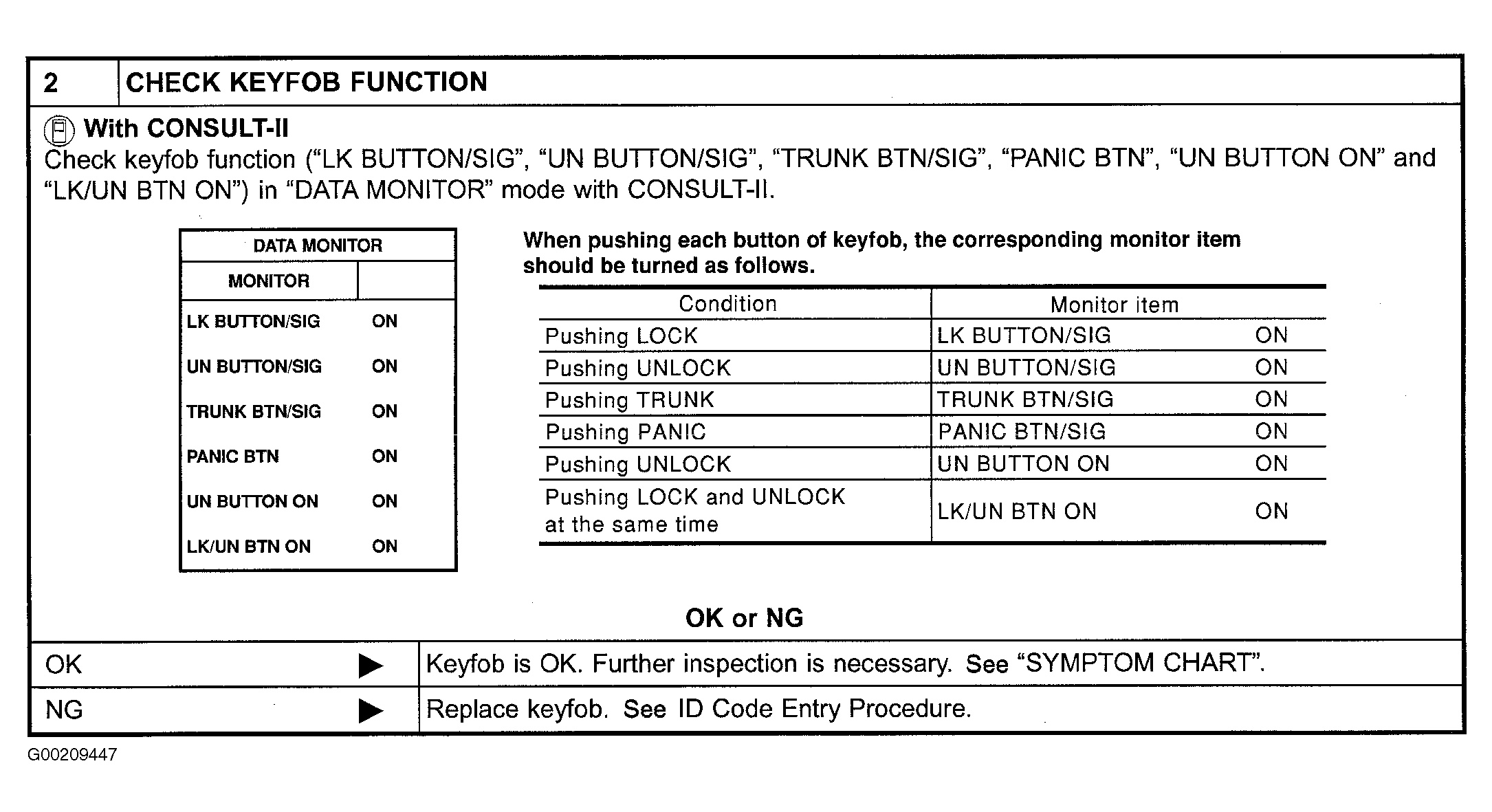

Fig 2: Identifying Key Fob Battery & Function Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
