Brake System - Service Data And Specifications (SDS)
>>
Service Data And Specifications (SDS)
>>
ABS Wheel Sensor
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ABS Wheel Sensor

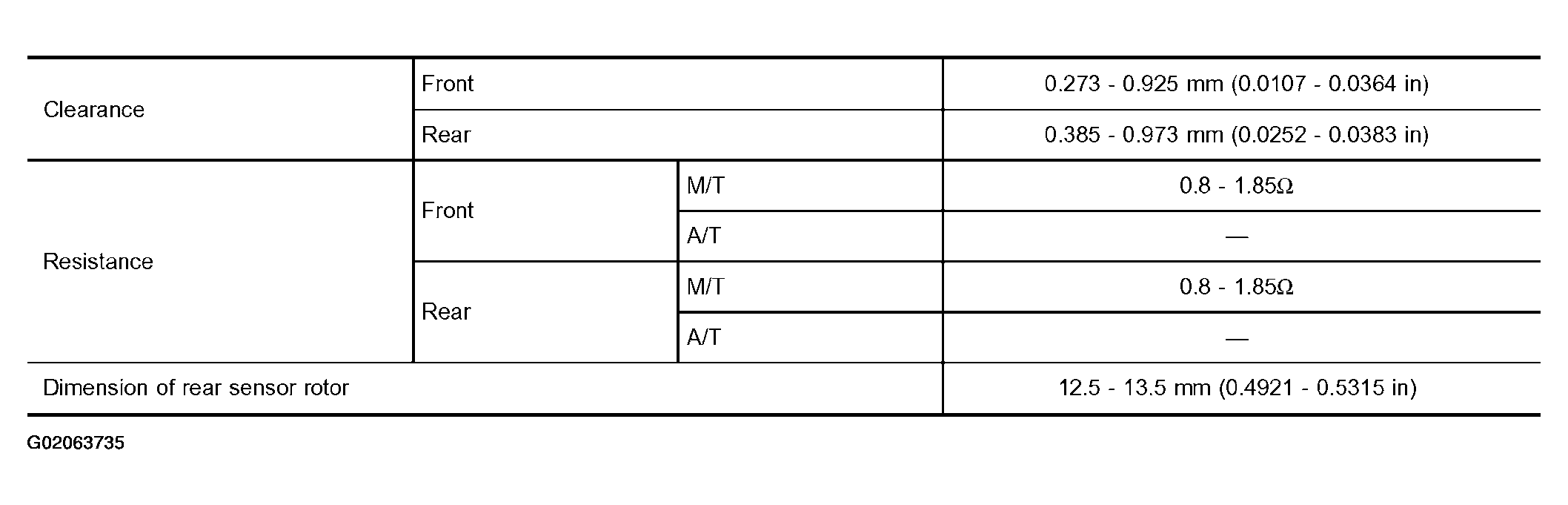

Fig 1: ABS Wheel Sensor Service Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
