Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

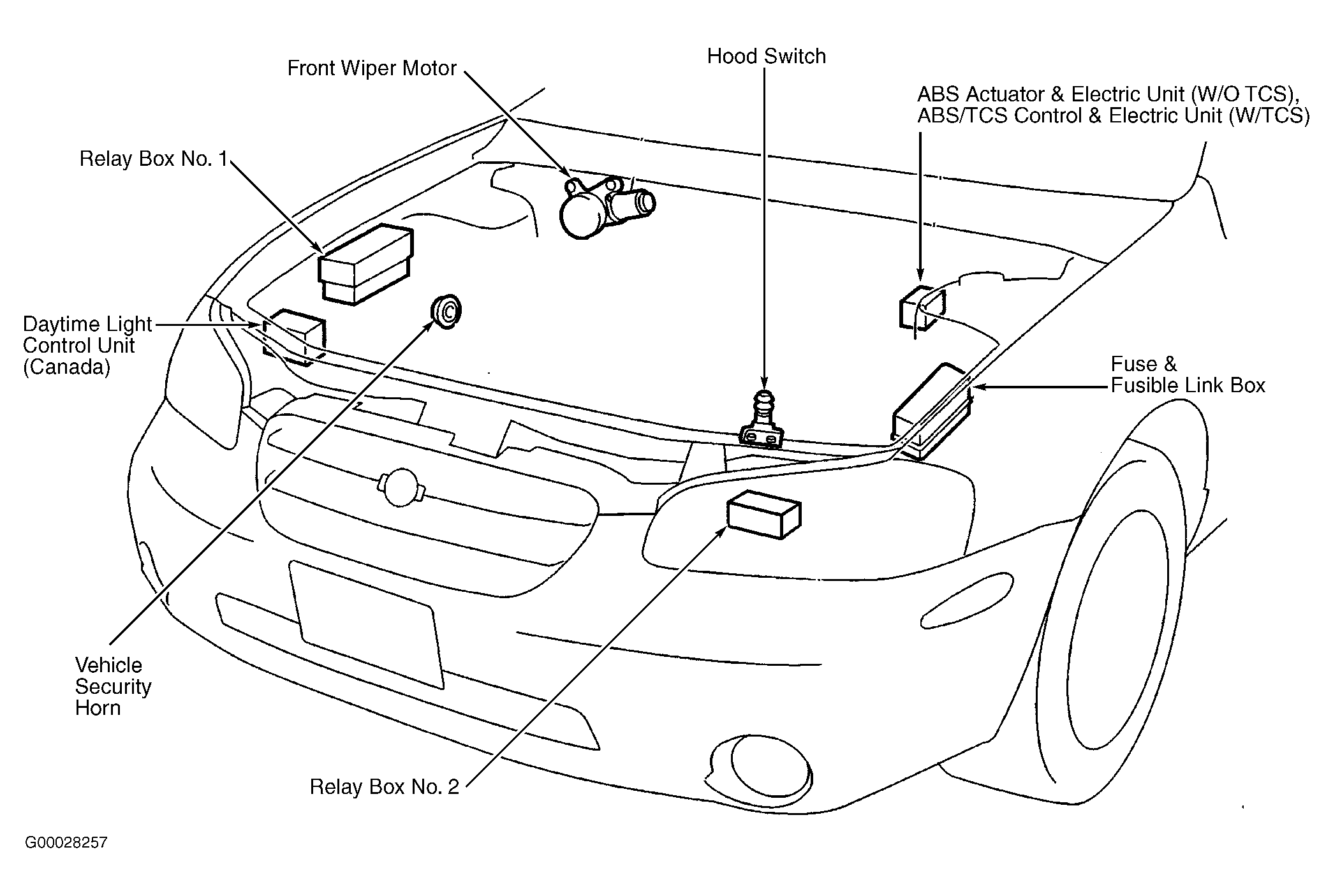

| ABS Actuator & Electric Unit (W/O TCS) | At left rear corner of engine compartment. See Figure . |
| ABS/TCS Control & Electric Unit (W/TCS) | At left rear corner of engine compartment. See Figure . |

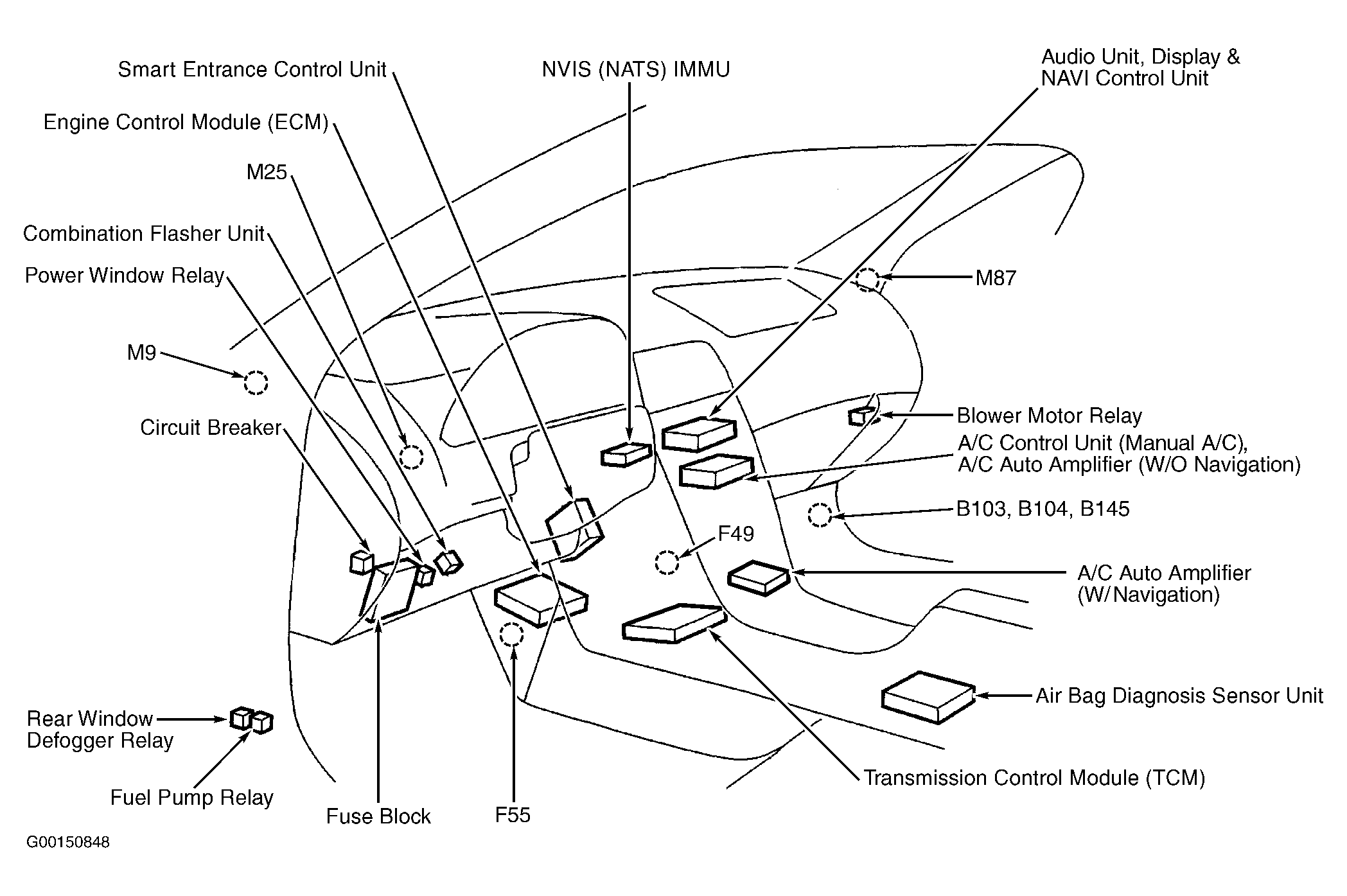

| A/C Auto Amplifier (W/Navigation) | Behind lower center of dash. See Figure . |
| A/C Auto Amplifier (W/O Navigation) | Behind center of dash. See Figure . |
| A/C Control Unit (Manual A/C) | Behind center of dash. See Figure . |
| Air Bag Diagnosis Sensor Unit | Under rear of floor center console. See Figure . |
| Audio Unit | Behind center of dash. See Figure . |
| BOSE Speaker Amplifier | Under rear parcel shelf. |
| Daytime Light Control Unit (Canada) | At right front corner of engine compartment. See Figure . |
| Display & NAVI Control Unit | Behind center of dash. See Figure . |
| Engine Control Module (ECM) | Behind lower center of dash. See Figure . |
| NVIS (NATS) IMMU | On ignition key cylinder. See Figure . |
| Shift Lock Control Unit (A/T) | Behind lower center of dash. |
| Smart Entrance Control Unit | Behind center of dash. See Figure . |
| Transmission Control Module (TCM) | Behind lower center of dash. See Figure . |
