DTC Vehicle Speed Sensor.MTR: Description: Notes

The vehicle speed sensor.MTR is built into the speedometer assembly. The sensor functions as an auxiliary device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle speed sensor.MTR.

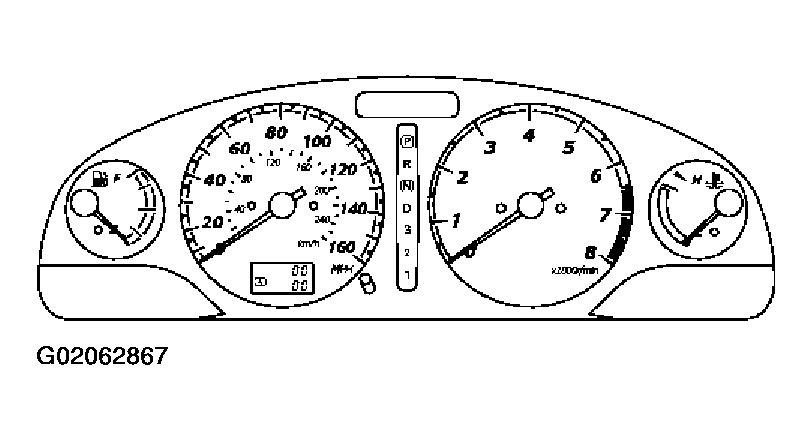

Fig 1: Identifying Speedometer Assembly
G02062867Courtesy of NISSAN MOTOR CO., U.S.A.
