Automatic Transaxle: Overhaul: Components

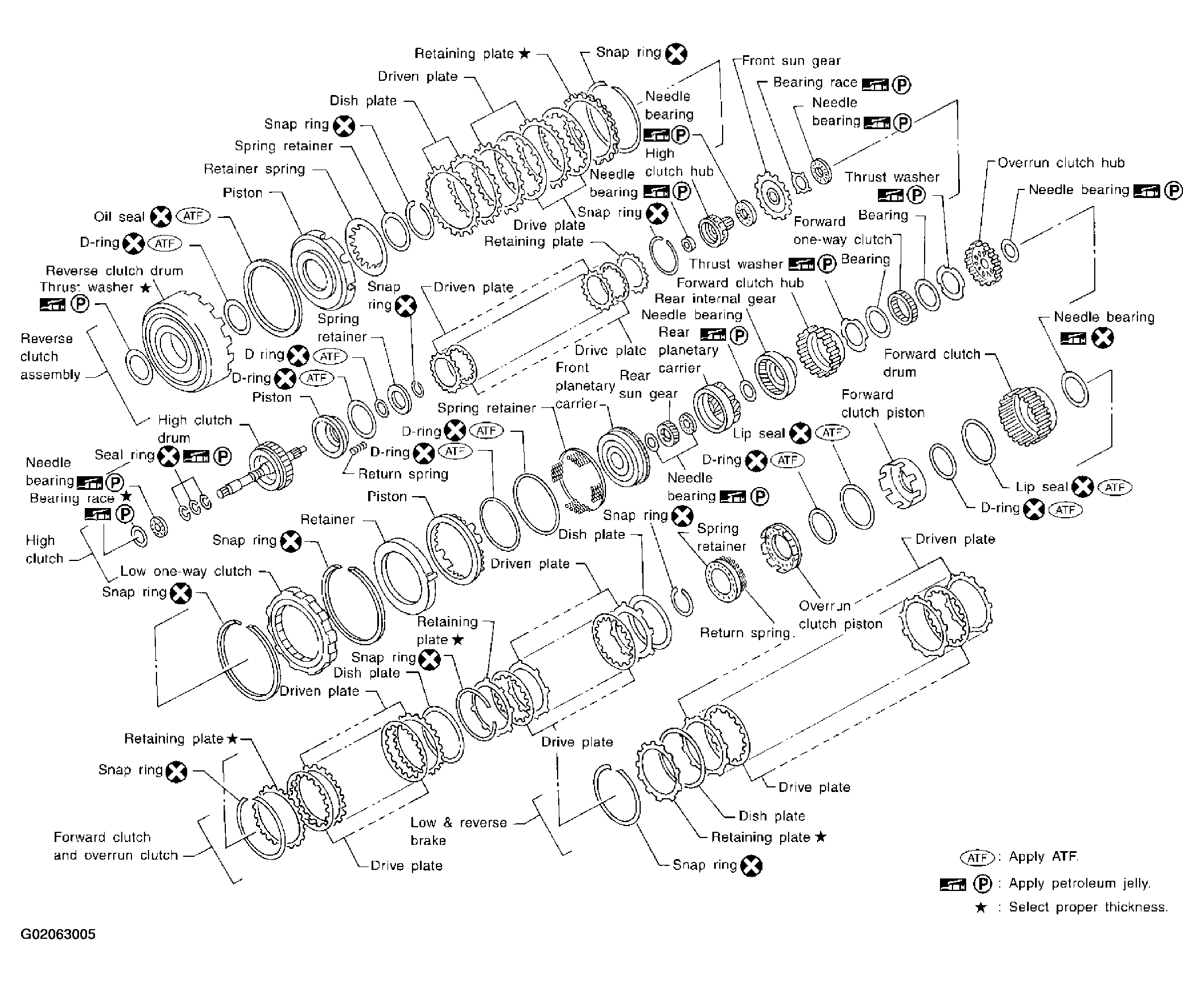

Fig 1: Identifying Automatic Transaxle Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

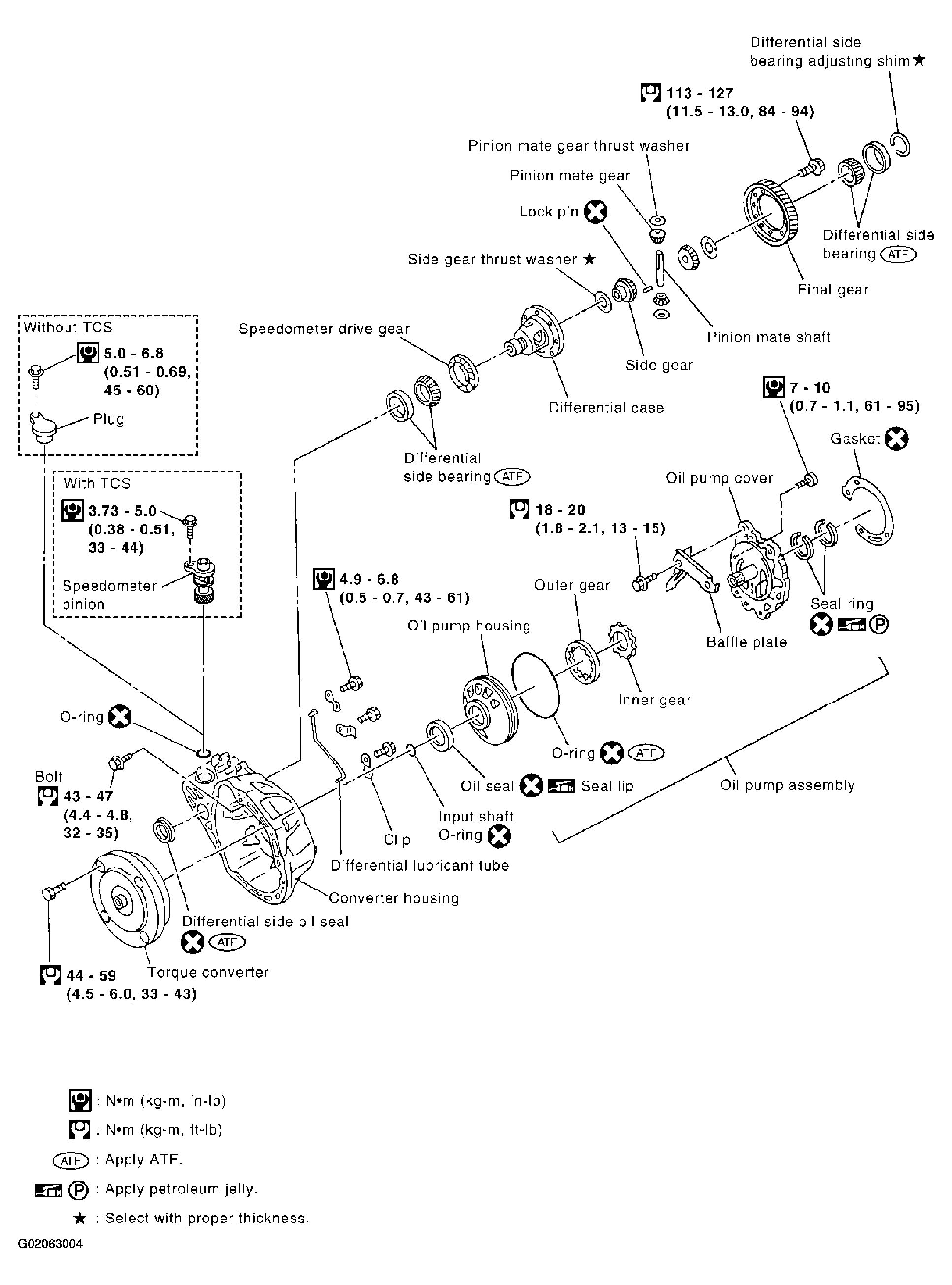

Fig 2: Identifying Automatic Transaxle Components (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

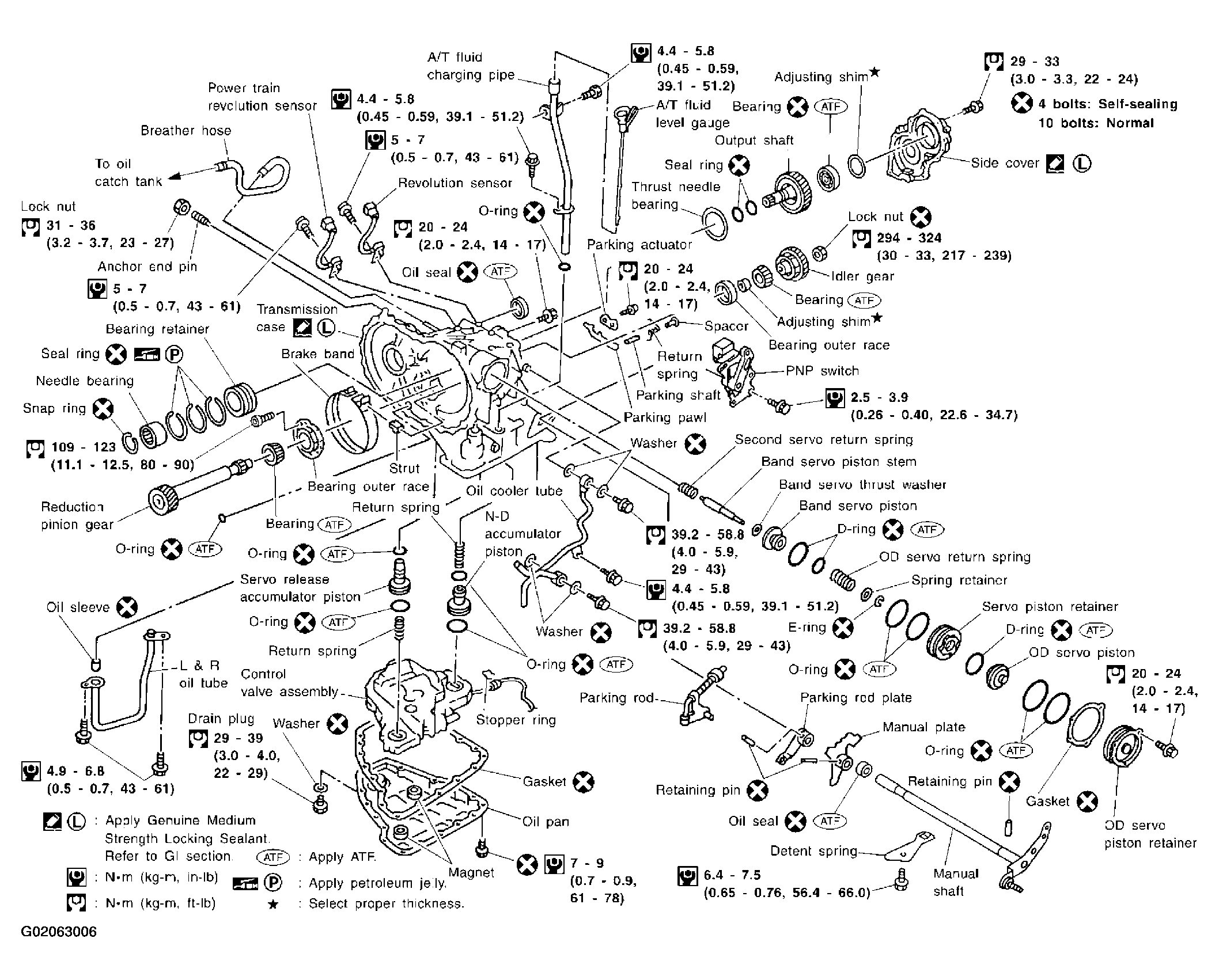

Fig 3: Identifying Automatic Transaxle Components (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
