Control Valve Assembly: Components

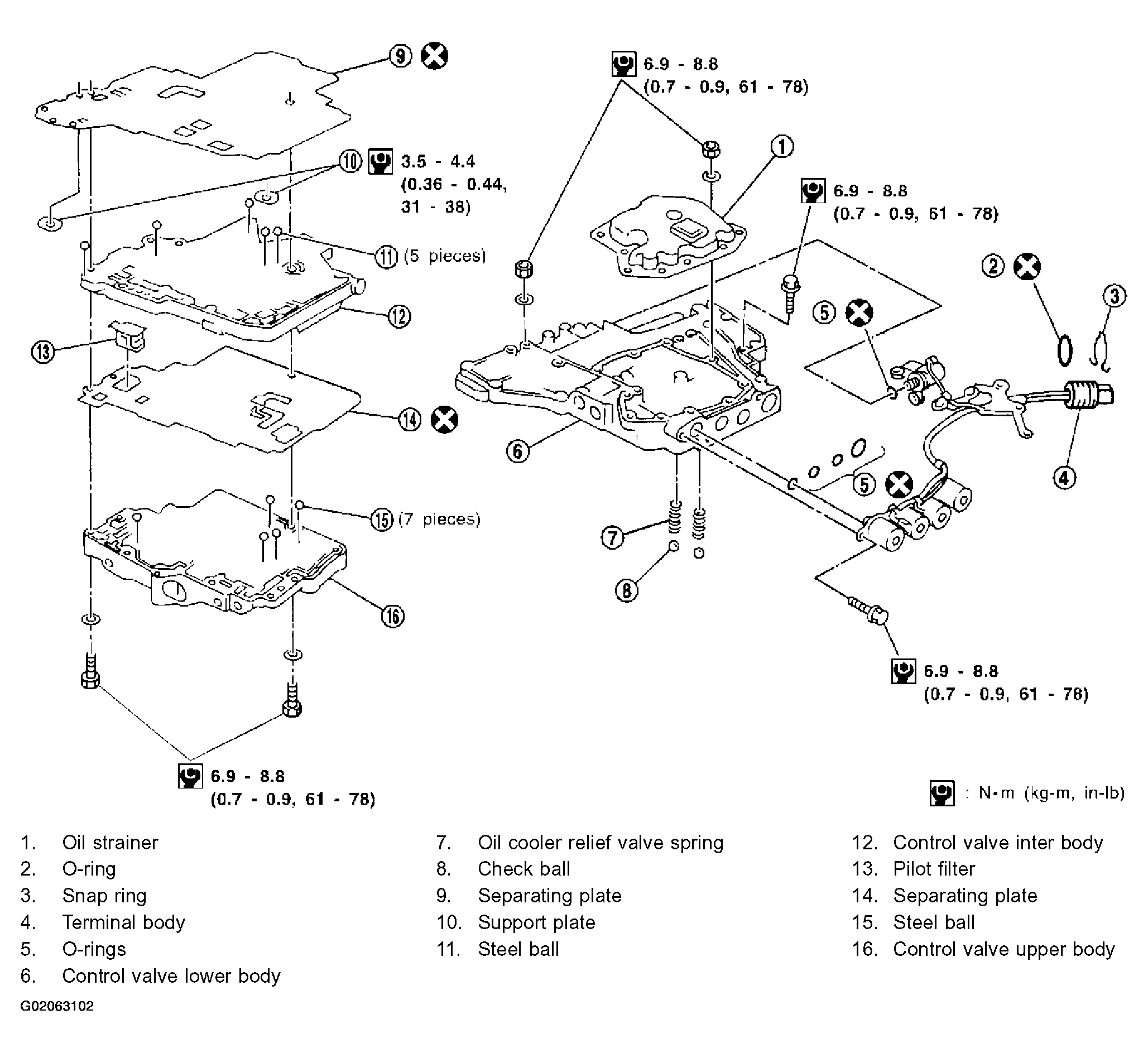

Fig 1: Identifying Control Valve Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
