DTC Confirmation Procedure

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

Before performing the following procedure, confirm that battery voltage is more than 10 volts at idle. For DTC confirmation procedure, see Fig 1 .

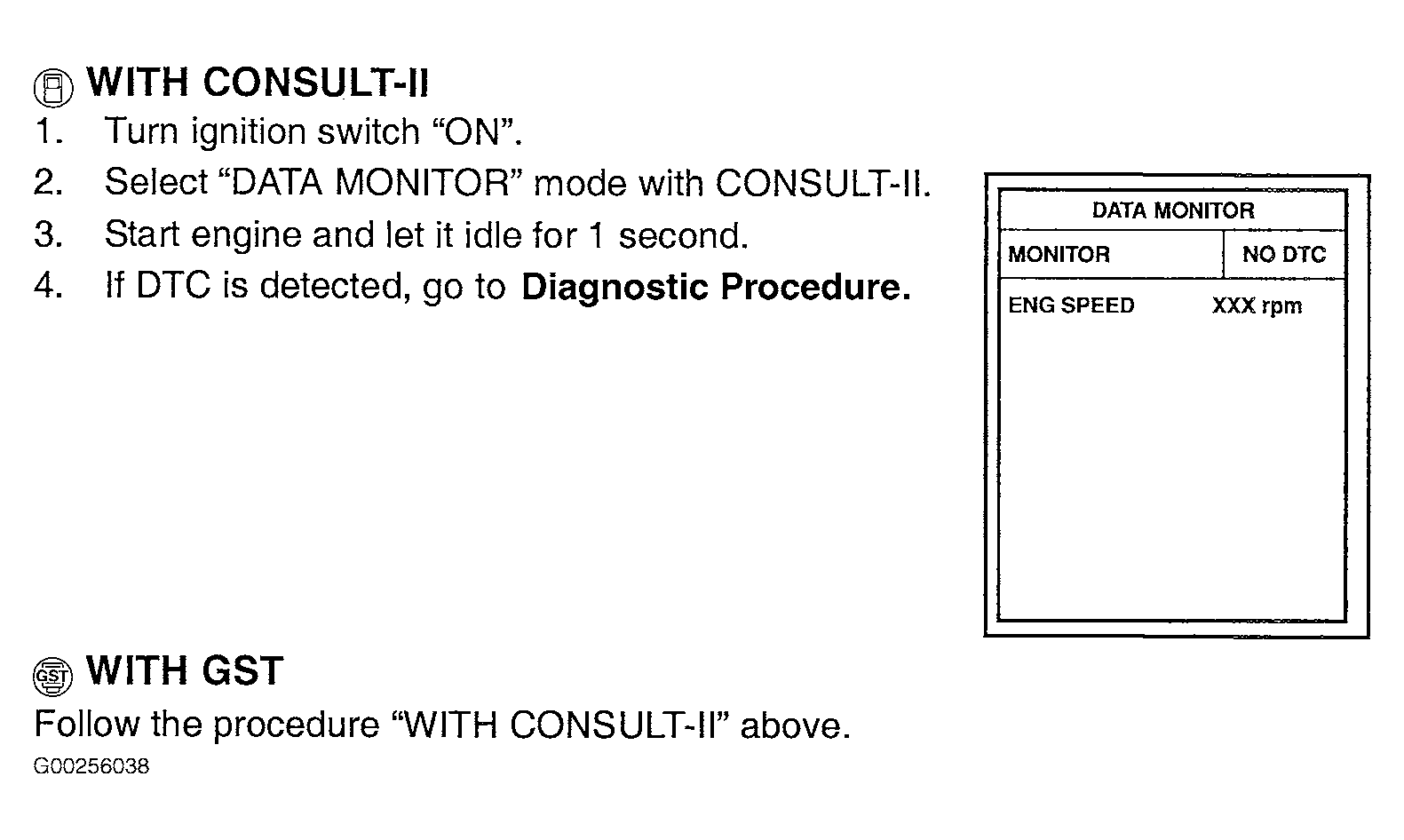

Fig 1: DTCs P0122 & P0123 Confirmation Procedure
G00256038Courtesy of NISSAN MOTOR CO., U.S.A.
