DTC P0122: Throttle Position Sensor 2 Circuit Low Input & DTC P0123: Throttle Position Sensor 2 Circuit High Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure
For the diagnostic procedure, see
Fig 1
and
Fig 2
.

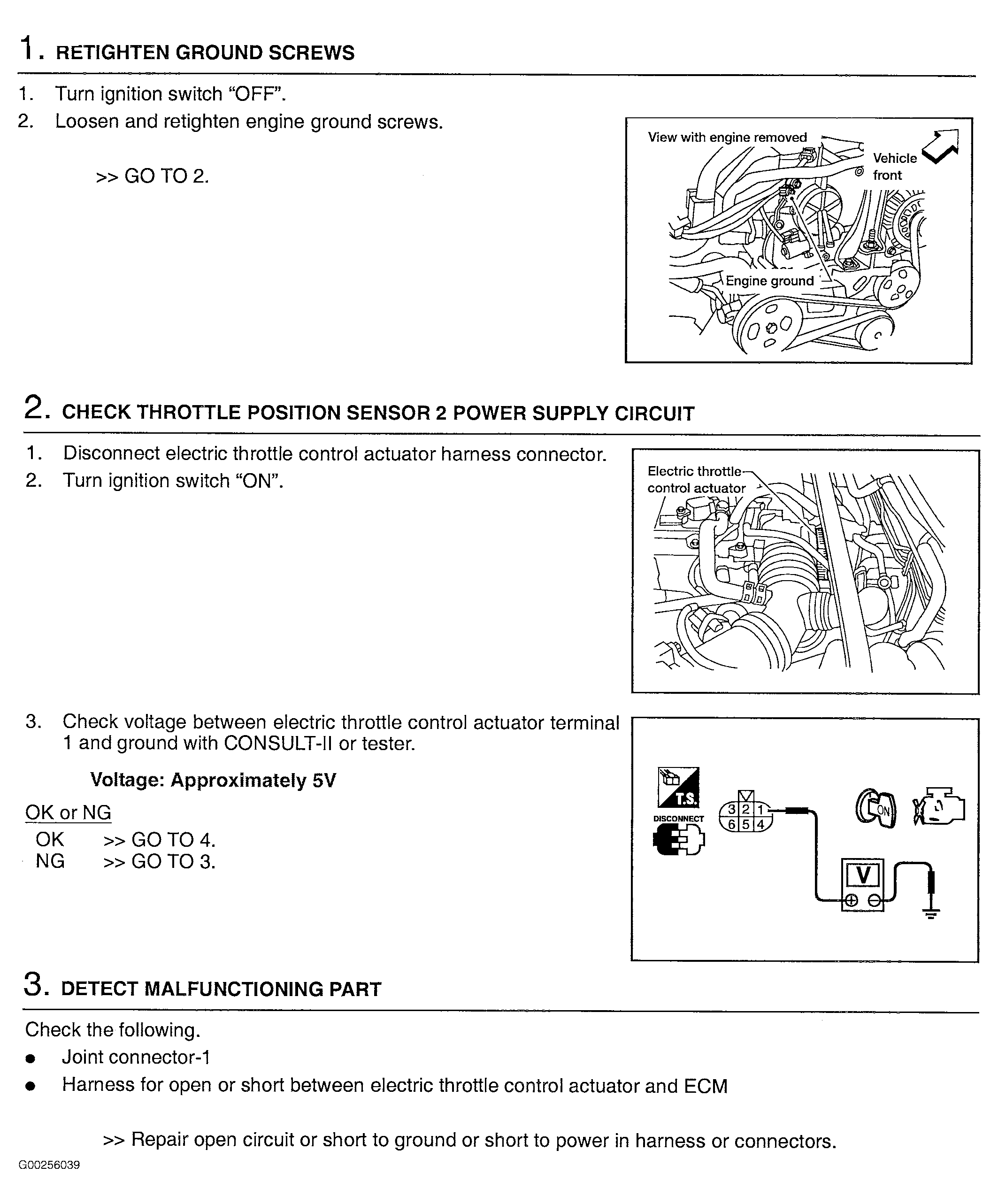

Fig 1: DTCs P0122 & P0123 Diagnostic Procedure (Steps 1-3)
Courtesy of NISSAN MOTOR CO., U.S.A.

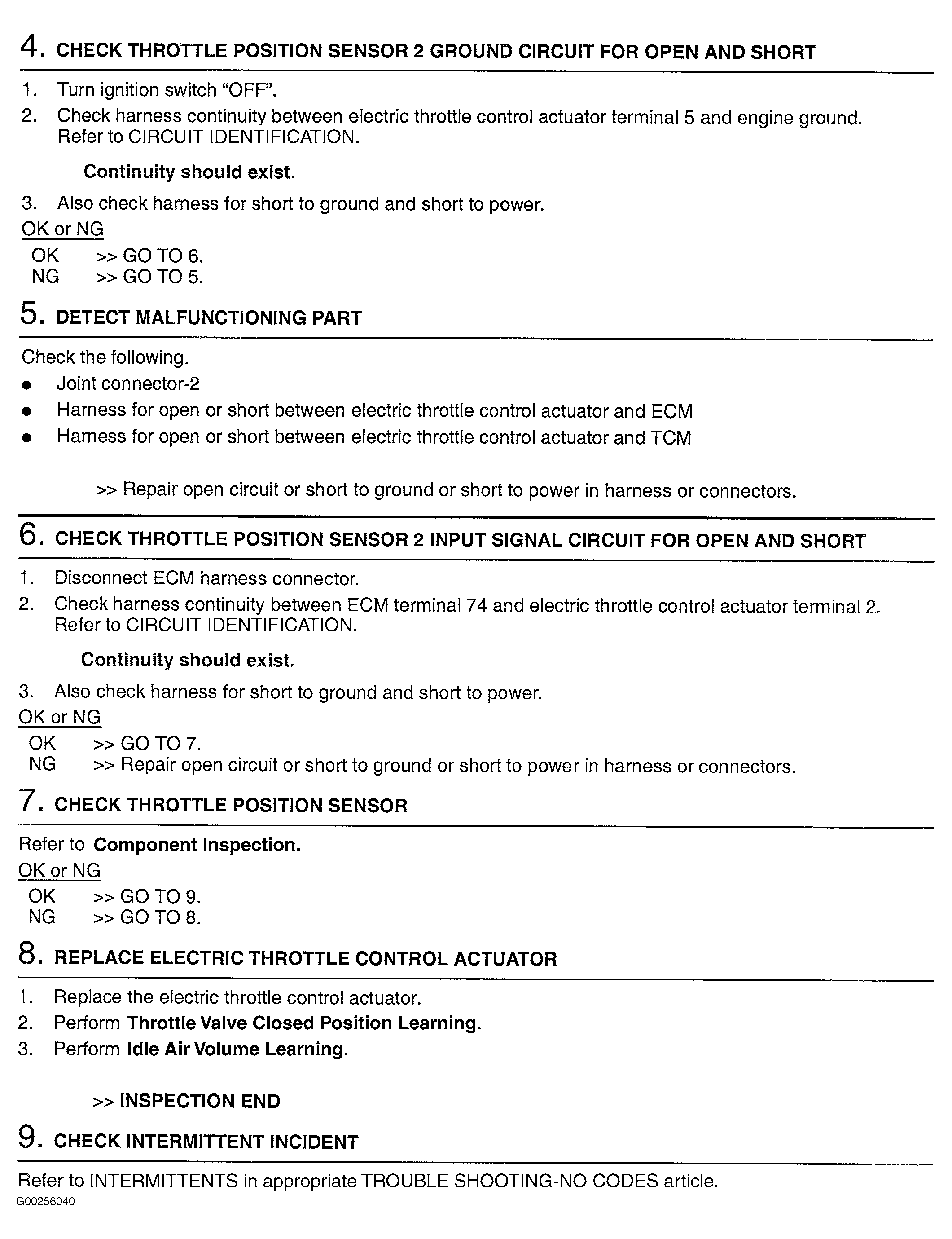

Fig 2: DTCs P0122 & P0123 Diagnostic Procedure (Steps 4-9)
Courtesy of NISSAN MOTOR CO., U.S.A.
