On Board Diagnosis Logic

For on board diagnosis logic, see Fig 1 .

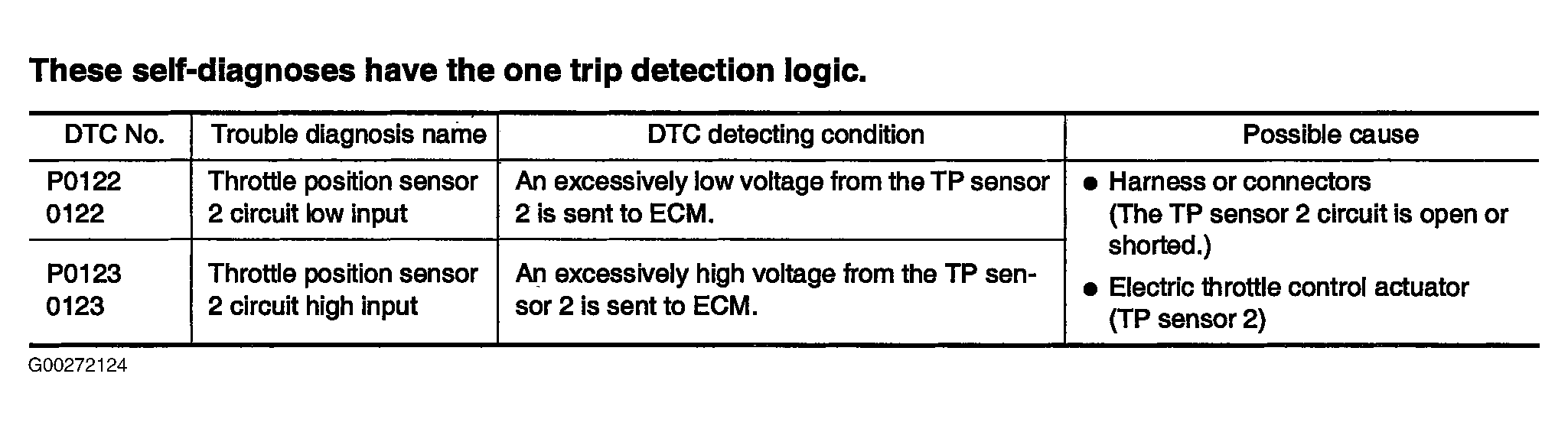

Fig 1: DTCs P0122 & P0123 On Board Diagnosis Logic
G00272124Courtesy of NISSAN MOTOR CO., U.S.A.
