Circuit Identification

For circuit identification, see Fig 1 and Fig 2 .

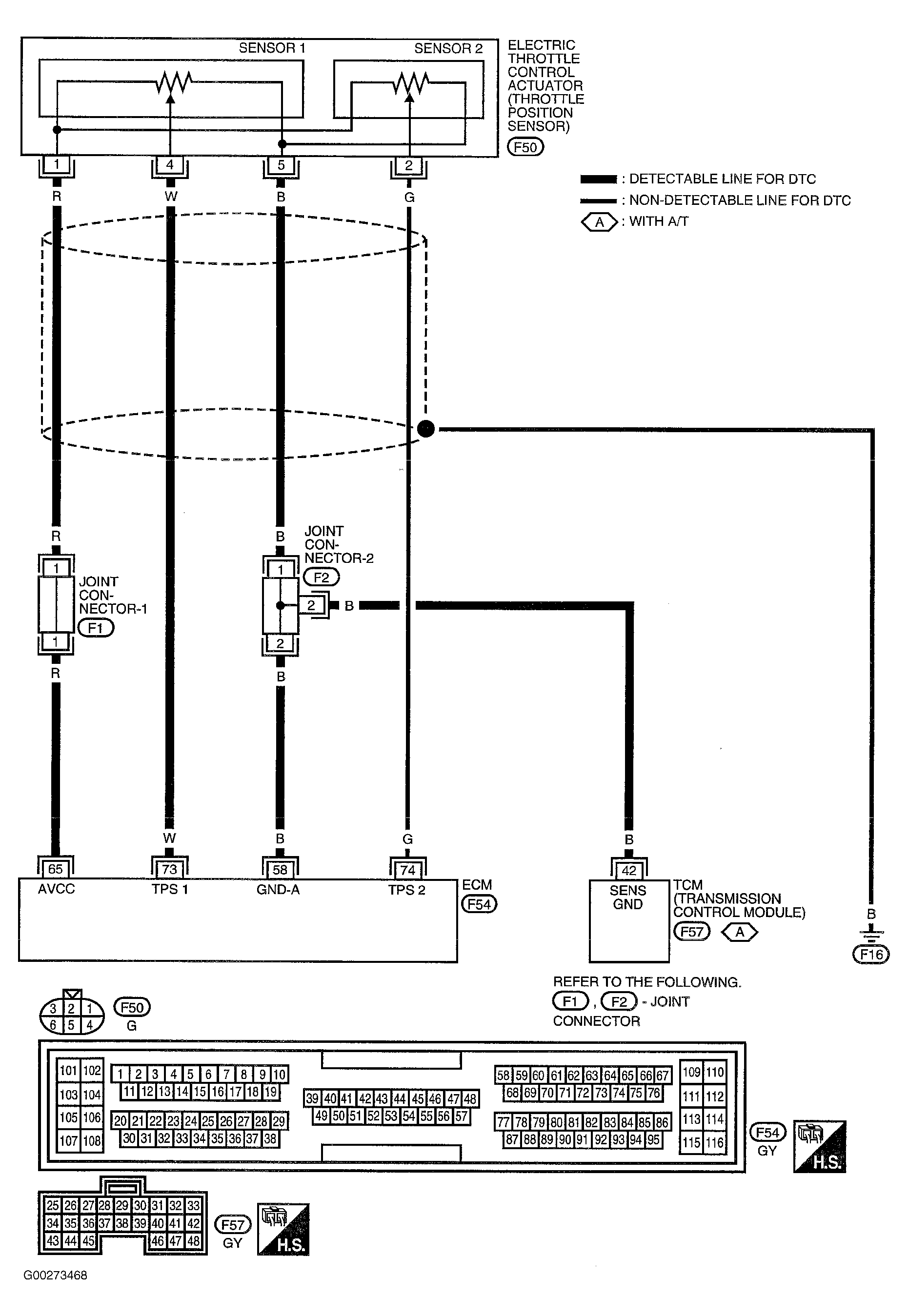

Fig 1: DTCs P0222 & P0223 Throttle Position (TP) Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: DTCs P0222 & P0223 Throttle Position (TP) Sensor Circuit Terminal Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
