DTC Confirmation Procedure

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
NOTE: Before performing the following procedure, confirm that battery voltage is more than 10 volts at idle.

For DTC confirmation procedure, see Fig 1

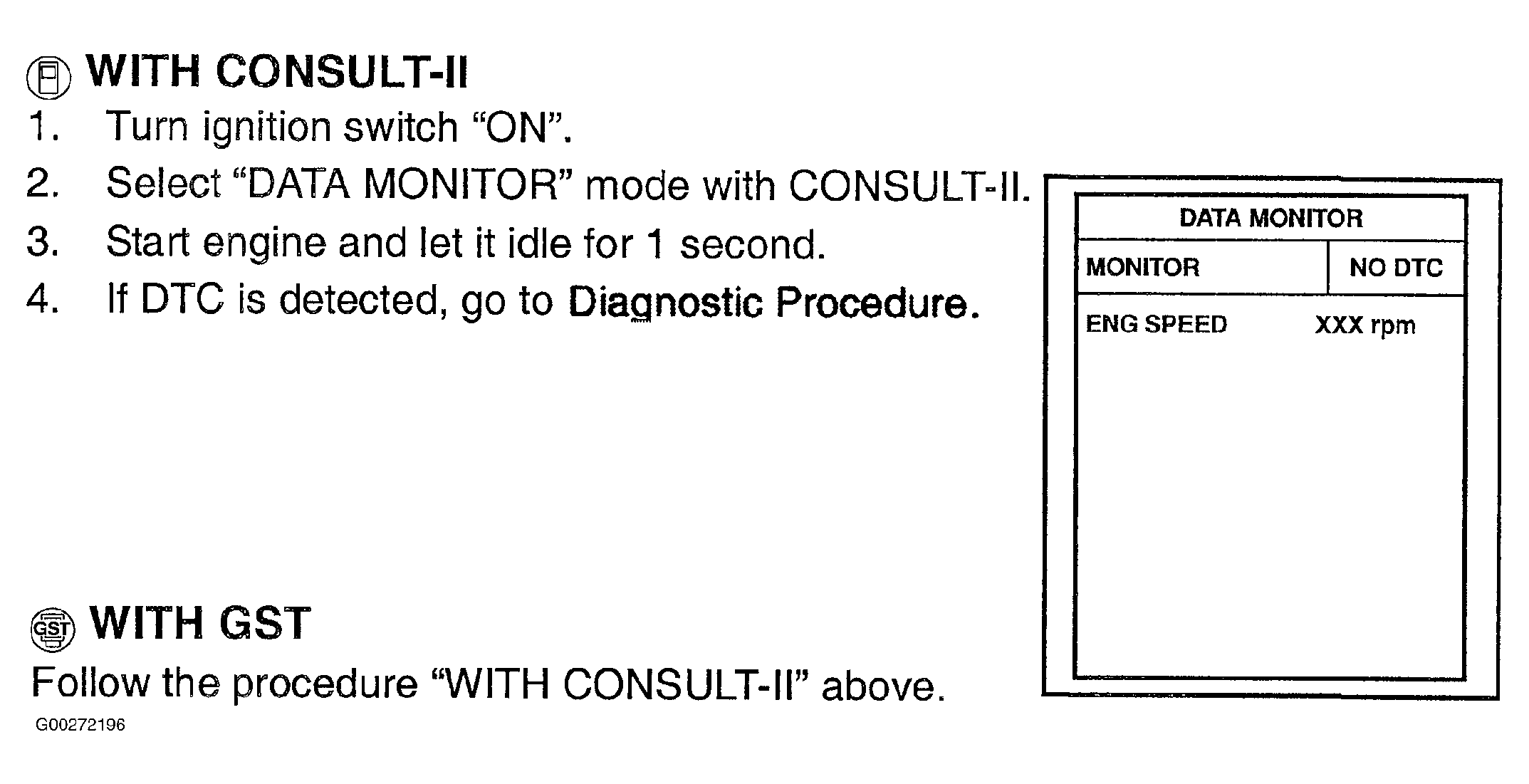

Fig 1: DTCs P0222 & P0223 Confirmation Procedure
G00272196Courtesy of NISSAN MOTOR CO., U.S.A.
