Component Inspection

For component inspection, see Fig 1 .

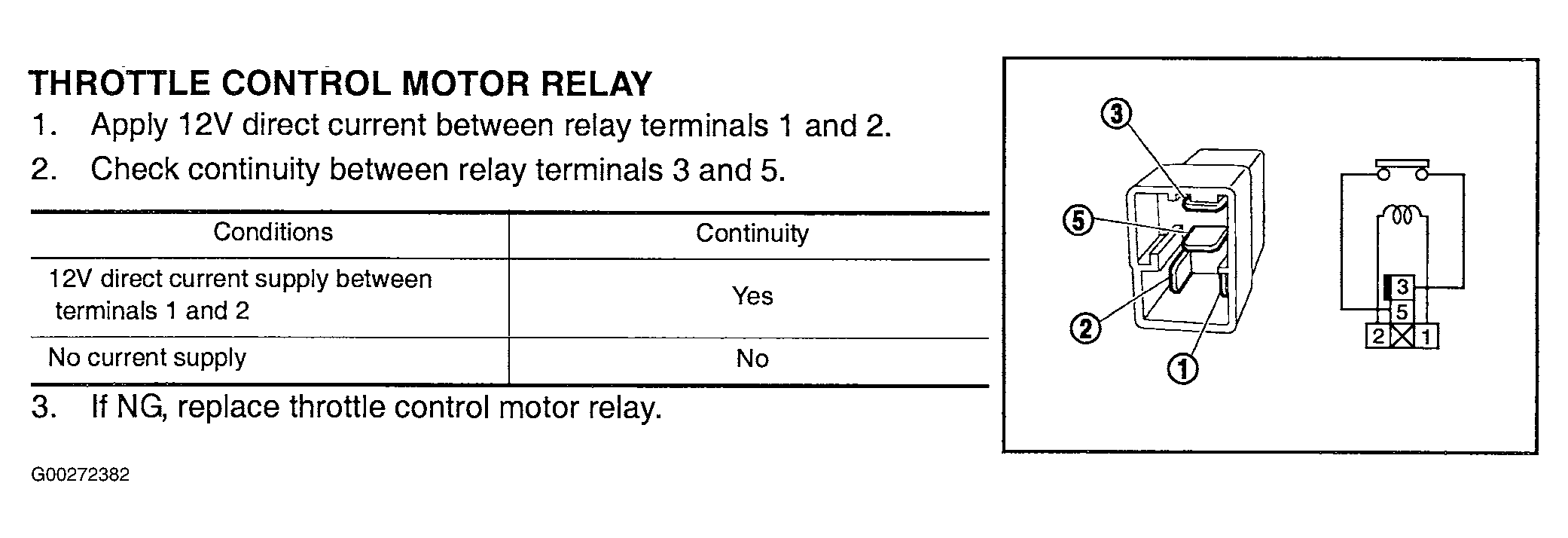

Fig 1: DTCs P1124 & P1126 Component Inspection
G00272382Courtesy of NISSAN MOTOR CO., U.S.A.
