CONSULT-II Reference Values
For CONSULT-II reference values, see
Fig 1
.

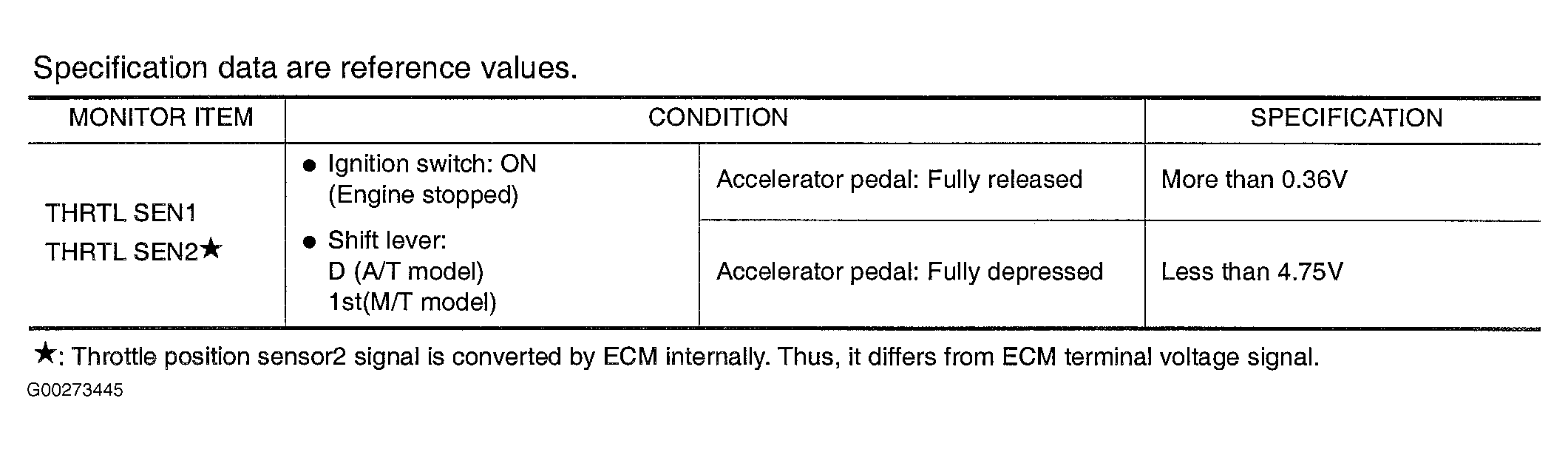

Fig 1: DTCs P0122 & P0123 CONSULT-II Reference Values In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
