Circuit Identification
For circuit identification, see
Fig 1
and
Fig 2
.

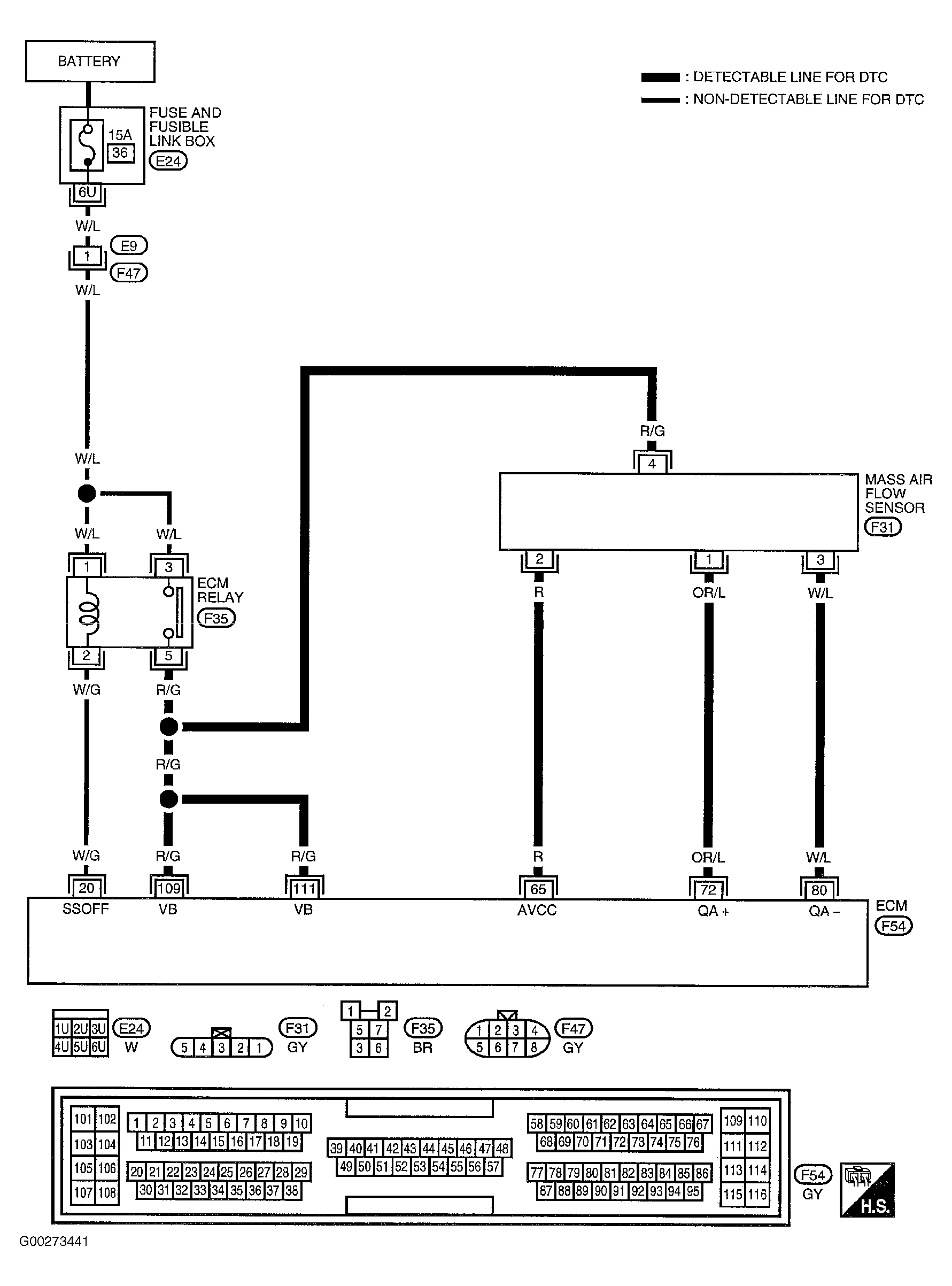

Fig 1: DTCs P0102 & P0103 MAF Sensor Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

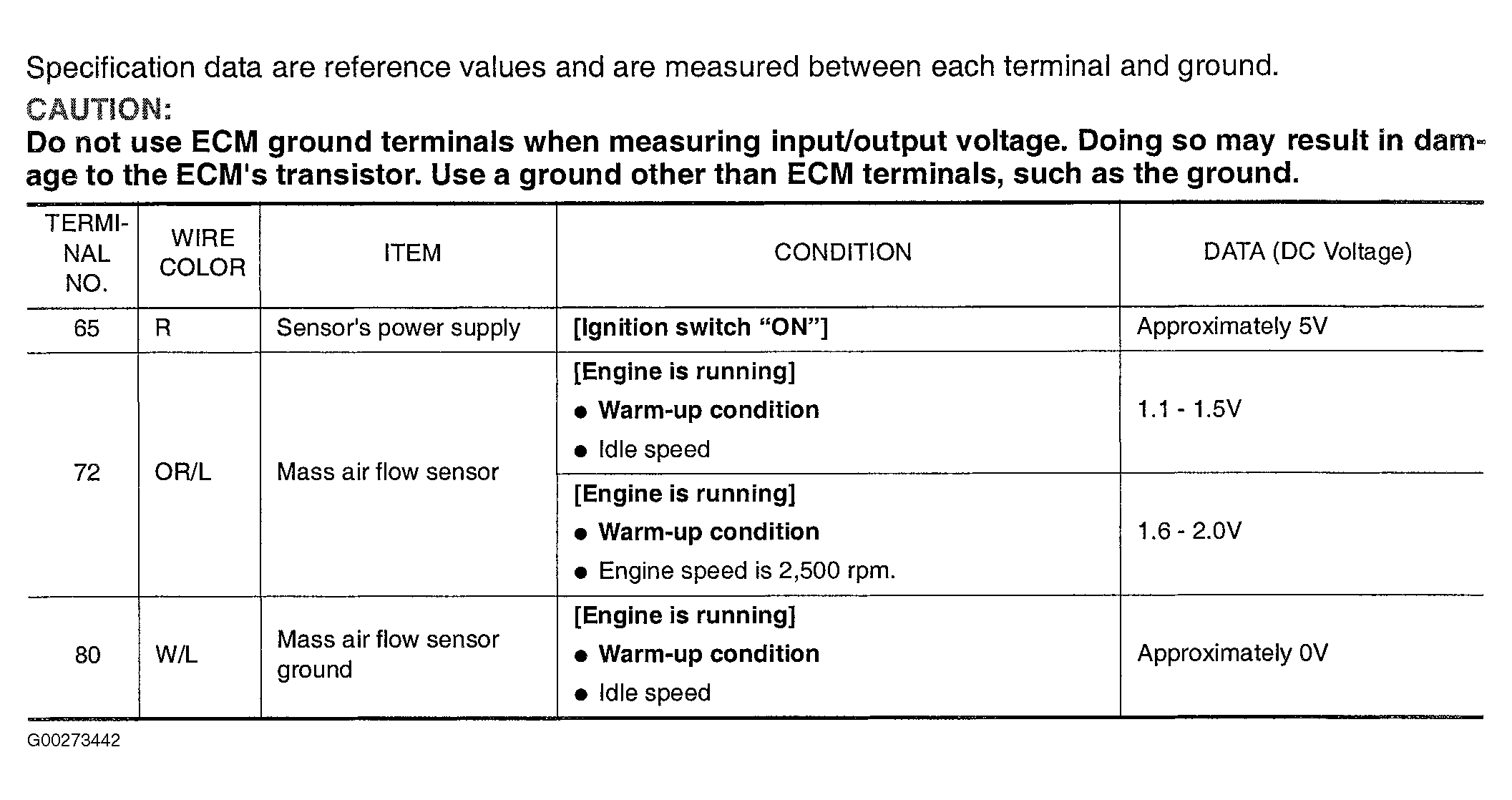

Fig 2: DTCs P0102 & P0103 MAF Sensor Circuit Terminal Identification
Courtesy of NISSAN MOTOR CO., U.S.A.
