Diagnostic Procedure
For the diagnostic procedure, see
Fig 1
-
Fig 3
.

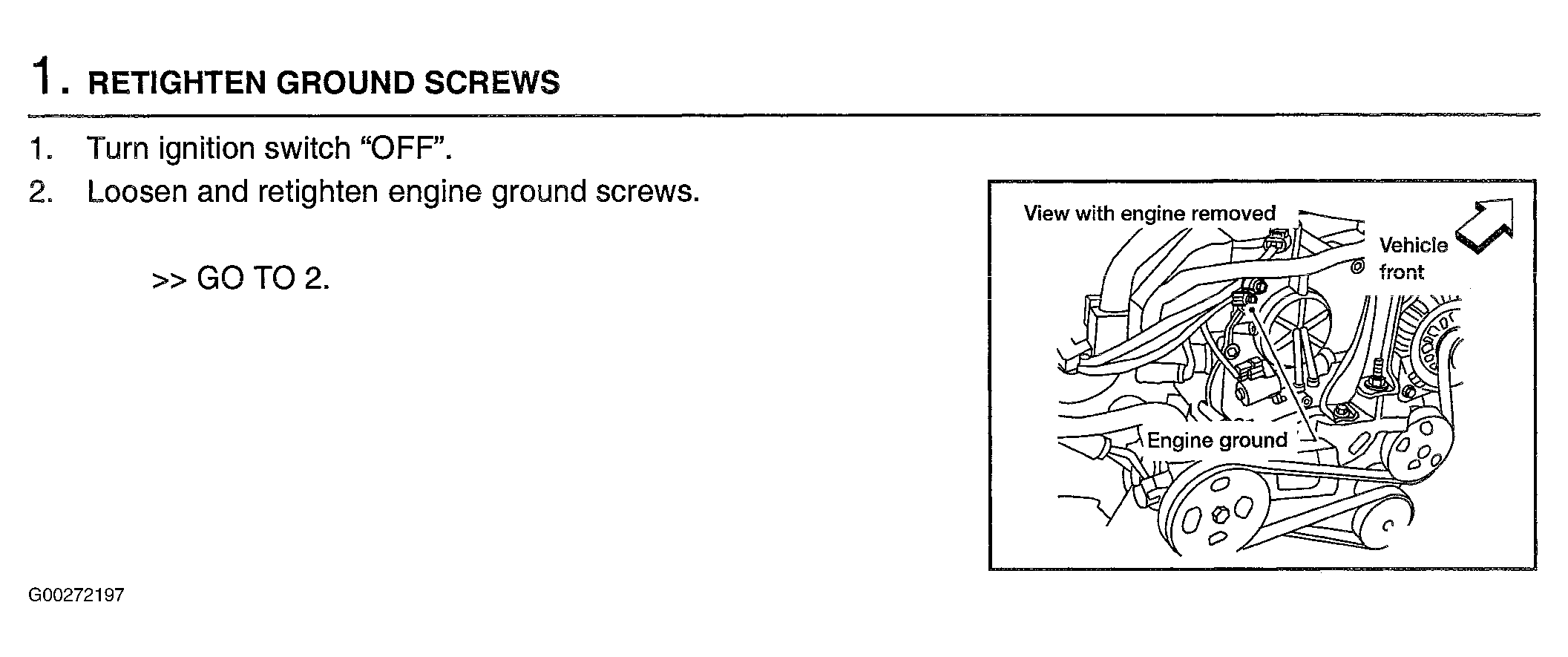

Fig 1: DTCs P0222 & P0223 Diagnostic Procedure (Step 1)
Courtesy of NISSAN MOTOR CO., U.S.A.

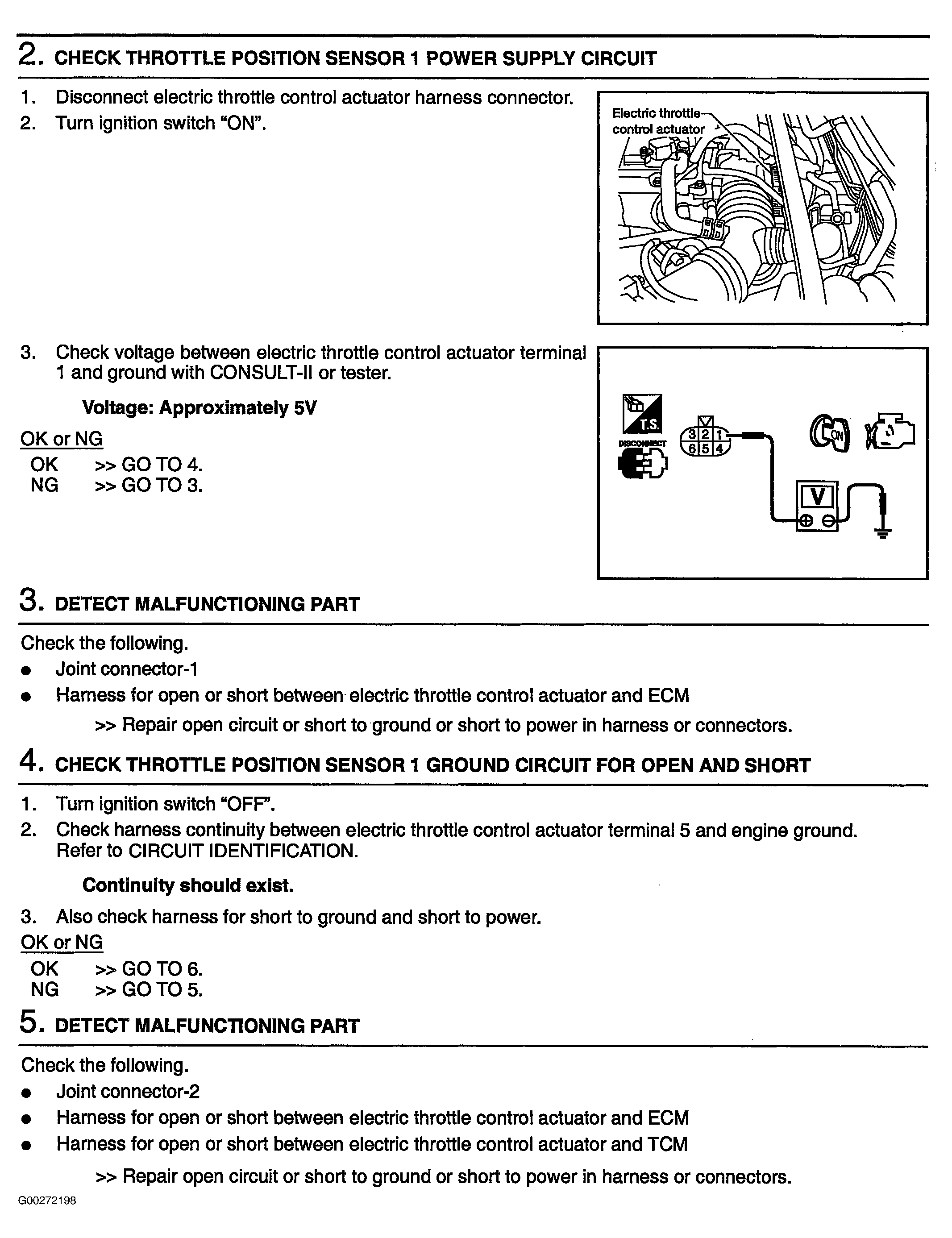

Fig 2: DTCs P0222 & P0223 Diagnostic Procedure (Steps 2-5)
Courtesy of NISSAN MOTOR CO., U.S.A.

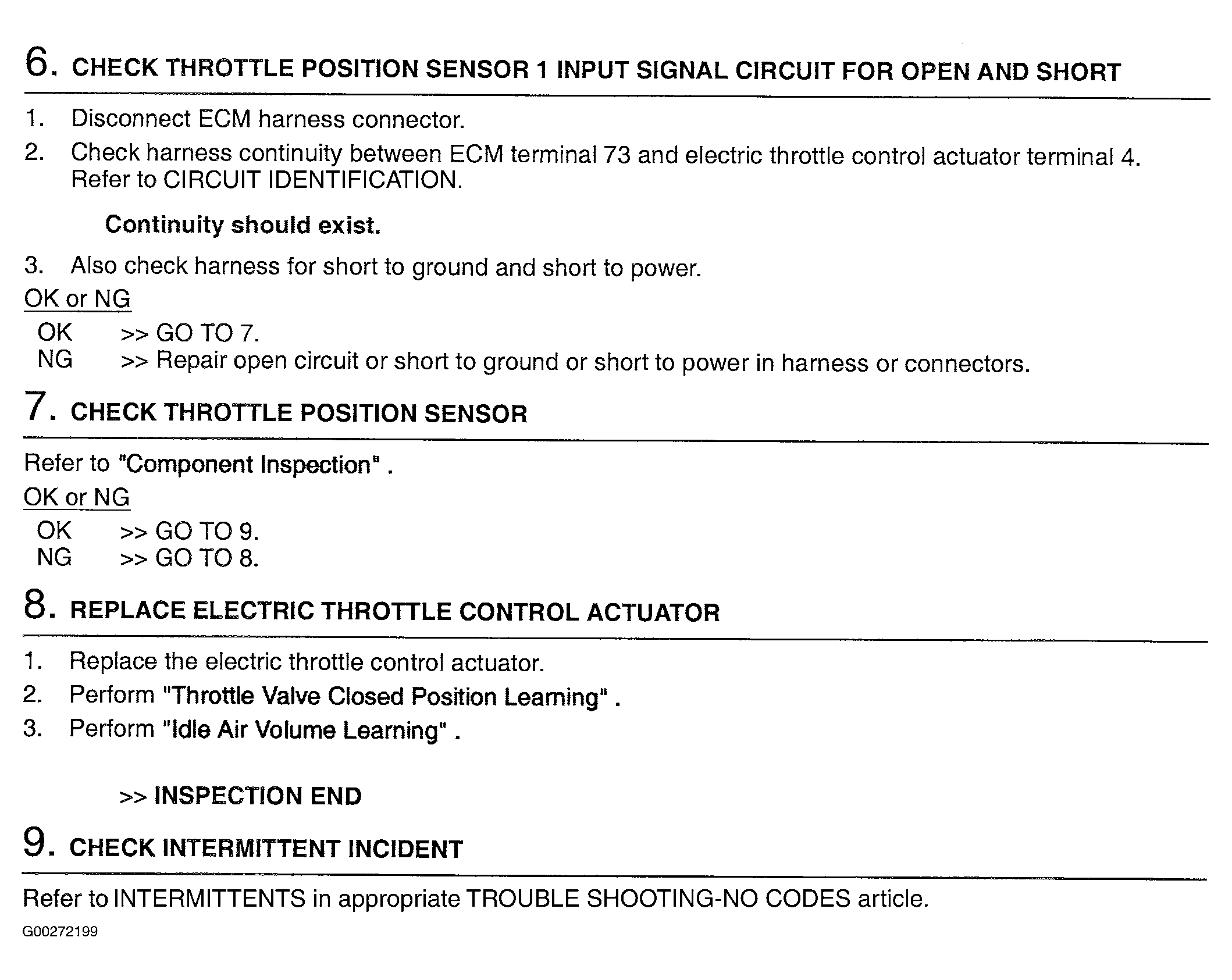

Fig 3: DTCs P0222 & P0223 Diagnostic Procedure (Steps 6-9)
Courtesy of NISSAN MOTOR CO., U.S.A.
