Engine Controls - Self-Diagnostics (Qr25DE)
>>
Diagnostic Tests
>>
DTC P0462: Fuel Level Sensor Circuit Low Input Or DTC P0463: Fuel Level Sensor Circuit High Input
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure
For diagnostic procedure, see
Fig 1
and
Fig 2
.

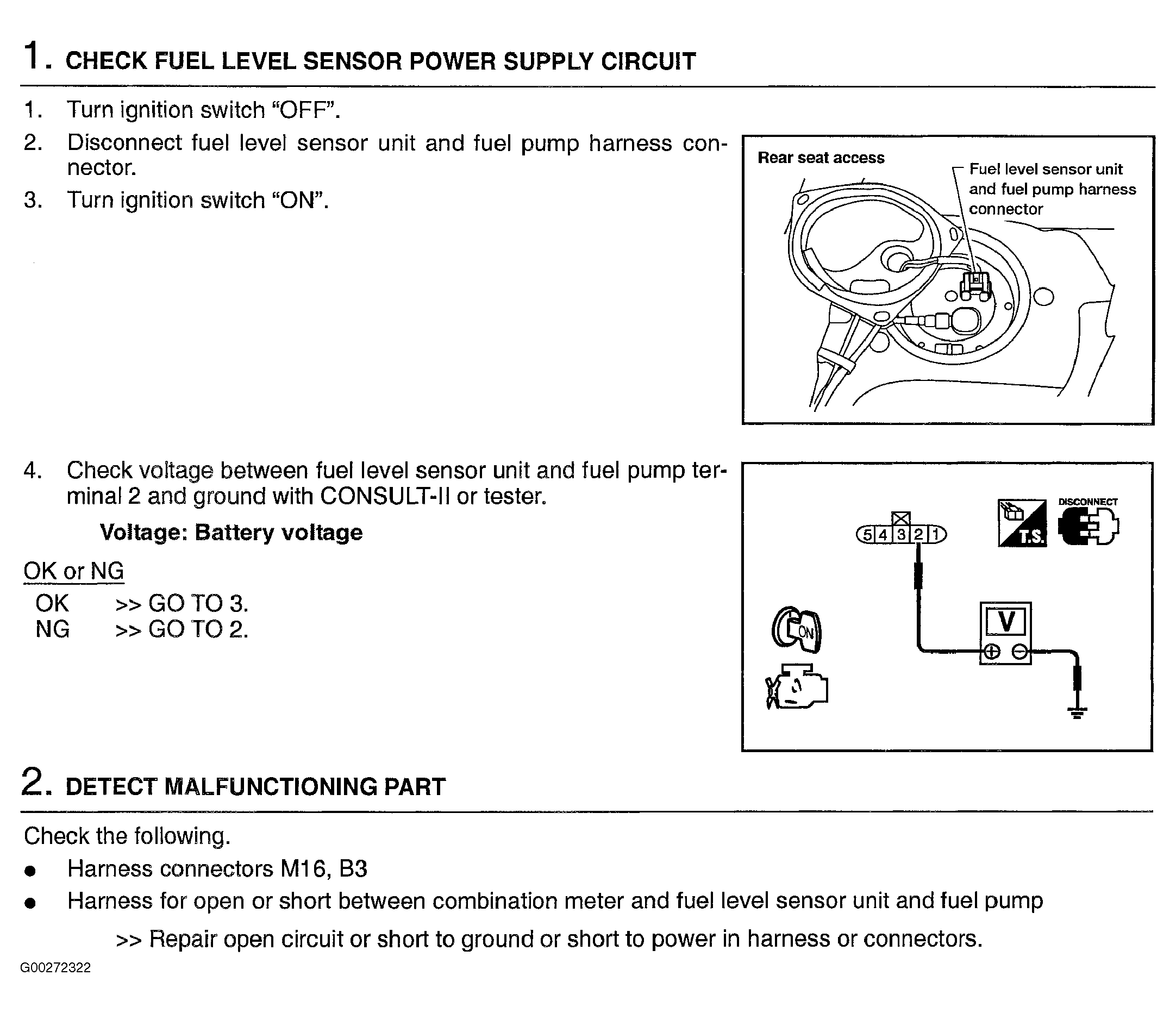

Fig 1: DTCs P0462 & P0463 Diagnostic Procedure (Steps 1 & 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

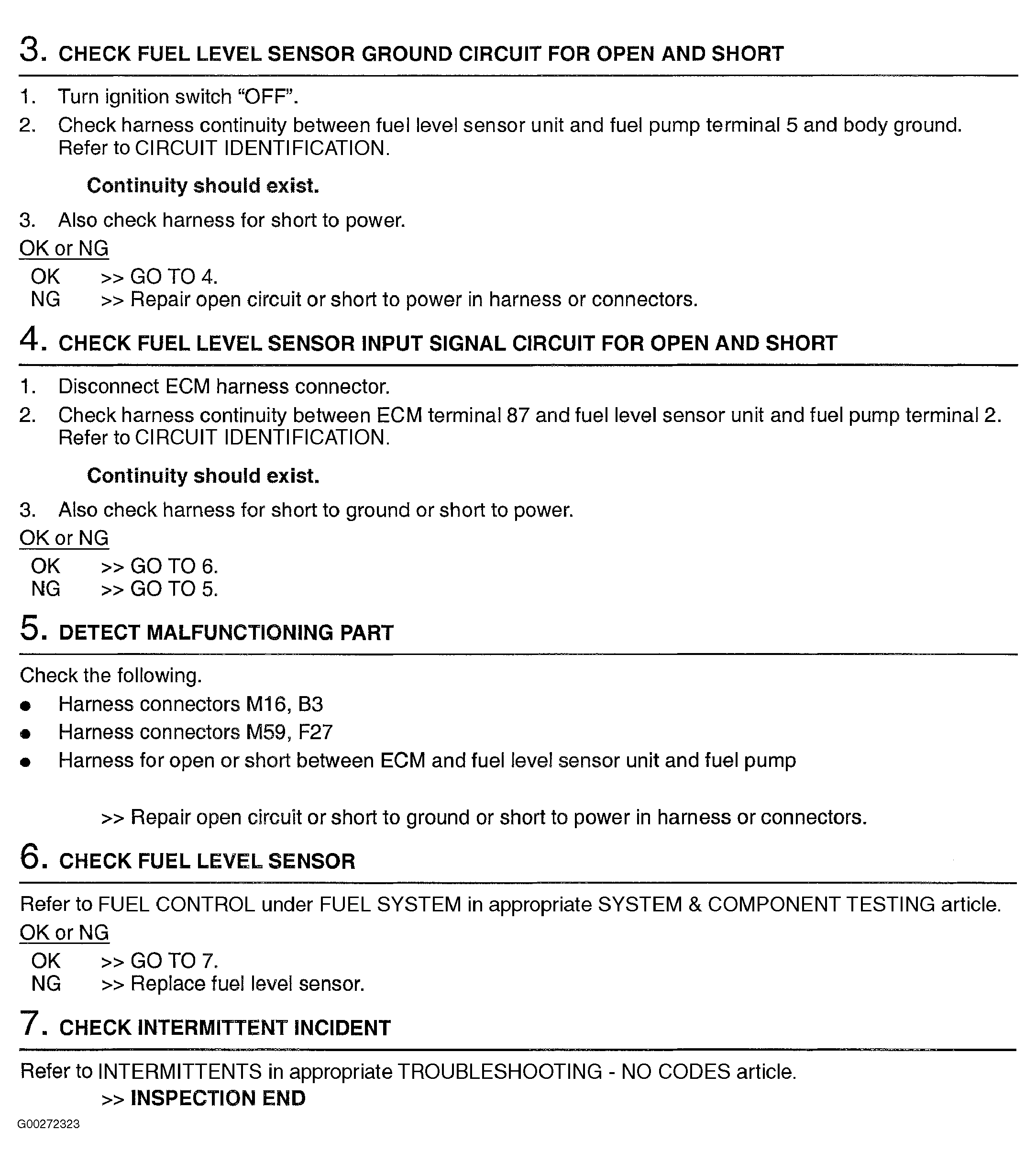

Fig 2: DTCs P0462 & P0463 Diagnostic Procedure (Steps 3-7)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
