On Board Diagnosis Logic

For on board diagnosis logic, see Fig 1 .

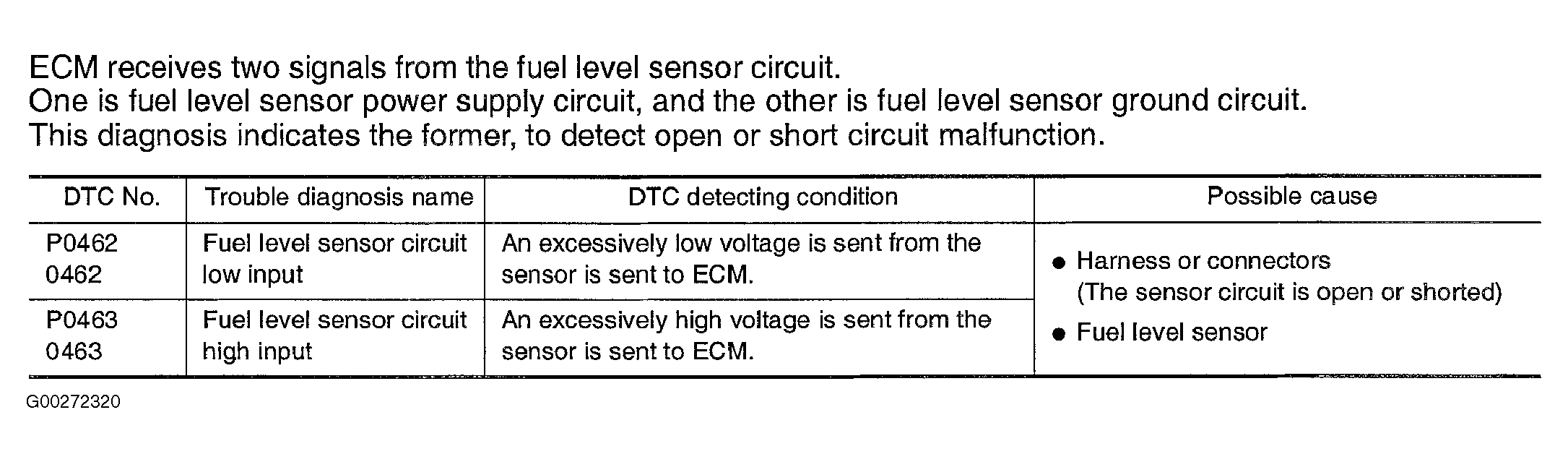

Fig 1: DTCs P0462 & P0463 On Board Diagnosis Logic
G00272320Courtesy of NISSAN MOTOR CO., U.S.A.
