DTC Confirmation Procedure

For DTC confirmation procedure, see Fig 1 .

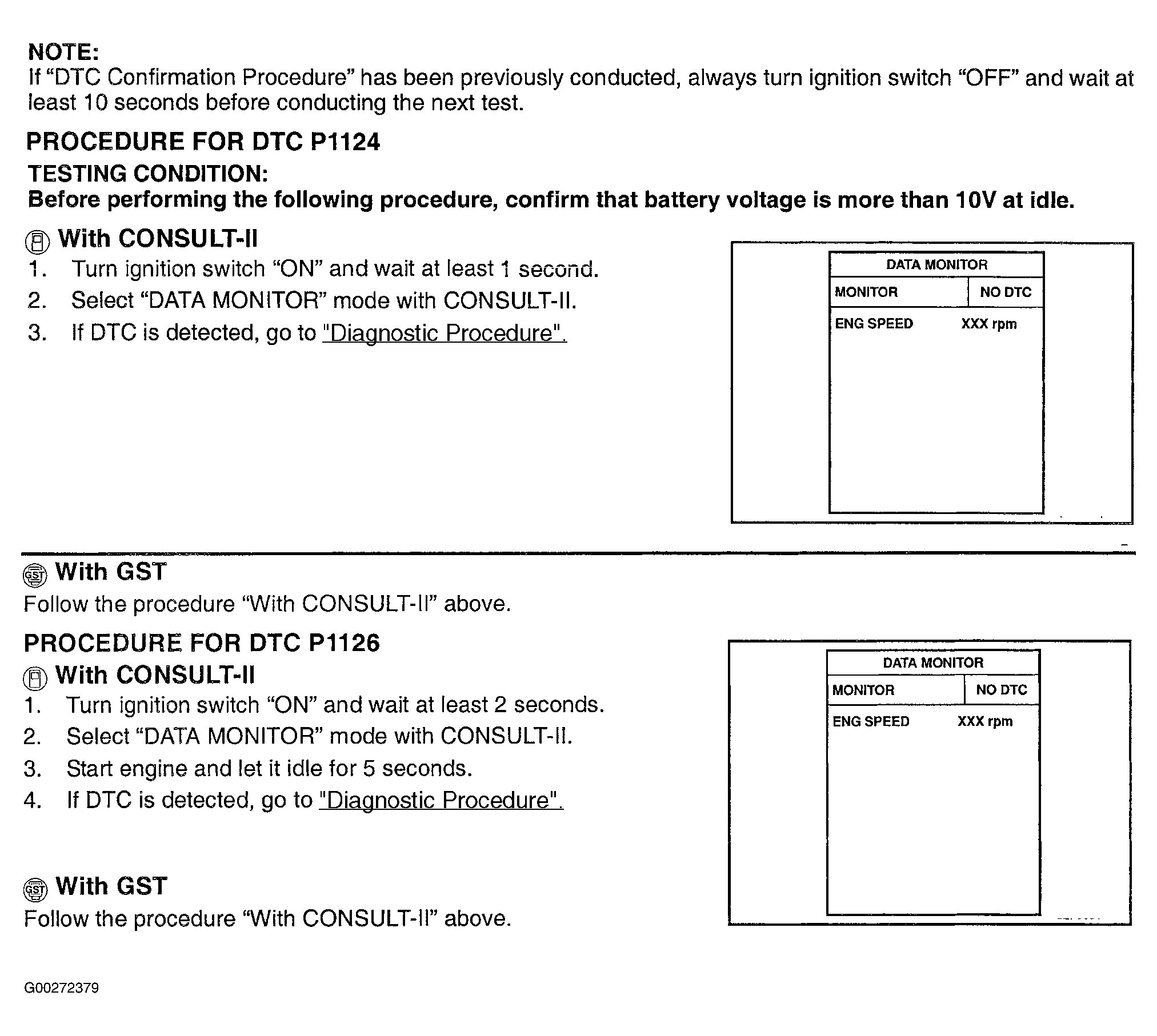

Fig 1: DTCs P1124 & P1126 Confirmation Procedure
G00272379Courtesy of NISSAN MOTOR CO., U.S.A.
