With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
  2. Select "TRUNK/BACK DOOR" and touch "ON".

    Trunk release solenoid should operate.

NOTE: If CONSULT-II is not available, GO TO 3  .

OK or NG

  1. OK >> Trunk lamp switch and trunk release solenoid circuit is OK.
  2. NG >> Repair or replace harness.

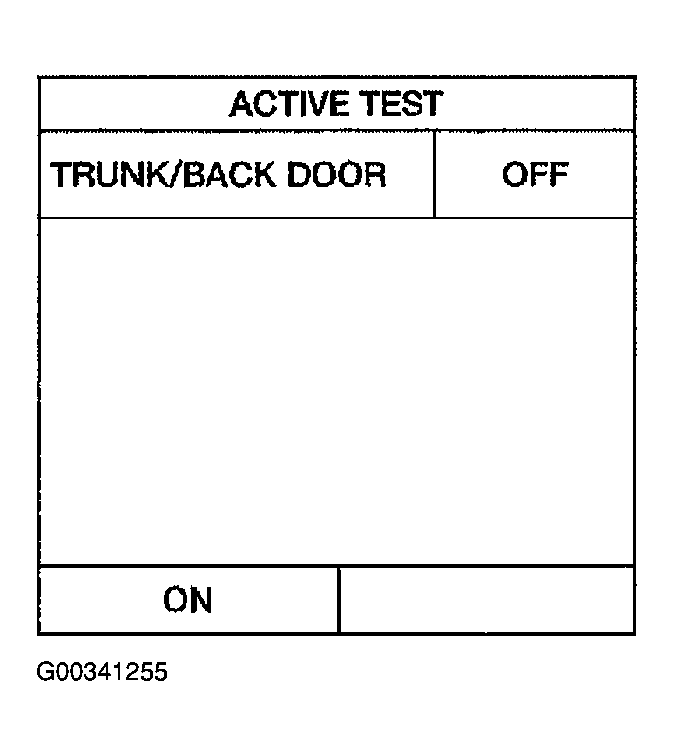

Fig 1: Checking Trunk Lamp Switch And Trunk Release Solenoid Operation With CONSULT-II
G00341255Courtesy of NISSAN MOTOR CO., U.S.A.
