Removal and Installation: Actuator

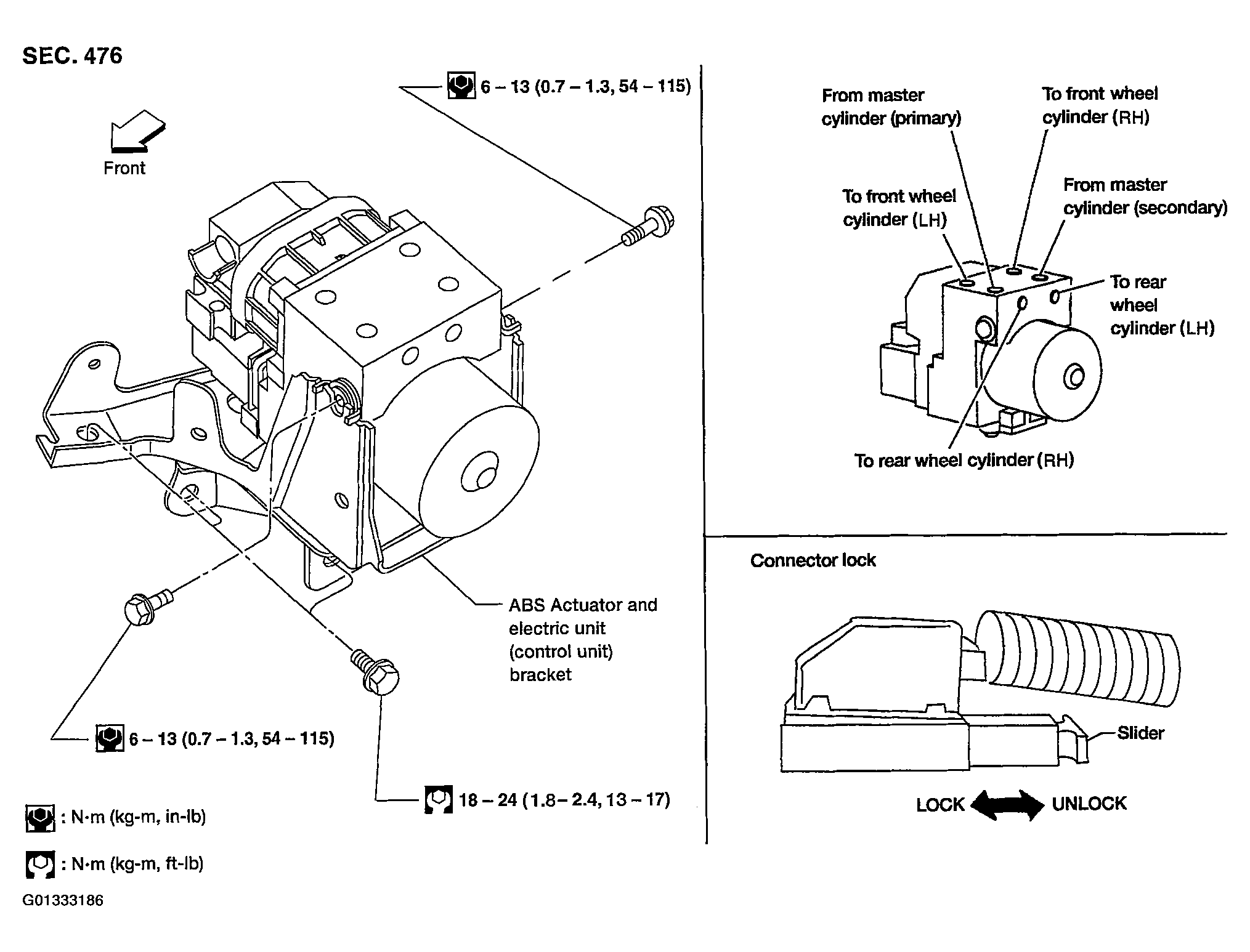

Fig 1: Removing Actuator And Torque Specifications
G01333186Courtesy of NISSAN MOTOR CO., U.S.A.

Removal

  1. Disconnect negative battery cable.
  2. Drain brake fluid. Refer to DISC & DRUM .
  3. Remove the A/C high pressure and A/C low pressure lines. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove strut tower bar (if equipped).
  5. Remove mounting bracket bolts.
  6. Disconnect harness connector and brake lines.

Installation

  1. Connect brake lines temporarily.
  2. Tighten bolts.
  3. Tighten brake lines.
  4. Connect harness connector and negative battery cable.
  5. Install strut tower bar (if equipped).
  6. Refill and bleed the brake fluid. Then bleed air. Refer to DISC & DRUM .
  7. Install the A/C high pressure and A/C low pressure lines. Evacuate and recharge the A/C system. Refer to "EVACUATING SYSTEM AND CHARGING REFRIGERANT ".
