CHECK ACC SWITCH

With CONSULT-II

Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

MONITOR ITEM CONDITION

Monitor item	Condition
ACC SW	Ignition switch position is ACC or ON: ON
ACC SW	Ignition switch position is OFF: OFF

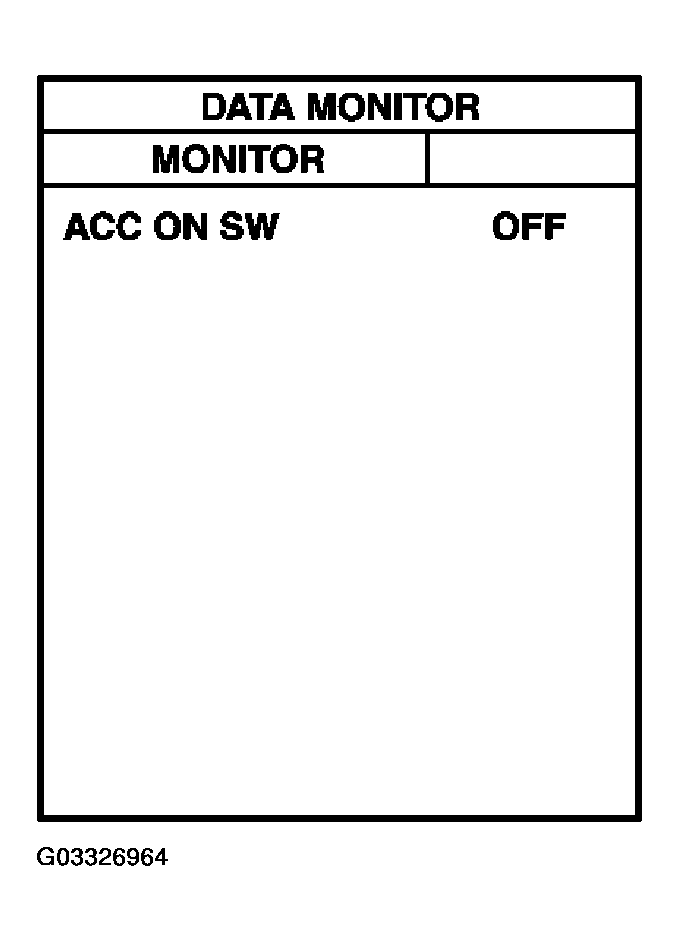

Fig 1: Displaying DATA MONITOR Mode On Consult-II Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

TERMINAL VOLTAGE

Connector	Terminal (Wire color)		Ignition switch position	Voltage [V] (Approx.)
Connector	(+)	(-)	Ignition switch position	Voltage [V] (Approx.)
M1	11 (LG/R)	Ground	ACC	Battery voltage
M1	11 (LG/R)	Ground	OFF	0

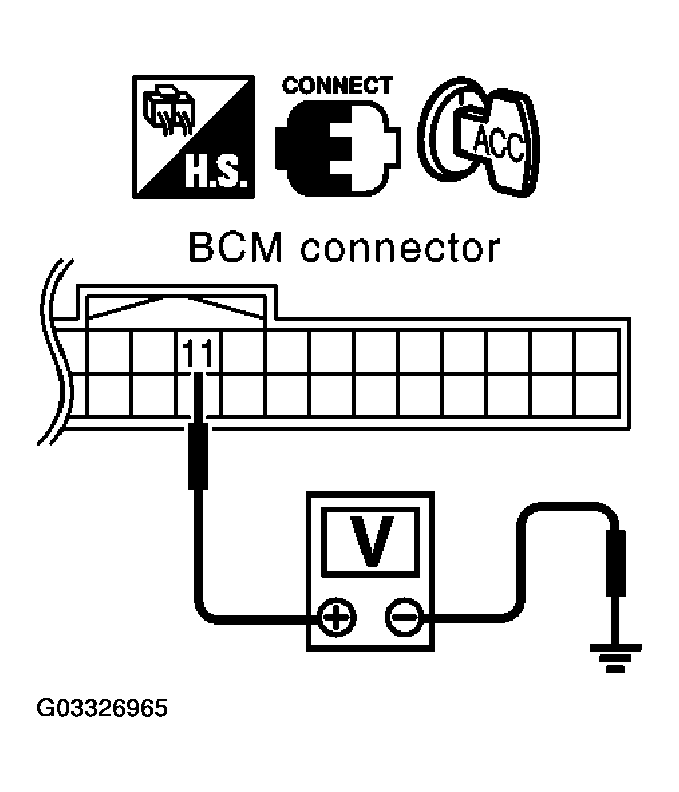

Fig 2: Checking ACC Switch (Without CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: ACC switch is OK.
NG: Check the following.
- 10A fuse [No. 6, located in the fuse block (J/B)]
- Harness for open or short between BCM and fuse
