3. Abs/TCS/VDC Control Unit Power And Ground Circuit Inspection

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Measure the voltage and continuity between the ABS actuator and electric unit (control unit) harness connector E125 and ground.

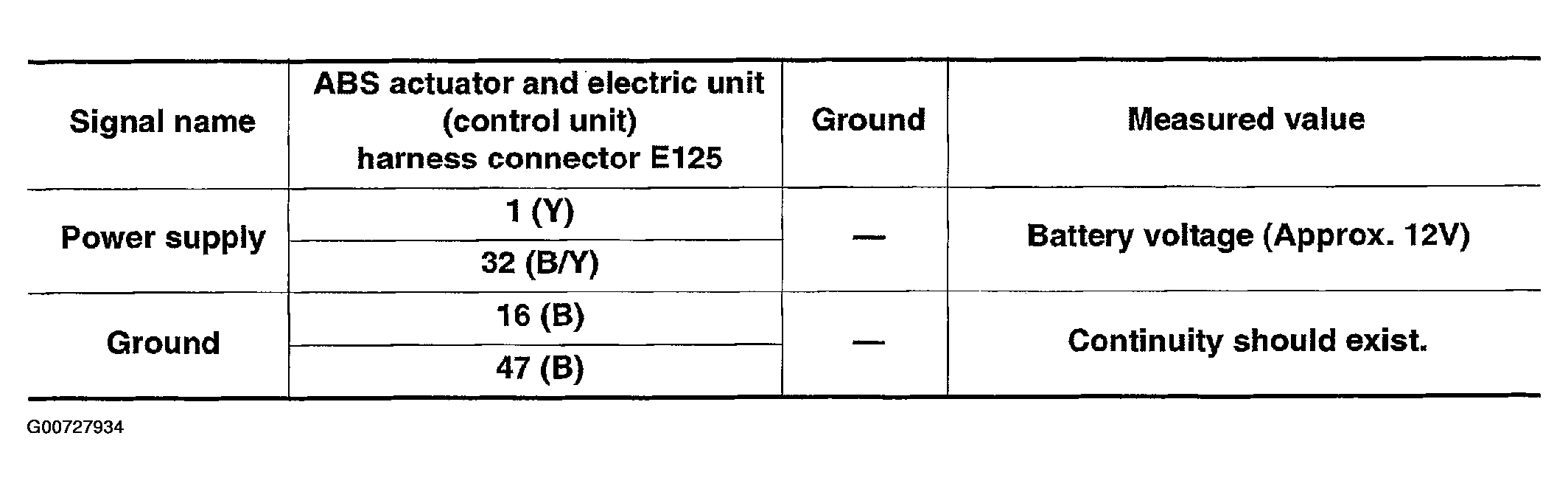

Fig 1: ABS Actuator And Electric Unit Continuity Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the battery for loose terminals, low voltage, etc. Repair as necessary.
NG: Repair the circuit.
