Check Door Switch (With Navigation System)

First perform the "SELF-DIAG RESULTS" in "BCM" with CONSULT-II, then perform the each trouble diagnosis of malfunction system indicated "SELF-DIAG RESULTS" of "BCM", Refer to  BCS-11, "CONSULT-II".

1. CHECK DOOR SWITCH INPUT SIGNAL

   With CONSULT-II

   Check door switches ("DOOR SW-DR "  and "DOOR SW-AS "  ) in "DATA MONITOR" mode with CONSULT-II.

   BCM CONNECTOR SPECIFICATION



   Monitor item	Condition
   DOOR SW-DR	CLOSE --> OPEN	OFF --> ON
   DOOR SW-AS

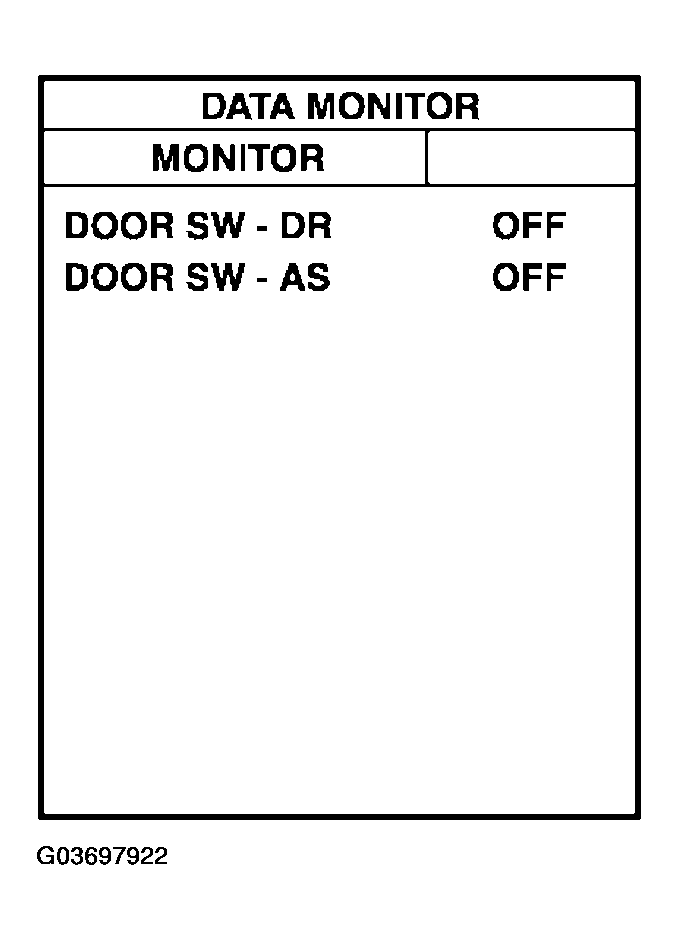

   Fig 1: Scan Tool Display Of Door Switch Input Signal

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Check voltage between combination meter connector M19 terminals 7, 6 and ground.

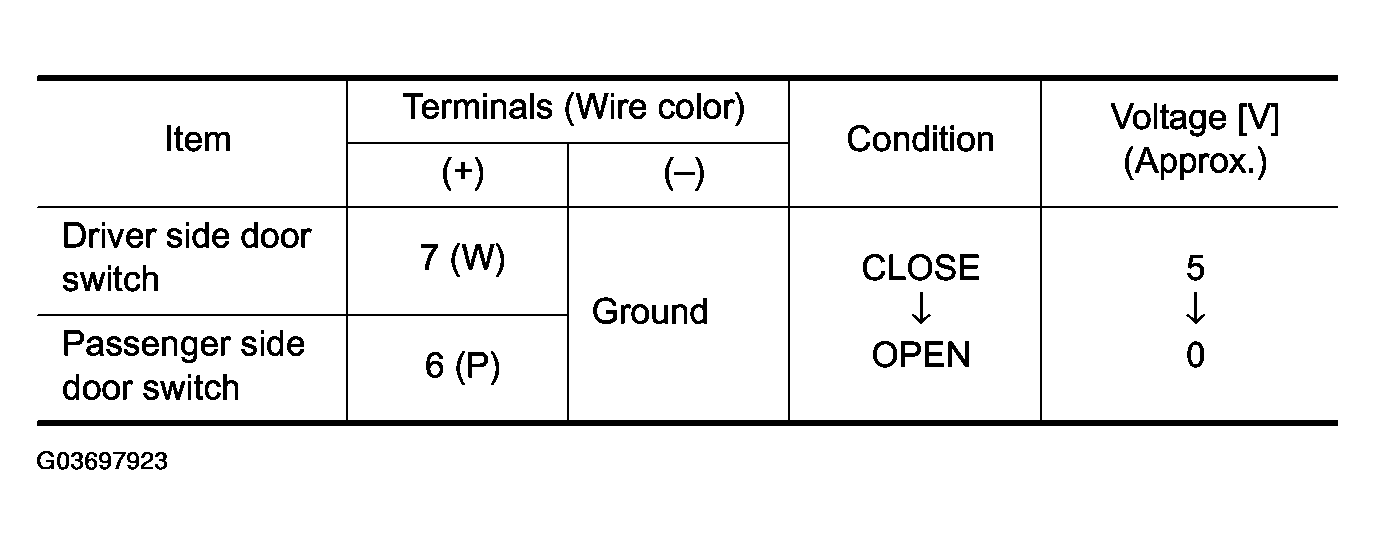

   Fig 2: Combination Meter Connector M19 Voltage Specifications Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

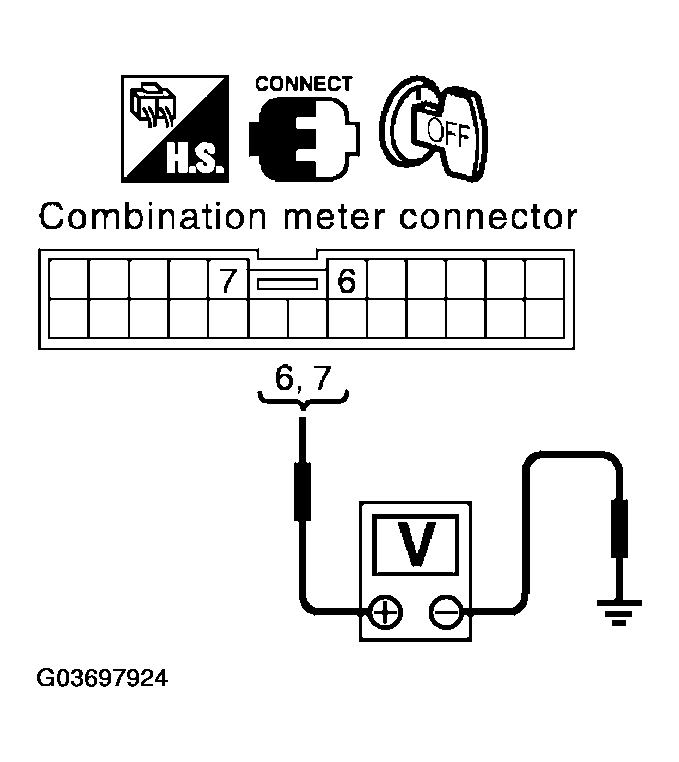

   Fig 3: Checking Voltage Between Combination Meter Connector & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: Door switch circuit is OK.
   2. NG: GO TO 2.
2. CHECK DOOR SWITCH CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect door switch and combination meter connector.
   3. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and combination meter connector M19 terminals 7, 6.

      Driver side door

      1 (G/B) - 7 (W): Continuity should exist  .

      Passenger side door

      1 (P) - 6 (P): Continuity should exist  .

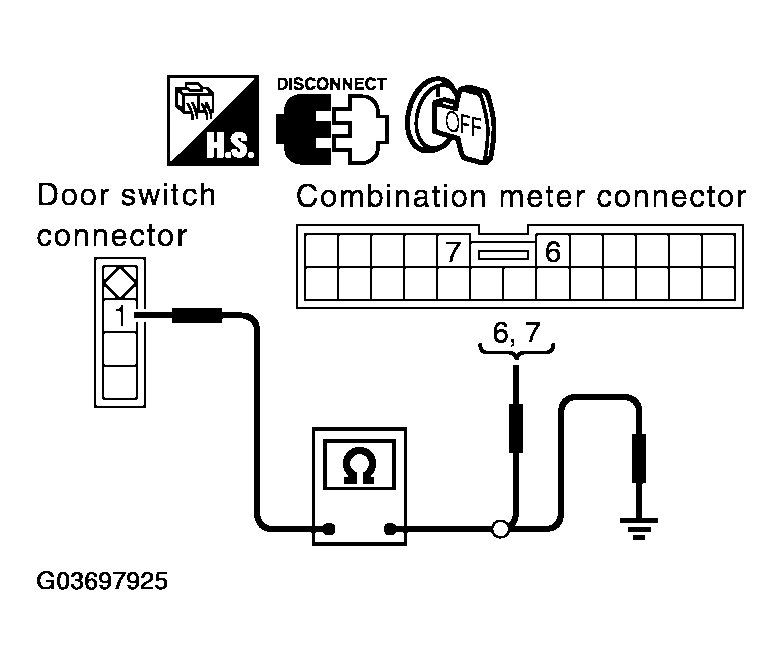

      Fig 4: Checking Continuity Of Door Switch Circuit

      Courtesy of NISSAN MOTOR CO., U.S.A.
   4. Check continuity between door switch connector B17 (driver side), B410 (passenger side) terminals 1 and ground.

      1 (G/B or P) - Ground: Continuity should not exist  .

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair or replace harness.
3. CHECK DOOR SWITCH

   Check continuity between door switch B17 (driver side) or B410 (passenger side) terminal 1 and ground part of door switch.

   DOOR SWITCH SPECIFICATION



   Terminal		Door switch	Continuity
   1	Ground part of door switch	Pushed	No
   		Released	Yes

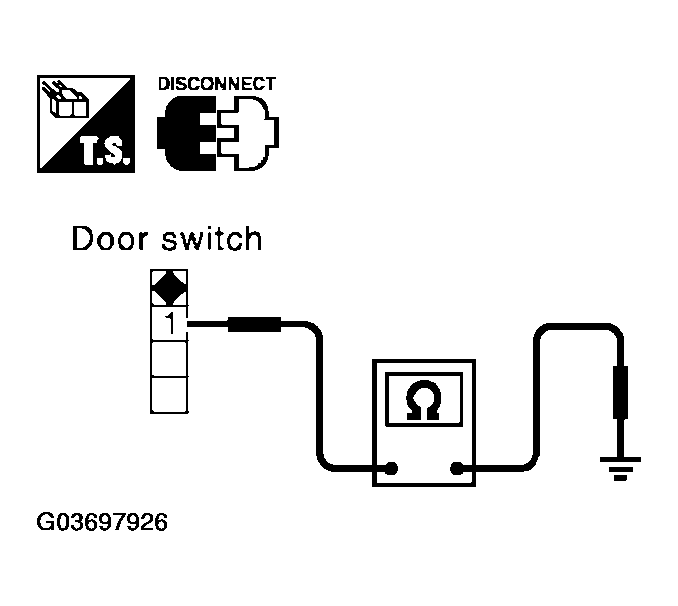

   Fig 5: Checking Continuity Between Door Switch B17 (Driver Side) Or B410 (Passenger Side) Terminal 1 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 4.
   2. NG: Replace door switch.
4. CHECK COMBINATION METER OUTPUT SIGNAL
   1. Connect combination meter connector.
   2. Check voltage between combination meter connector M19 terminals 6, 7 and ground.

      6 (P) - Ground: Approx. 5

      7 (W) - Ground: Approx. 5

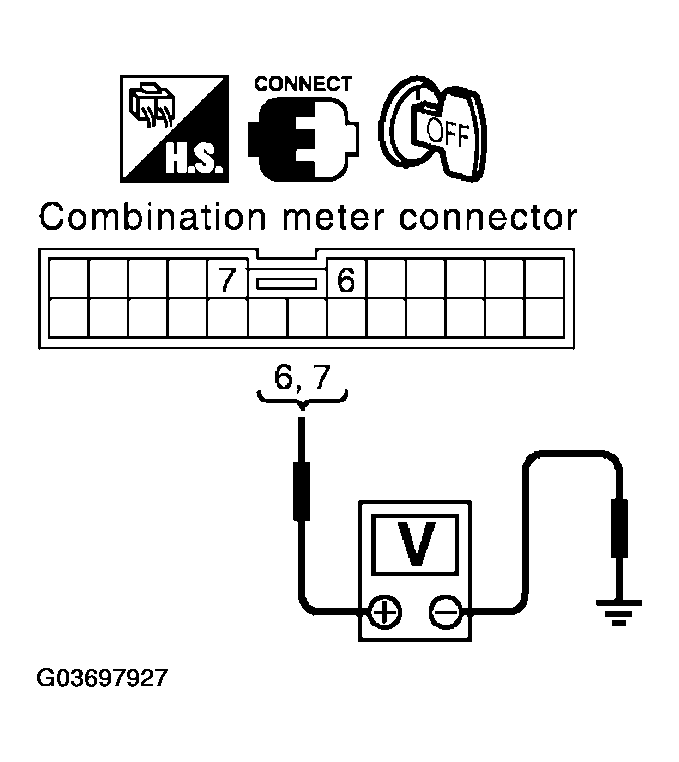

      Fig 6: Checking Combination Meter Output Signal Voltage

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: Check harness connection.
   2. NG: Replace combination meter.
