Check Key Switch

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEY SWITCH INPUT SIGNAL

With CONSULT-II

Check ignition key cylinder switch "KEY ON SW " in "DATA MONITOR" mode with CONSULT-II

When key is inserted in ignition key cylinder

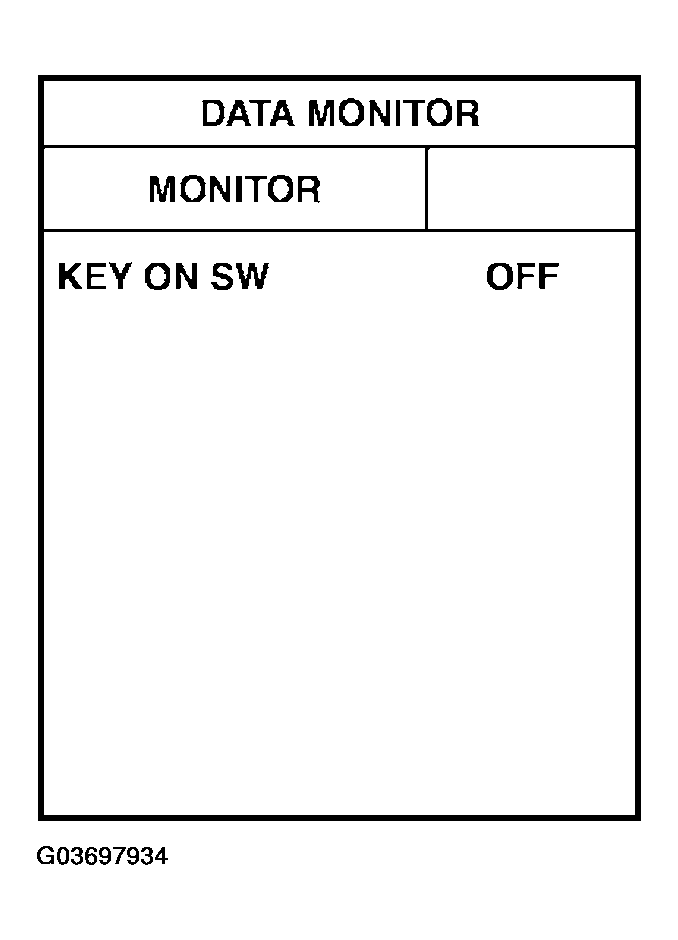

Fig 1: Checking Scan Tool Key Switch Input Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

KEY ON SW: ON
When key is removed from ignition key cylinder
KEY ON SW: OFF

Without CONSULT-II

Check voltage between BCM connector and ground.

TERMINALS AND REFERENCE VALUE SPECIFICATION

Connector	Terminals (Wire color)		Condition	Voltage [V] (Approx.)
Connector	(+)	(-)	Condition	Voltage [V] (Approx.)
M1	37 (B/P)	Ground	Key is inserted	Battery voltage
M1	37 (B/P)	Ground	Key is removed	0

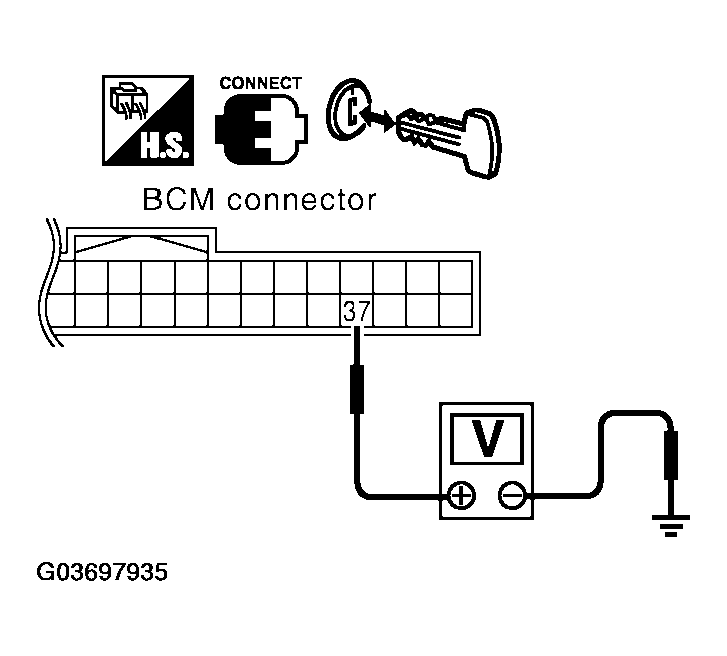

Fig 2: Checking Voltage Between BCM Connector & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: key switch circuit is OK
NG: GO TO 2.

CHECK KEY SWITCH

Disconnect key switch connector.

Check continuity between key switch terminals 1 and 2.

TERMINALS SPECIFICATION

Connector	Terminals		Condition	Continuity
M25	1	2	Key is inserted	Yes
M25	1	2	Key is removed	No

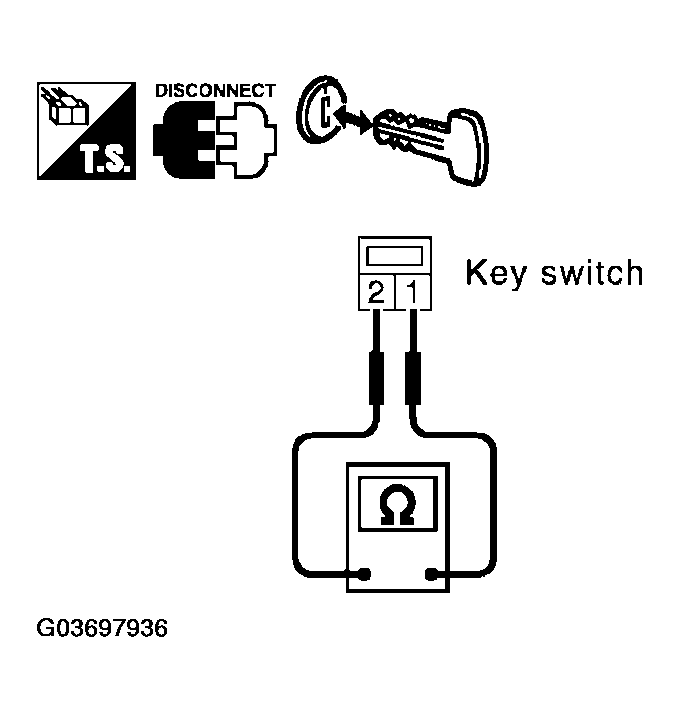

Fig 3: Checking Continuity Between Key Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the following.
- 10A fuse [No. 21, located in fuse block (J/B)]
- Harness for open or short between key switch and fuse
- Harness for open or short between BCM and key switch
NG: Replace key switch.
