"Multi Remote ENT": Notes

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

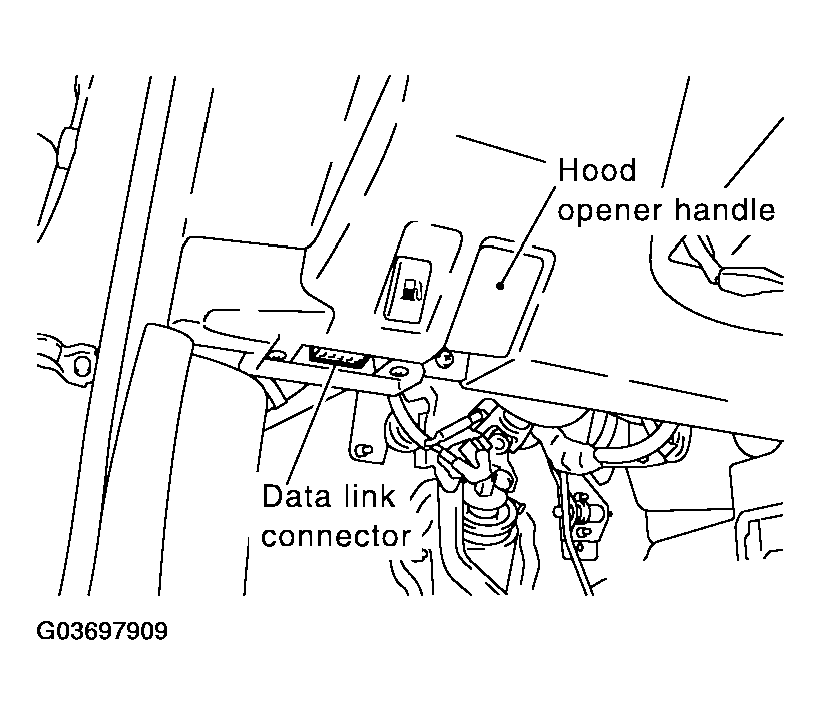

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START(NISSAN BASED VHCL)".

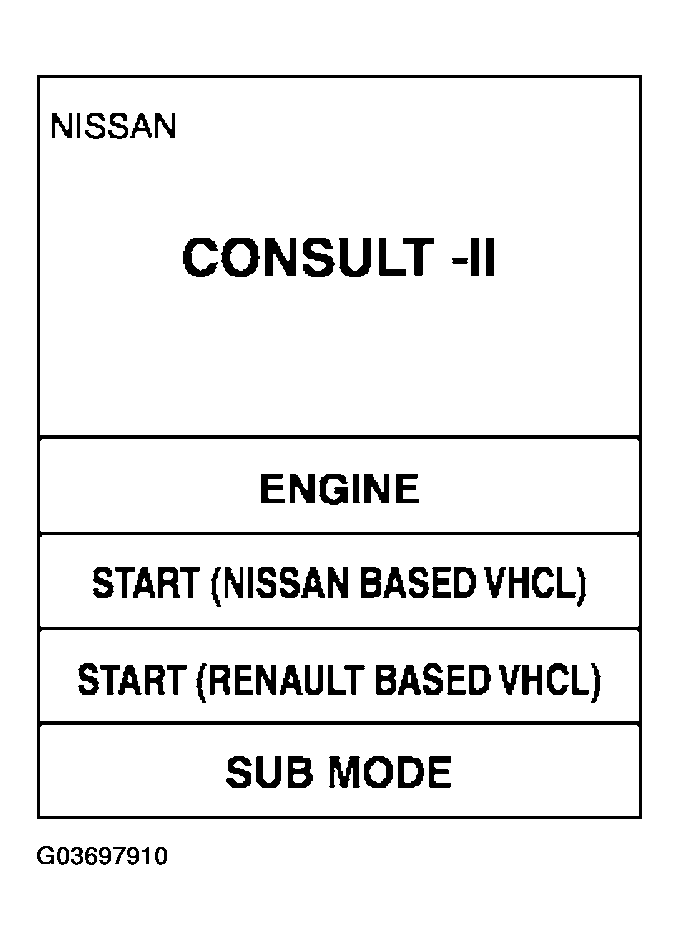

Fig 2: Identifying Scan Tool Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT

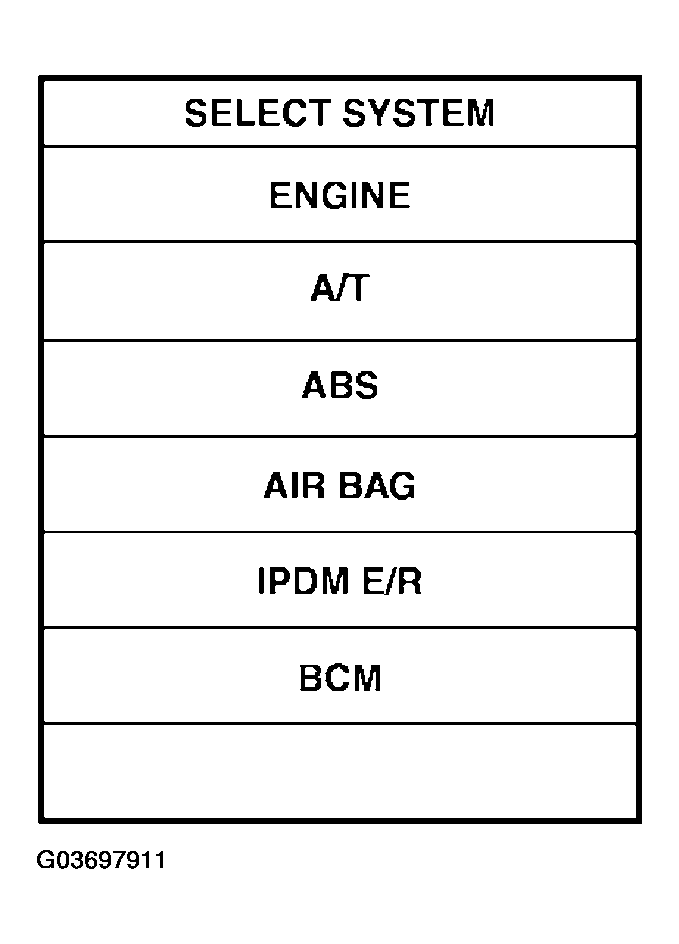

Fig 3: Identifying Scan Tool Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

Fig 4: Identifying Scan Tool Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"WORK SUPPORT", "DATA MONITOR" and "ACTIVE TEST" are available.

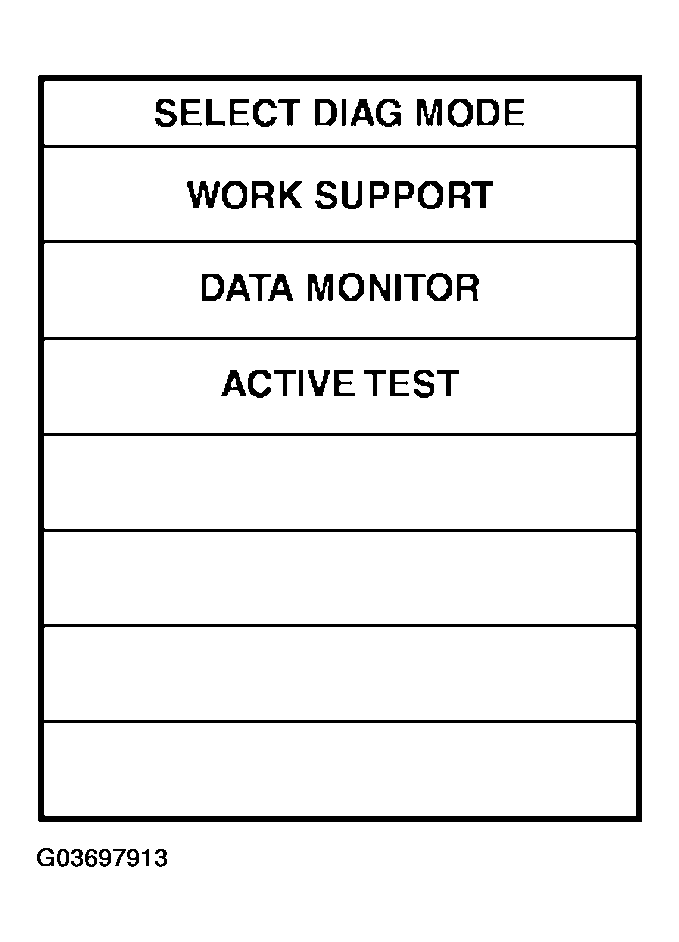

Fig 5: Identifying Scan Tool Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
