Remote Keyless Receiver Check

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MULTI-REMOTE CONTROL RECEIVER INPUT VOLTAGE
1. Remove key from ignition key cylinder.
2. Check signal between remote keyless receiver connector and ground with oscilloscope.

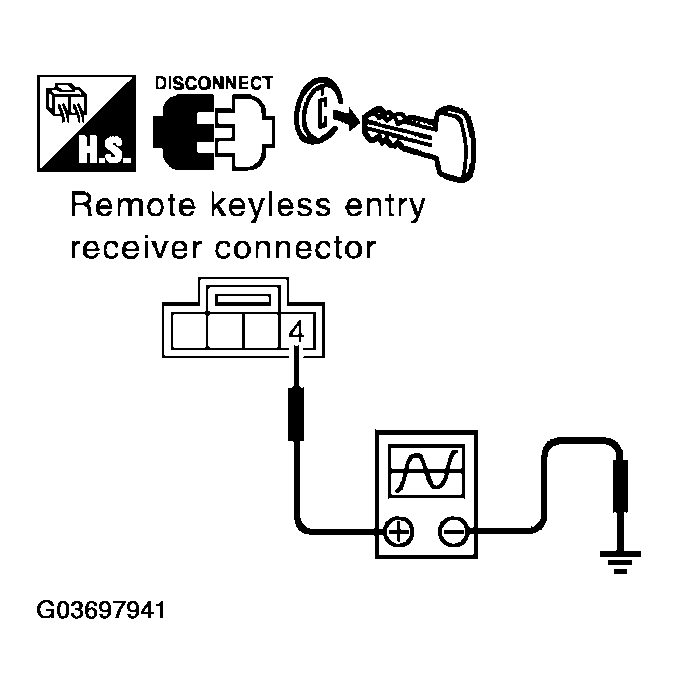

  Fig 1: Checking Multi-Remote Control Receiver Input Voltage (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

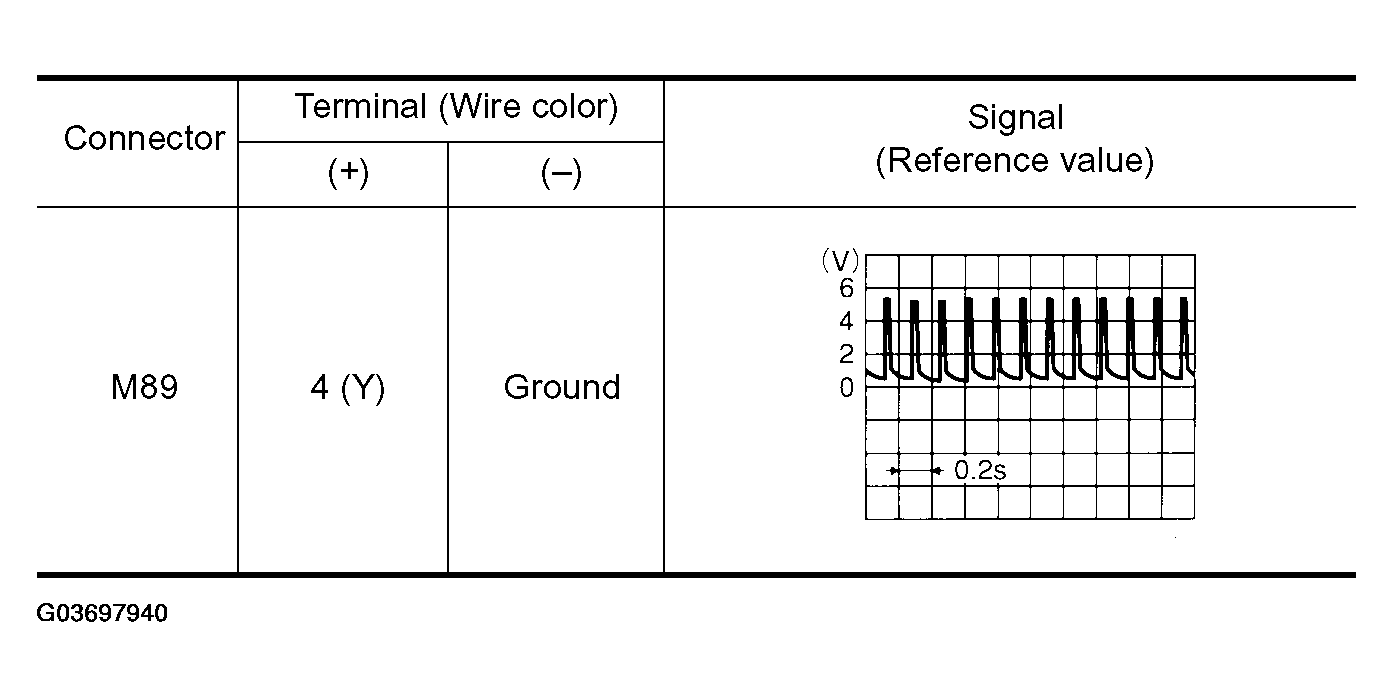

  Fig 2: Checking Multi-Remote Control Receiver Input Voltage Signal (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3 .
2. NG: GO TO 2.
CHECK REMOTE KEYLESS RECEIVER HARNESS
1. Turn ignition switch OFF.
2. Disconnect remote keyless receiver and BCM connector.
3. Check continuity between remote keyless receiver connector M89 terminal 4 and BCM connector M1 terminal 19.
  4 (Y) - 19 (Y): Continuity should exist .
4. Check continuity between remote keyless receiver connector M89 terminal 4 and ground.
  4 (Y) - Ground: Continuity should not exist .

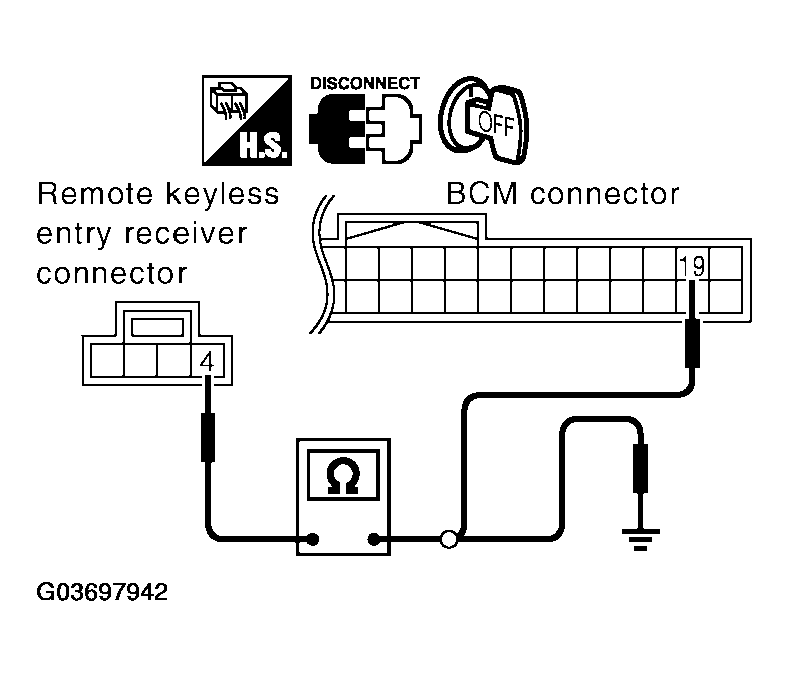

  Fig 3: Checking Continuity Between Remote Keyless Receiver Connector M89 Terminal 4 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Check harness connection.
2. NG: Repair or replace the harness.
CHECK REMOTE KEYLESS RECEIVER
1. Turn ignition switch OFF.
2. Disconnect remote keyless receiver and BCM connector.
3. Check continuity between remote keyless receiver connector M89 terminal 1 and BCM connector M1 terminal 18.
  1 (B) - 18 (B): Continuity should exist .
4. Check continuity between remote keyless receiver connector M89 terminal 1 and ground.
  1 (B) - Ground: Continuity should not exist .

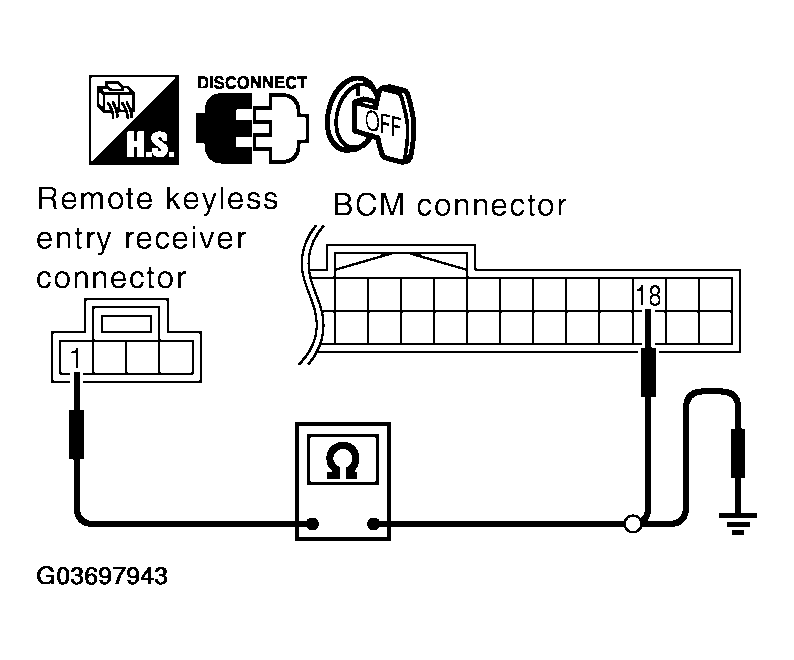

  Fig 4: Checking Continuity Between Remote Keyless Receiver Connector M89 Terminal 1 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace the harness.
CHECK REMOTE KEYLESS RECEIVER OUTPUT SIGNAL
1. Connect remote keyless receiver connector.
2. Check signal BCM connector and ground with oscilloscope.

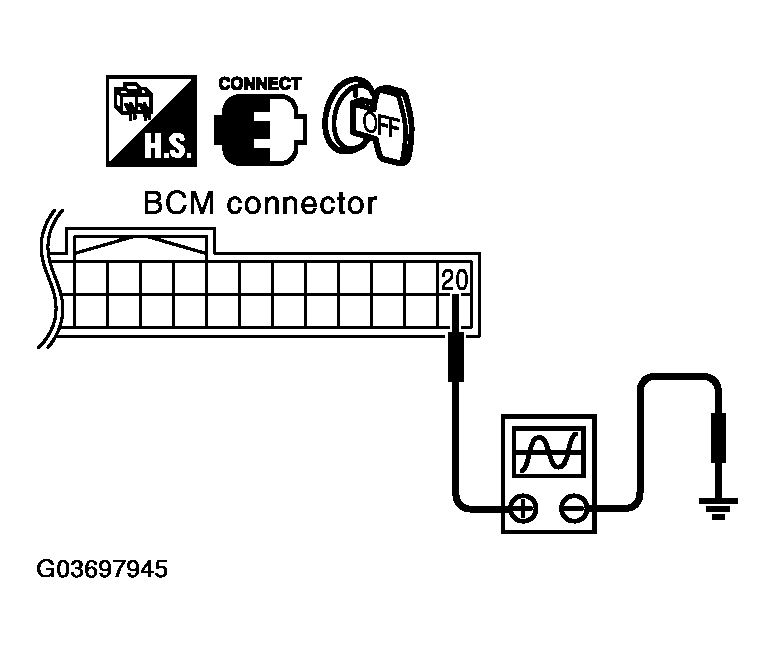

  Fig 5: Checking Remote Keyless Receiver Output Signal (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

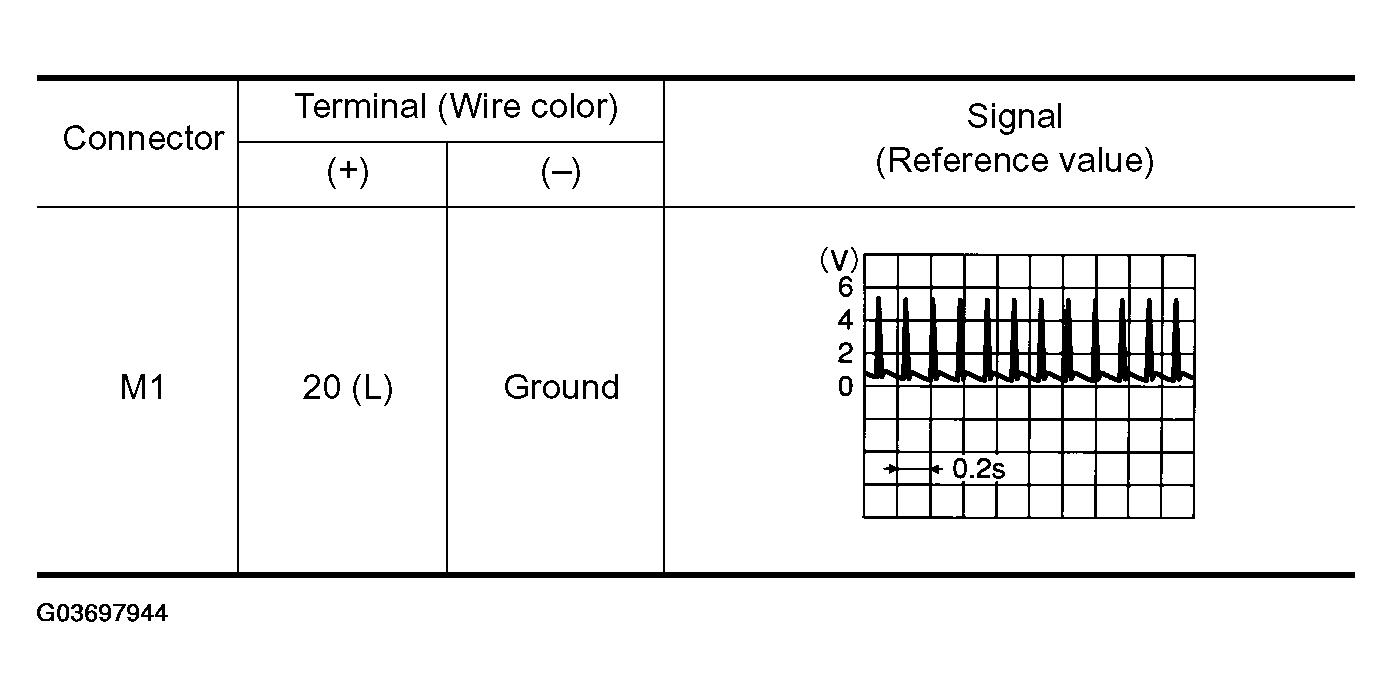

  Fig 6: Checking Remote Keyless Receiver Output Signal (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace BCM.
2. NG: GO TO 5.
CHECK REMOTE KEYLESS RECEIVER HARNESS
1. Disconnect remote keyless receiver and BCM connector.
2. Check continuity between remote keyless receiver connector M89 terminal 2 and BCM connector M3 terminal 20.
  2 (L) - 20 (L): Continuity should exist .
3. Check continuity between remote keyless receiver connector M89 terminal 2 and ground.
  2 (L) - Ground: Continuity should not exist .

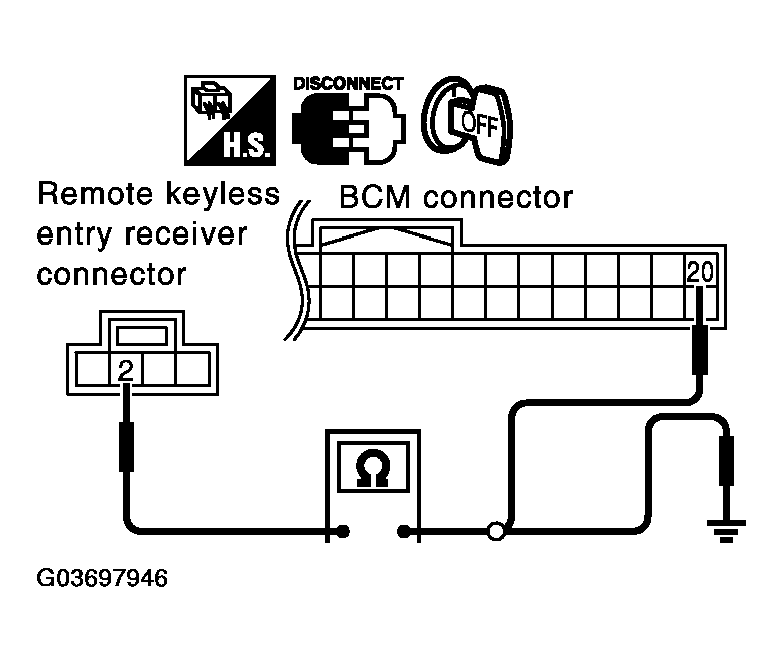

  Fig 7: Checking Remote Keyless Receiver Harness Continuity
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace remote keyless receiver.
2. NG: Repair or replace the harness.
