Checking Equipment

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

When ordering the following equipment, contact your NISSAN/INFINITI distributor.

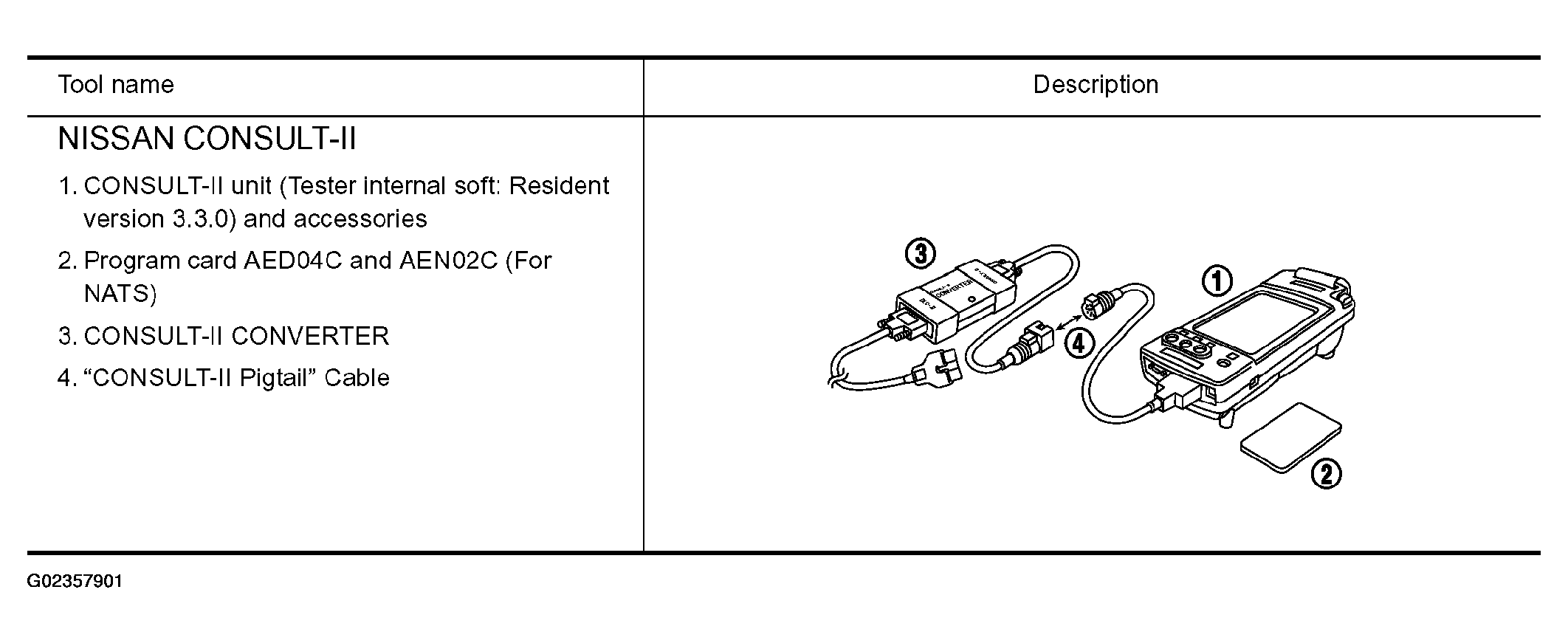

Fig 1: Identifying CONSULT-II Converter
G02357901Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The CONSULT-II must be used in conjunction with a program card.

    CONSULT-II does not require loading (Initialization) procedure.

  • Be sure the CONSULT-II is turned off before installing or removing a program card.
CAUTION:
  • If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  • If CONVERTER is not connected with CONSULT-II, vehicle occur the "FAIL SAFE MODE" which is "LIGHT UP the HEAD LIGHT" and/or "COOLING FAN ROTATING" when CONSULT-II is started.
  • Previous CONSULT-II "I" and "Y" DLC-I and DLC-II cables should NOT be used anymore because their DDL connector pins can be damaged during cable swapping.
