CAN Communication Unit: Notes
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Go to CAN system, when selecting your CAN system type from the following table.
BODY TYPE SPECIFICATION
| Body type | Sedan | |||||
|---|---|---|---|---|---|---|
| Axle | 2WD | AWD | ||||
| Engine | VQ35DE | |||||
| Transmission | M/T | A/T | ||||
| Brake control | VDC | |||||
| Intelligent Key system | x | x | ||||
| Automatic drive positioner | x | x | x | |||
| CAN system type | 1 | 2 | 3 | 4 | 5 | 6 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) LAN-62 | CAN SYSTEM (TYPE 4) LAN-76 | CAN SYSTEM (TYPE 5) LAN-93 | CAN SYSTEM (TYPE 6) |
| x: Applicable | ||||||
NOTE:
Confirming the presence of the following items helps to identify CAN system type.

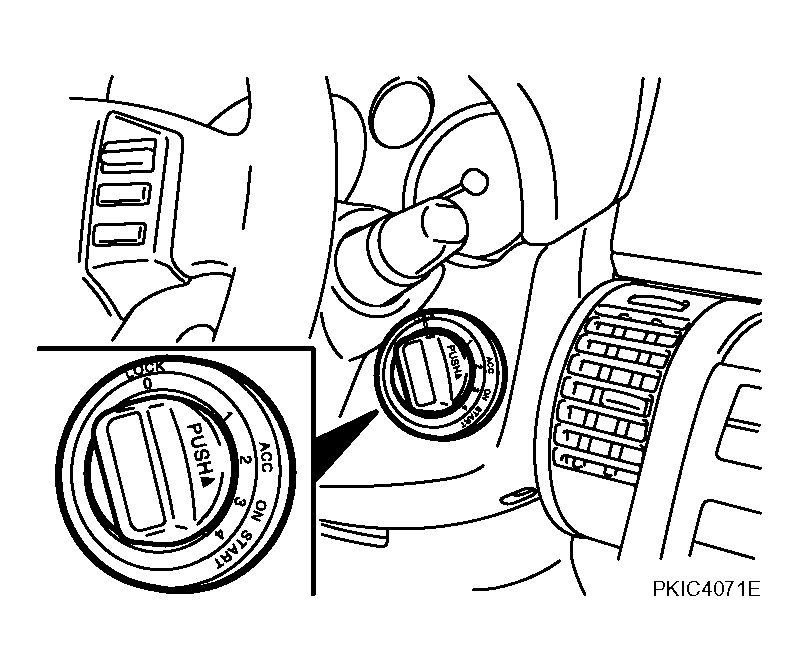

- Models with Intelligent Key system

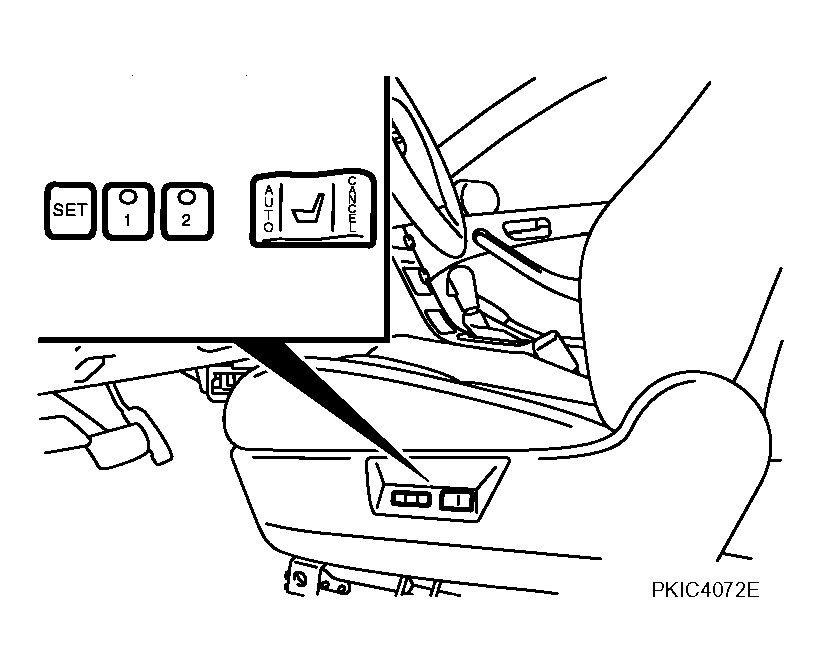

- Models with automatic drive positioner
