Wiring Diagram - KEYLES -

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS article.

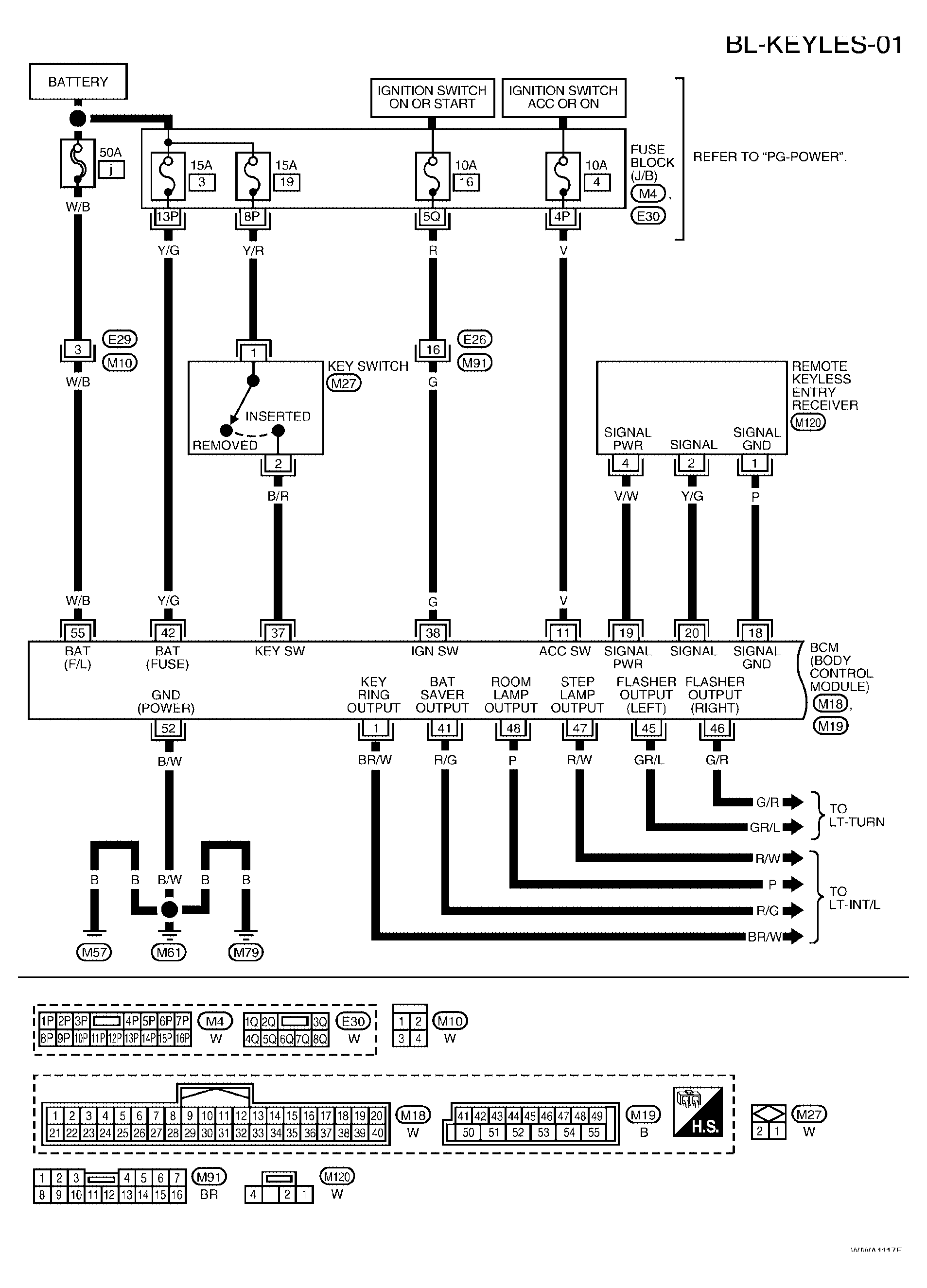

Fig 1: BL-KEYLES-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

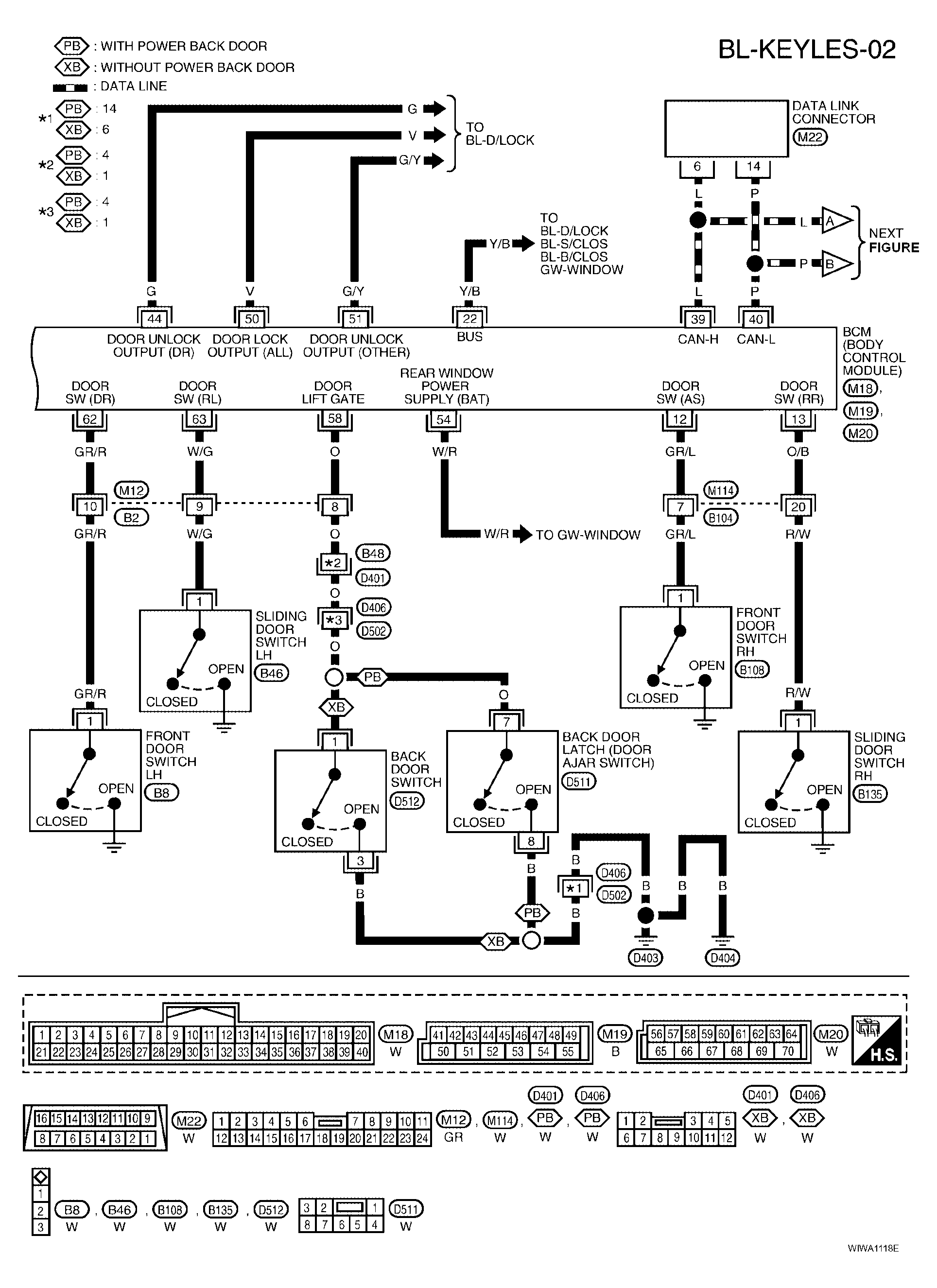

Fig 2: BL-KEYLES-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

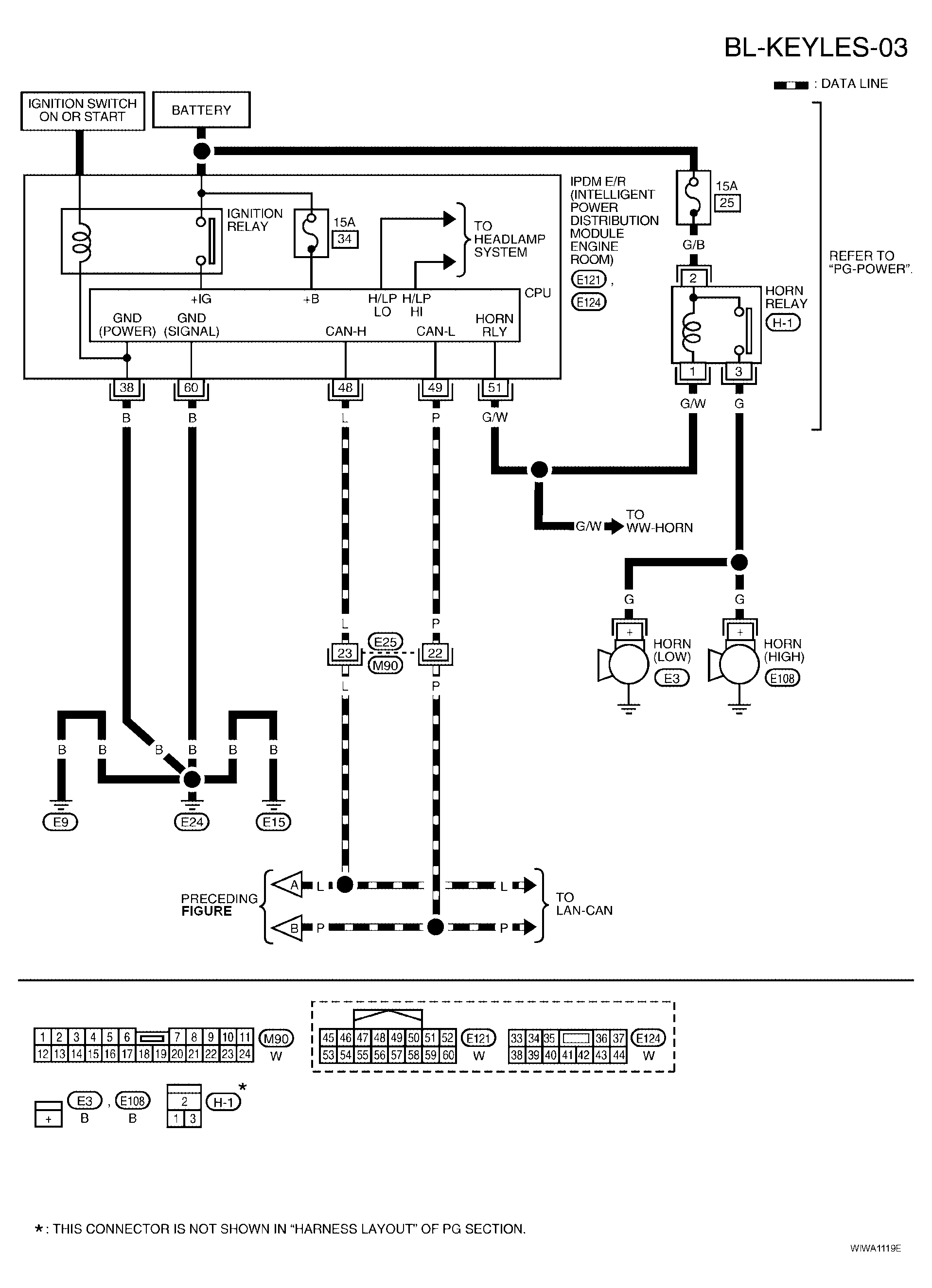

Fig 3: BL-KEYLES-03 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
