Frame Component Parts
WARNING:
This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

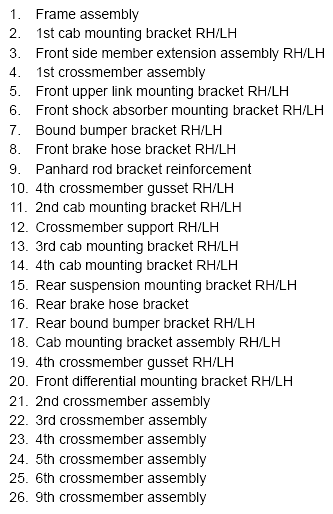

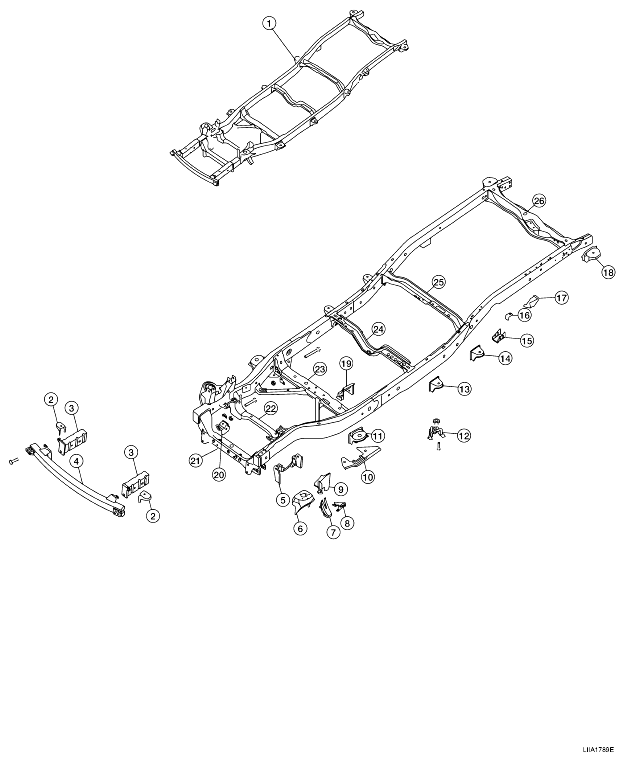

Fig 1: Identifying Frame Component Parts (1 Of 2)
Fig 2: Identifying Frame Component Parts (2 Of 2)
