ASCD Steering Switch

WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

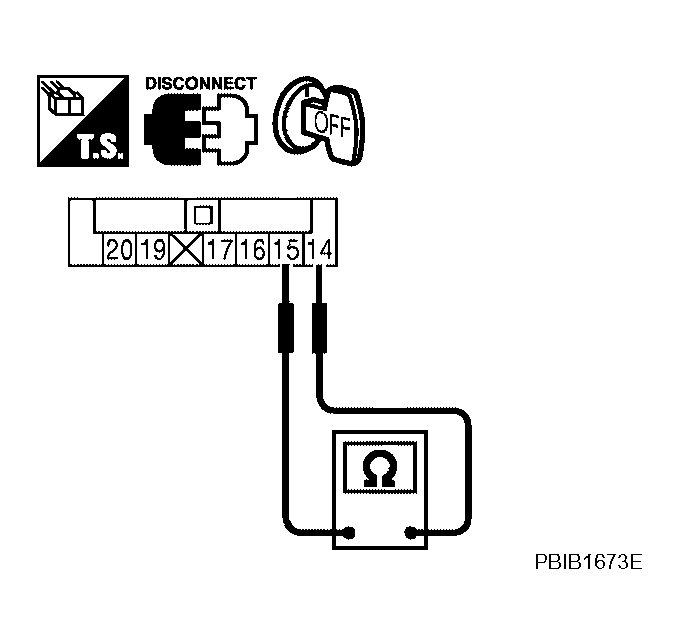

    Fig 1: Checking Continuity Between Combination Switch Terminals 14 And 15
    G04185498Courtesy of NISSAN MOTOR CO., U.S.A.
    RESISTANCE CHART

    Switch Condition Resistance [Ω]
    MAIN switch Pressed Approx. 0
    Released Approx. 4, 000
    CANCEL switch Pressed Approx. 250
    Released Approx. 4, 000
    RESUME/ACCELERATE switch Pressed Approx. 1, 480
    Released Approx. 4, 000
    SET/COAST switch Pressed Approx. 660
    Released Approx. 4, 000
