4. Check Automatic Drive Positioner Control Unit Output Signal

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Connect the automatic drive positioner control unit and pedal adjusting motor.
Check voltage between automatic drive positioner control unit connector and ground.

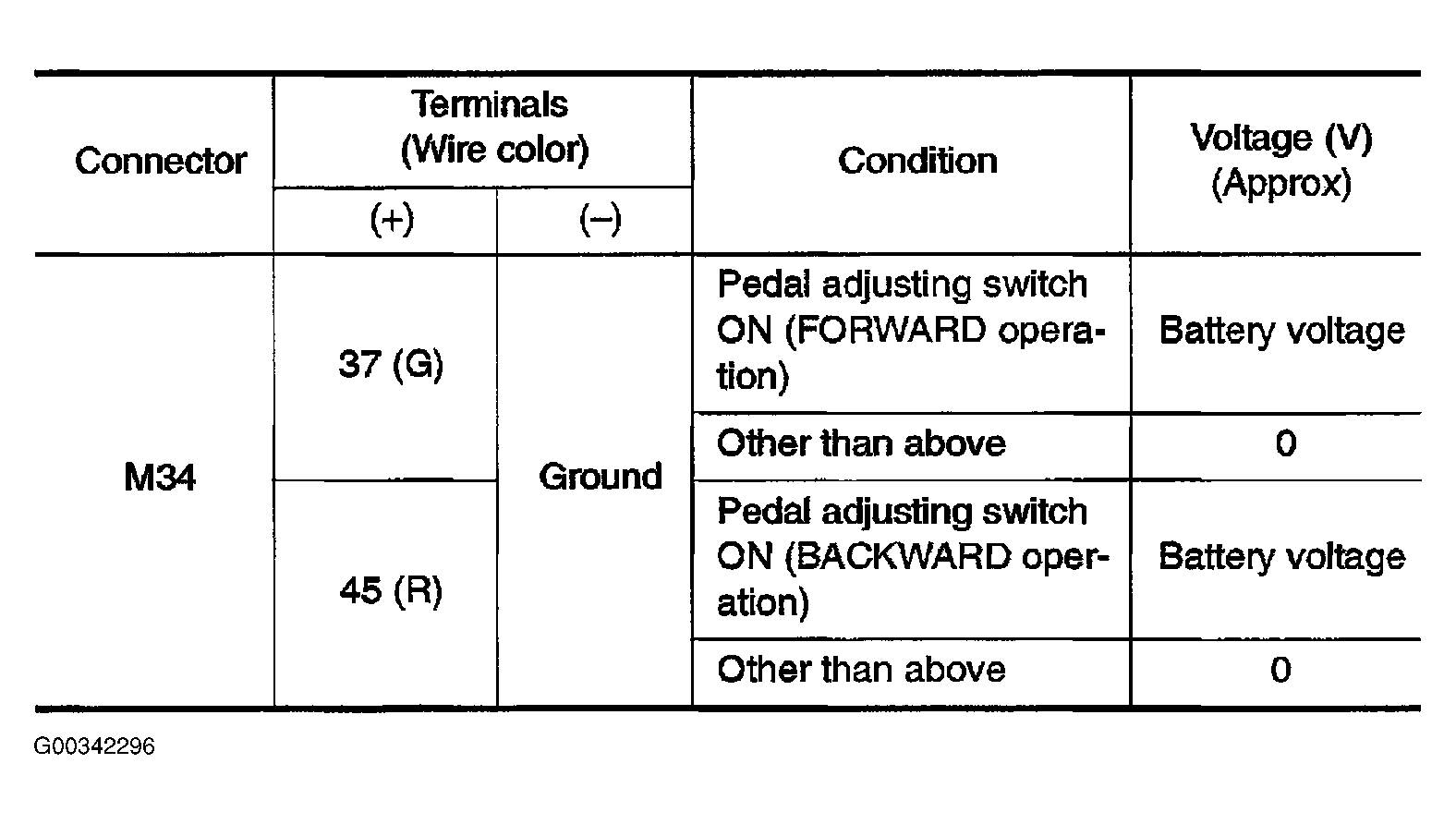

Fig 1: Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

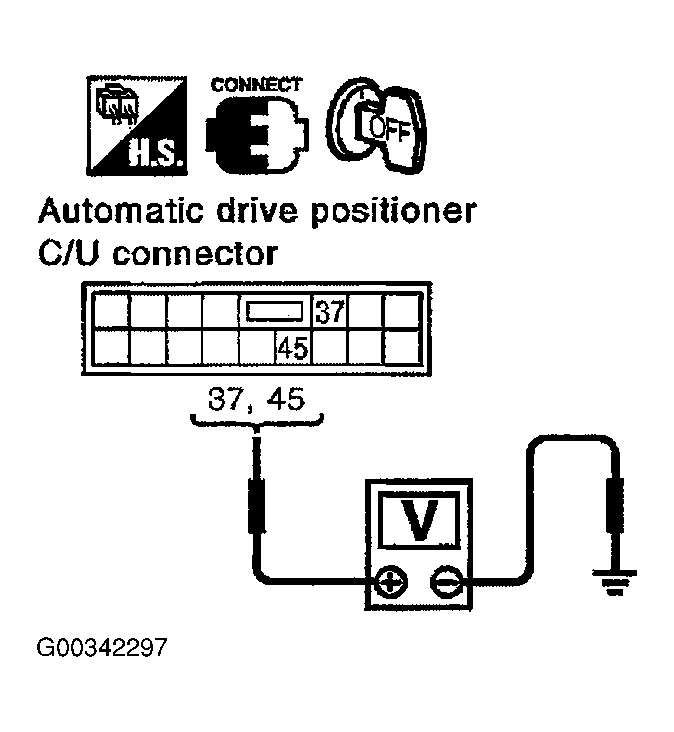

Fig 2: Checking Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Replace pedal adjusting motor.
NG >> Replace automatic drive positioner control unit.
