4. Check Seat Memory Switch Ground Circuit

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between seat memory switch D5 terminal 4 and ground.

4 (B) - Ground : Continuity should exist.

OK or NG

OK >> Replace automatic drive positioner control unit.
NG >> Repair or replace harness.

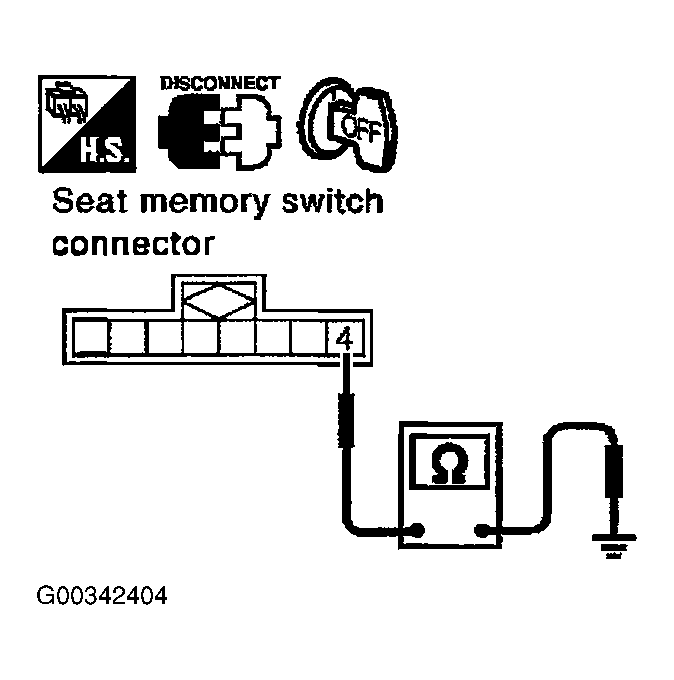

Fig 1: Checking Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.
